FRONT AXLE
M6060, M7060, WSM
5-S10

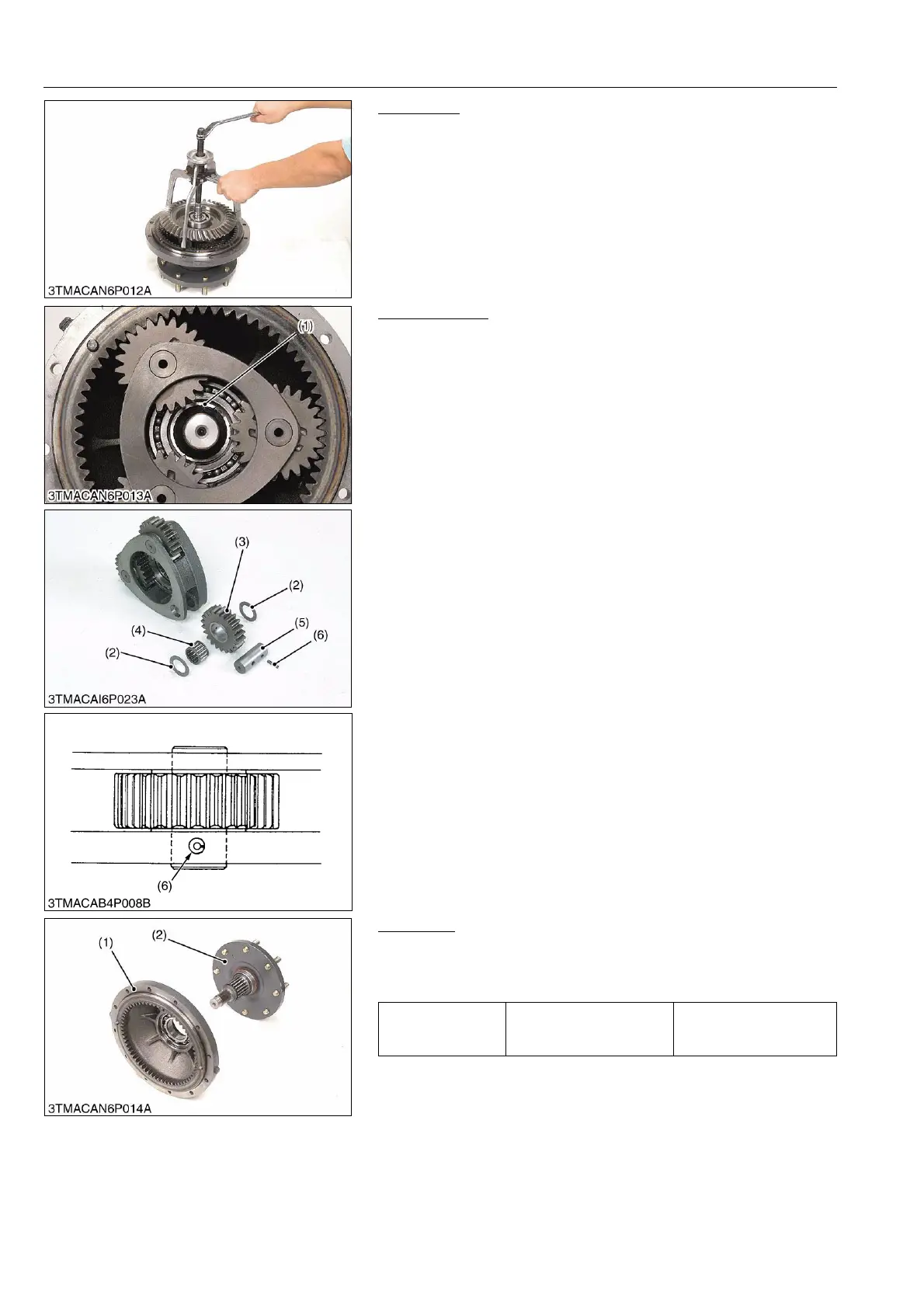

Bevel Gear
1. Remove the bevel gear and bearing with a puller.
9Y1210828FAS0016US0
Planetary Gear
1. Remove the external circlip (1).
2. Remove the planetary gear support assembly.
3. Tap the roll pin (6) into the planetary gear shaft (5).
4. Draw out the planetary gear shaft (5), and remove the planetary
gear (3).
5. Tap out the roll pin (6) from the planetary gear shaft (5).
(When reassembling)
• Apply transmission fluid to the needle bearing (4).
• Tap in the roll pin (6) as shown in the figure left.
• Replace the external circlip (1) with new one.
9Y1210828FAS0017US0
Front Axle
1. Tap out the front axle (2) from front wheel case cover (1).
(When reassembling)
• Apply grease to the front axle oil seal.
9Y1210828FAS0018US0
(1) External Circlip
(2) Thrust Collar
(3) Planetary Gear
(4) Needle Bearing
(5) Planetary Gear Shaft
(6) Roll Pin
Tightening torque
Front wheel mounting stud
bolt (M16)
131 to 152 N·m
13.3 to 15.5 kgf·m
96.2 to 112 lbf·ft
(1) Front Wheel Case Cover (2) Front Axle
KiSC issued 08, 2013 A
