FRONT AXLE
M6060, M7060, WSM
5-S13
LSD Disk and Steel Plate
1. Draw out the LSD side gear (4), LSD shim (5), steel plates (3),
LSD disks (6) and belleville washers (cupped spring washer)
(2).
(When reassembling)
• Apply transmission fluid to the LSD disks.
• Apply molybdenum disulfide (Three Bond 1901 or equivalent) to
side gear and shim.
• Assemble the belleville washers (cupped spring washer) as
shown in the figure.
• Check the slip torque of LSD after assembling. (See page
5-S18.)
9Y1210828FAS0023US0

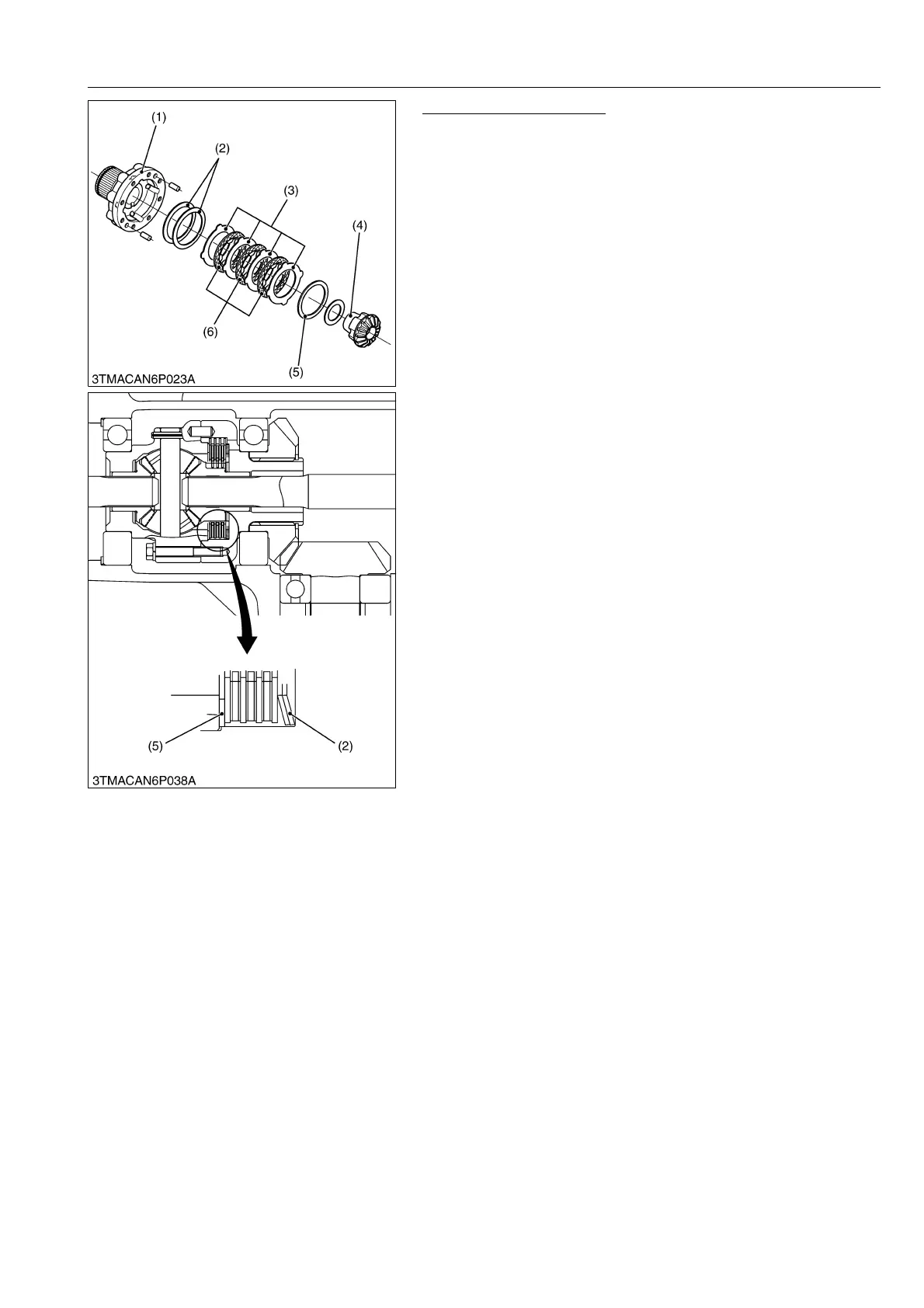

(1) Differential Case Cover
(2) Belleville Washer (Cupped Spring
Washer)
(3) Steel Plate
(4) LSD Side Gear
(5) LSD Shim
(6) LSD Disk
