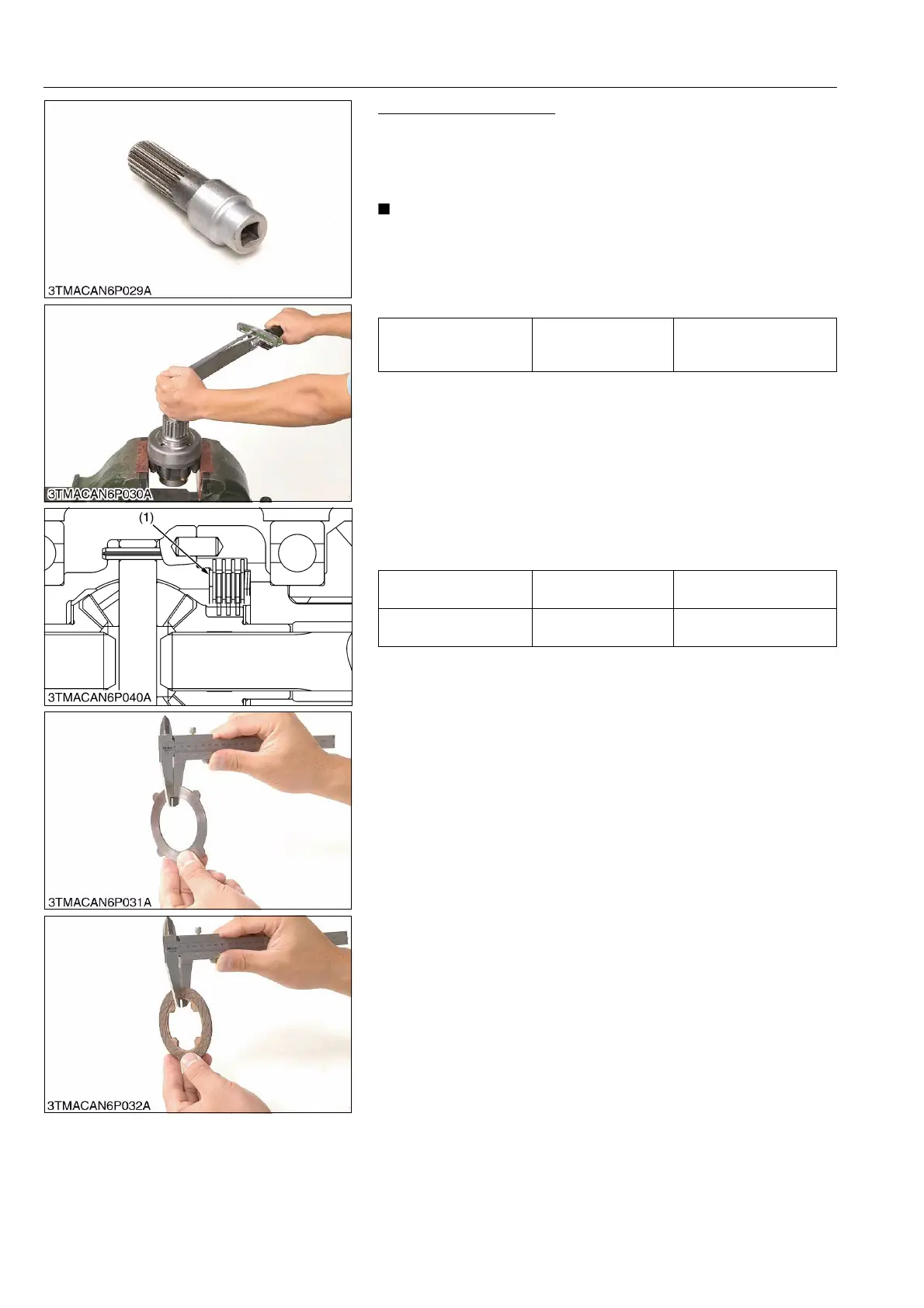

Slip Torque of LSD Disk
1. Set the differential assembly on the vice securely.
2. Check the LSD slip torque using a jig as shown in the photo.
3. If the LSD slip torque is not within the factory specification,
adjust with LSD shim (1).
• When measuring the slip torque for LSD, apply ample
lubricant to the LSD disk.
• Turn the LSD side gear using a jig clockwise and
counterclockwise each direction several times to mesh the
LSD disk and steel plate.
(Reference)
• Jig in the photo is : Spline from yoke shaft and welded with box
wrench. (See page G-76.)
• Thickness of LSD shim :
0.1 mm (0.004 in.) [Code No.: 35533-43010]
0.2 mm (0.008 in.) [Code No.: 35533-43020]
0.4 mm (0.016 in.) [Code No.: 35533-43030]
0.8 mm (0.032 in.) [Code No.: 35533-43040]
1.0 mm (0.039 in.) [Code No.: 35533-43050]
1.2 mm (0.047 in.) [Code No.: 35533-43060]
• Slip torque changes per 0.1 mm (0.004 in.) shim :
Approx. 5 to 6 N·m (0.5 to 0.7 kgf·m, 4 to 5 lbf·ft)
9Y1210828FAS0030US0
LSD slip torque Factory specification
54 to 67 N·m
5.5 to 6.9 kgf·m
40 to 49 lbf·ft
Thickness of steel plate Factory specification
1.32 to 1.48 mm
0.0520 to 0.0582 in.
Thickness of LSD disk Factory specification
2.55 to 2.65 mm
0.101 to 0.104 in.
(1) Shim
