FRONT AXLE
M6060, M7060, WSM
5-S19
Front Bracket and Rear Bracket Bushing

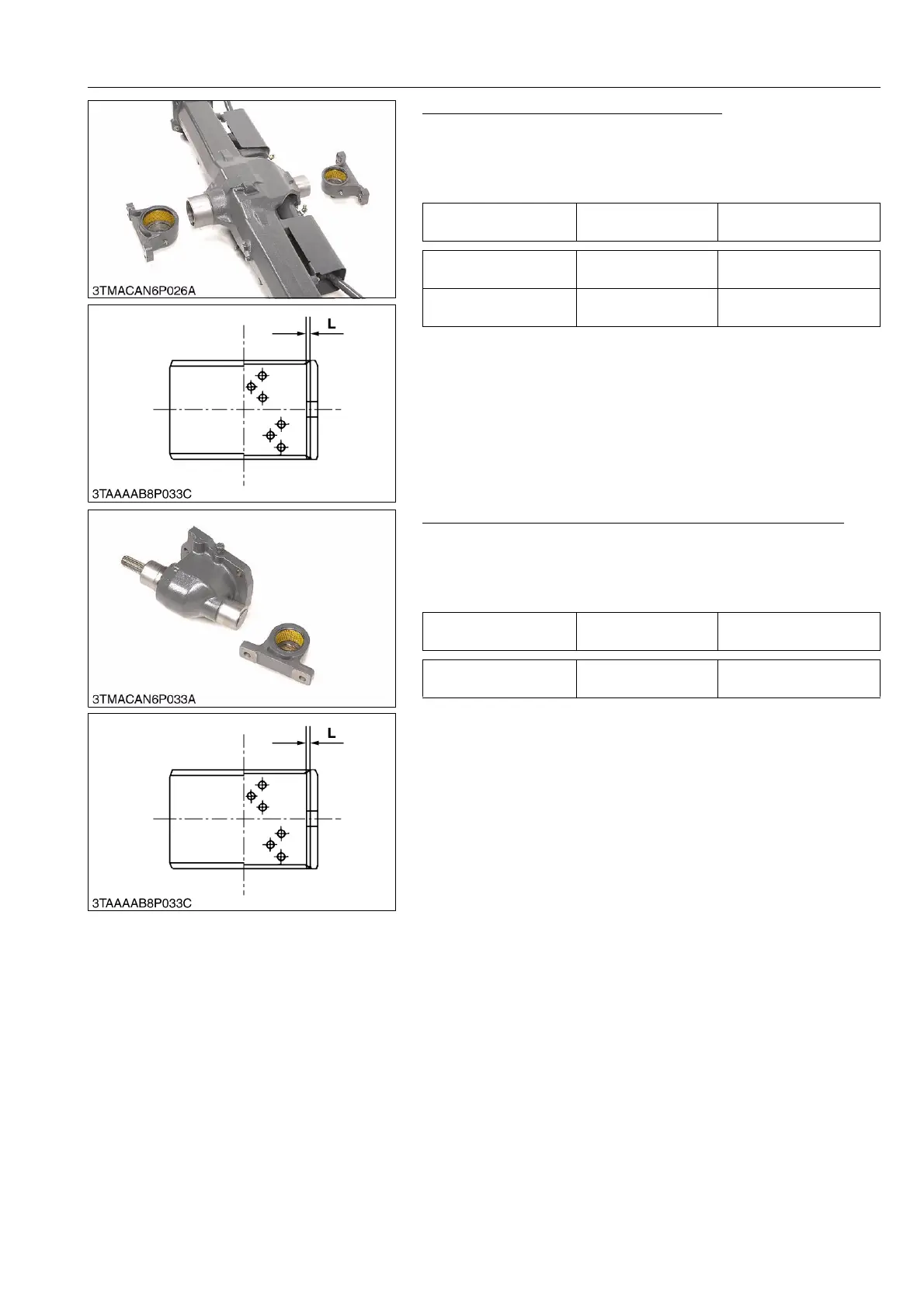

1. Visually inspect the DX bushings for signs of wear or damage.
(The DX bushing tends to show concentrated wear.)
2. If the DX bushing is worn beyond the alloy portion "L", replace
it.
9Y1210828FAS0031US0
Bearing Retainer and Front Wheel Case Support Bushing
1. Visually inspect the DX bushings for signs of wear or damage.
(The DX bushing tends to show concentrated wear.)
2. If the DX bushing is worn beyond the alloy portion "L", replace
it.
9Y1210828FAS0032US0
Front bracket and rear
bracket bushing
Alloy thickness "L"
0.57 mm
0.022 in.
Rear differential case
boss O.D.
Factory specification
109.965 to 110.000 mm
4.32933 to 4.33070 in.
Front differential case
boss O.D.
Factory specification
79.965 to 80.000 mm
3.1483 to 3.1496 in.
Front wheel case support
bushing
Alloy thickness "L"
0.57 mm
0.022 in.
Bearing retainer O.D. Factory specification
59.97 to 60.00 mm
2.361 to 2.362 in.
