wsm M7060 - Page 463

HYDRAULIC SYSTEM
M6060, M7060, WSM
7-S22

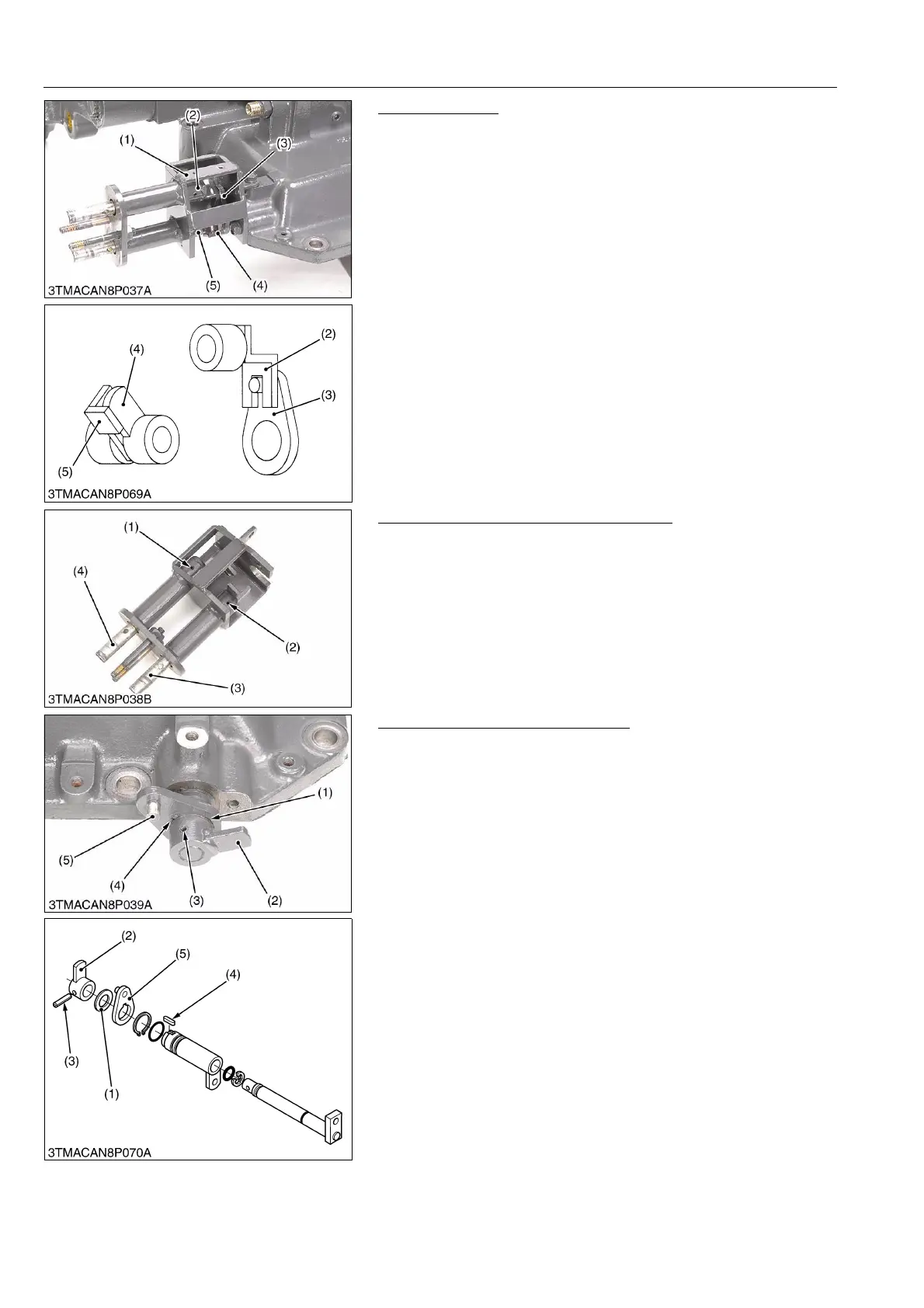

Linkage Bracket
1. Remove the bracket (1).
(When reassembling)
• Be sure to assemble the position lever 2 (5) and 3 (4) as shown
in figure.
• Be sure to assemble the draft link cam 2 (2) and draft lever 3 (3)
as shown in figure.
9Y1210828HYS0022US0
Draft Lever Rod and Position Lever Rod
1. Tap out the roll pin (1) and (2).
2. Draw out the rod (3) and (4).
(When reassembling)
• Apply grease to the bushes.
9Y1210828HYS0023US0
Draft Lever 3 and Position Lever 3
1. Tap out the roll pin (3).
2. Remove the position lever 3 (2), washer (1), draft lever 3 (5) and
key (4).
9Y1210828HYS0024US0
(1) Bracket
(2) Draft Link Cam 2
(3) Draft Lever 3
(4) Position Lever 3
(5) Position Lever 2
(1) Roll Pin
(2) Roll Pin
(3) Rod
(4) Rod
(1) Washer
(2) Position Lever 3
(3) Roll Pin
(4) Key
(5) Draft Lever 3
KiSC issued 08, 2013 A
