HYDRAULIC SYSTEM
M6060, M7060, WSM
7-S24
Position and Draft Control Shaft and Position and Draft
Feedback Shaft
1. Remove the position and draft feedback rod (6) and (5).
2. Remove the external circlip (1) then draw out the position and
draft control shaft (4) and (2).
3. Remove the E-shaped stopper (3) then remove the position
feedback shaft (6) from draft feedback shaft (5) and remove the
position control shaft (4) from draft control shaft (2).
(When reassembling)
• Remove the O-ring (7) from position control shaft.
– Insert the position control shaft and draft control shaft to the
body until the both O-ring grooves comes out.
– Apply grease to the O-ring then assemble the O-ring from
outside.
– Fix the external circlip the draft control shaft then push back
the position control shaft with draft control shaft.
– Fix the E-shaped stopper (3).
• The feedback side same as control side.
9Y1210828HYS0027US0

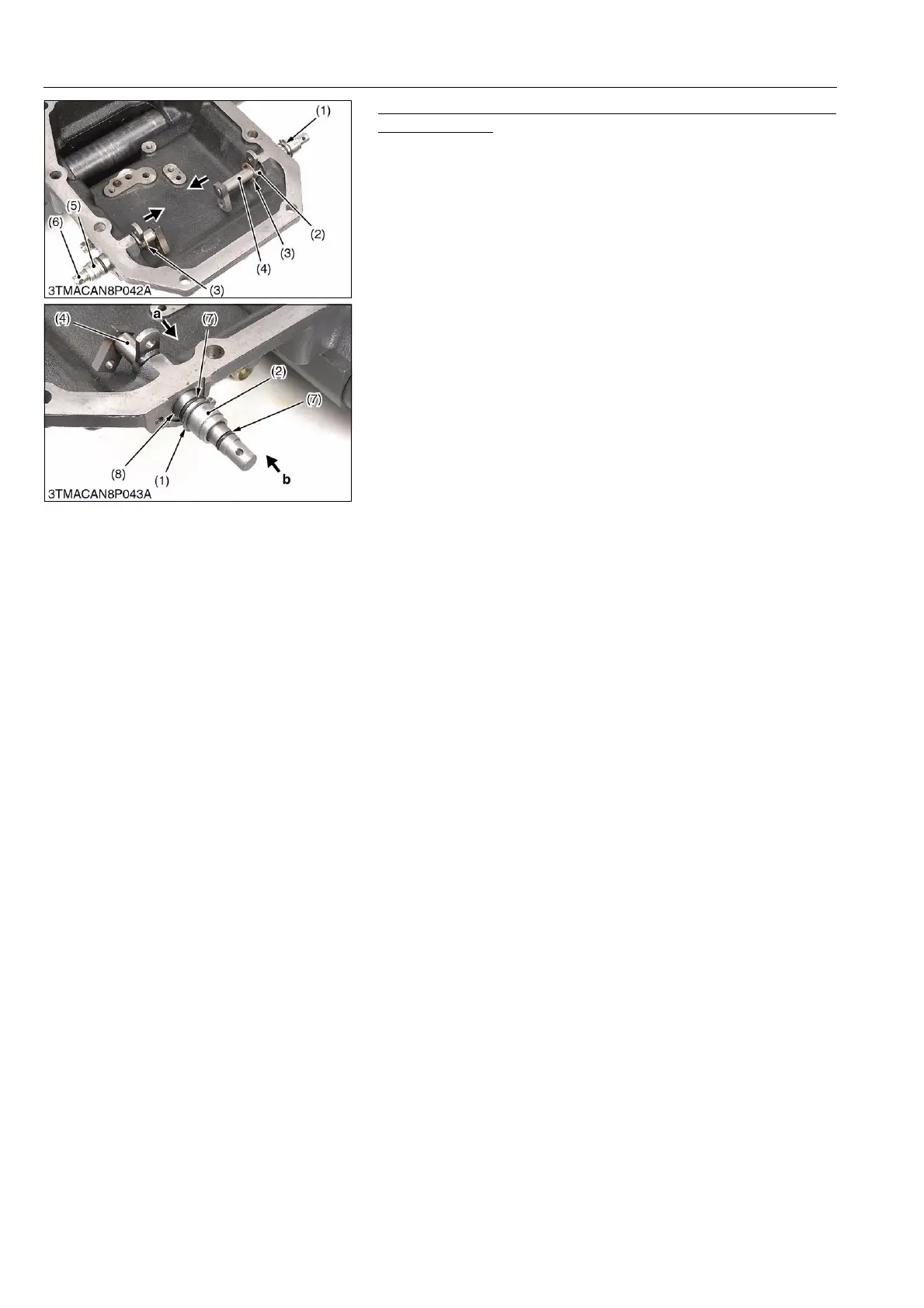

(1) External Circlip
(2) Draft Control Shaft
(3) E-shaped Stopper
(4) Position Control Shaft
(5) Draft Feedback Shaft
(6) Position Feedback Shaft
(7) O-ring
(8) Chamfer
a : To Fix O-rings
b : To Assemble Shafts
