ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S36

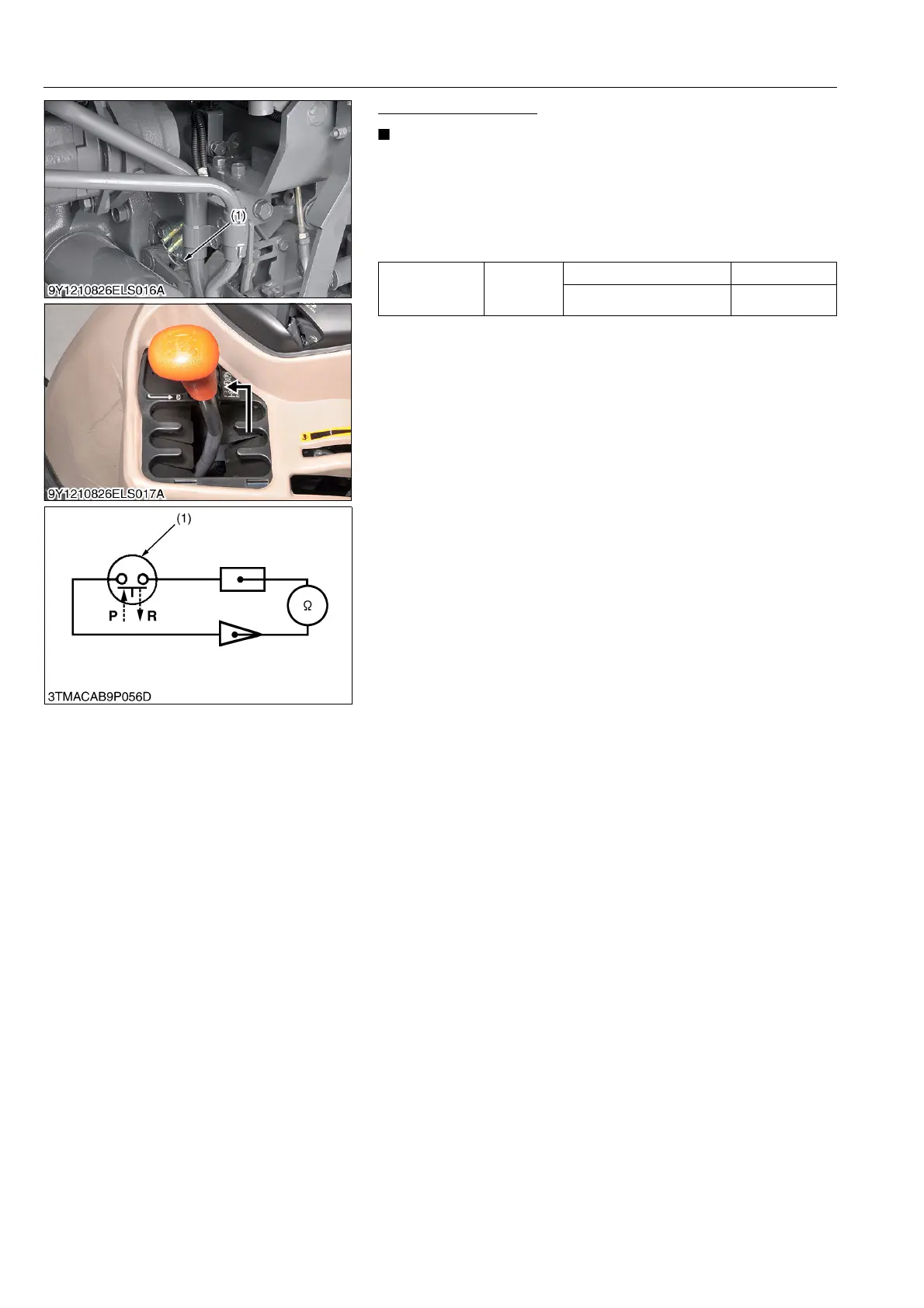

Parking Brake Switch
• If the main range gear is parking position, this switch is
pushed.
1. Remove the cover.
2. Disconnect the connector of parking brake switch.
3. Measure the resistance value of switch when the main range
gear is parking position.
9Y1210828ELS0059US0
Resistance
(Across switch
terminal)
Reference
value
When switch is pushed Infinity
When switch is released 0 Ω
(1) Parking Brake Switch P: Pushed
R: Released
To Next Page
