ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S37
Checking Fuel Level Sensor
1. Remove the fuel level sensor from the fuel tank.
2. Measure the resistance with an ohmmeter across the terminal a
and terminal b.
3. If the measurement is not indicated, the sensor is faulty.
9Y1210828ELS0060US0
Resistance
(Sensor terminal
a – terminal b)
Factory
specification
Float at uppermost
position
3.0 to 5.0 Ω
Float at lowermost
position
107.5 to 112.5 Ω

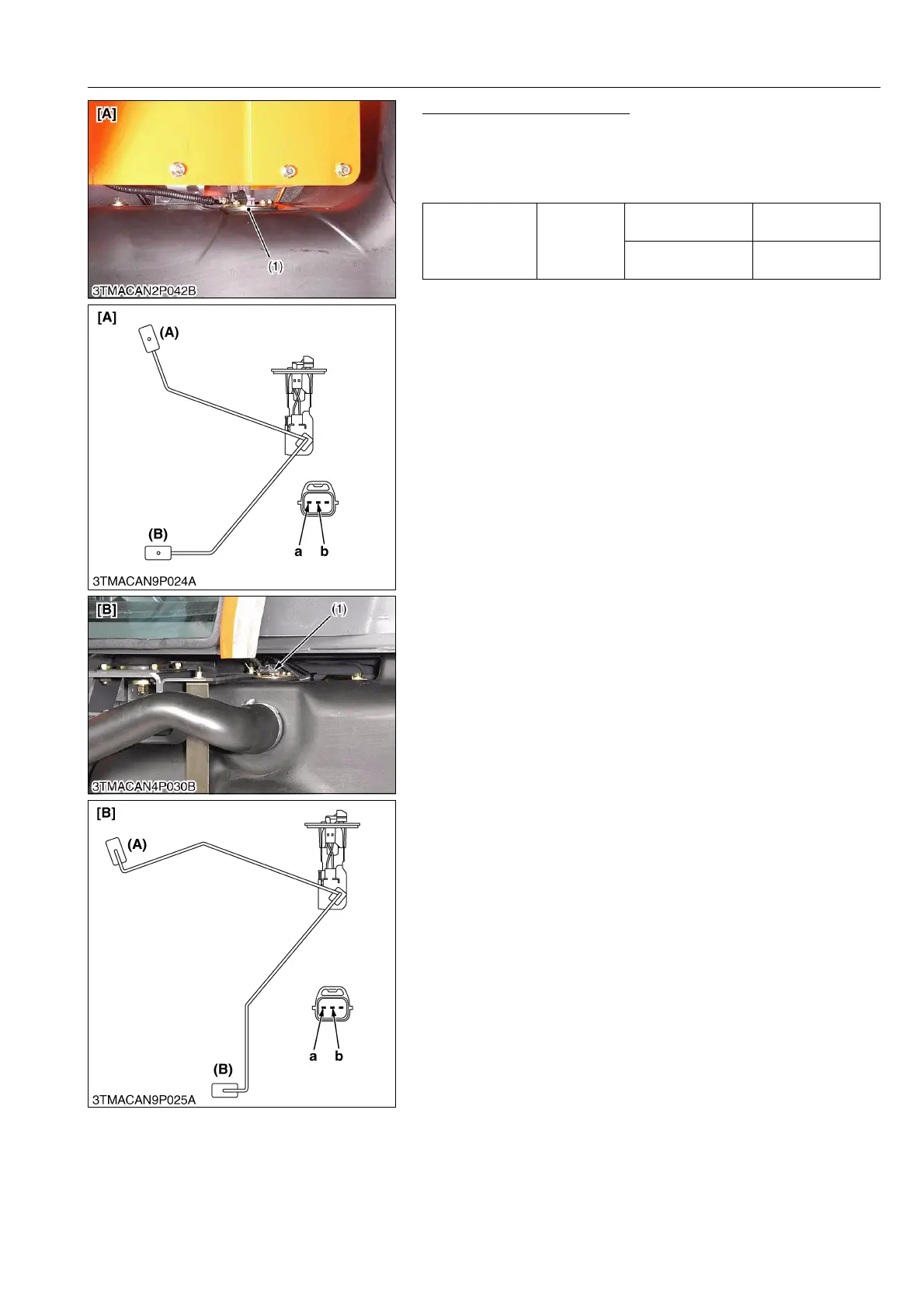

(1) Fuel Unit
[A] ROPS Model
[B] CABIN Model
(A) Float at Uppermost Position
(B) Float at Lowermost Position
a: Terminal 1
b: Terminal 2
To Next Page
