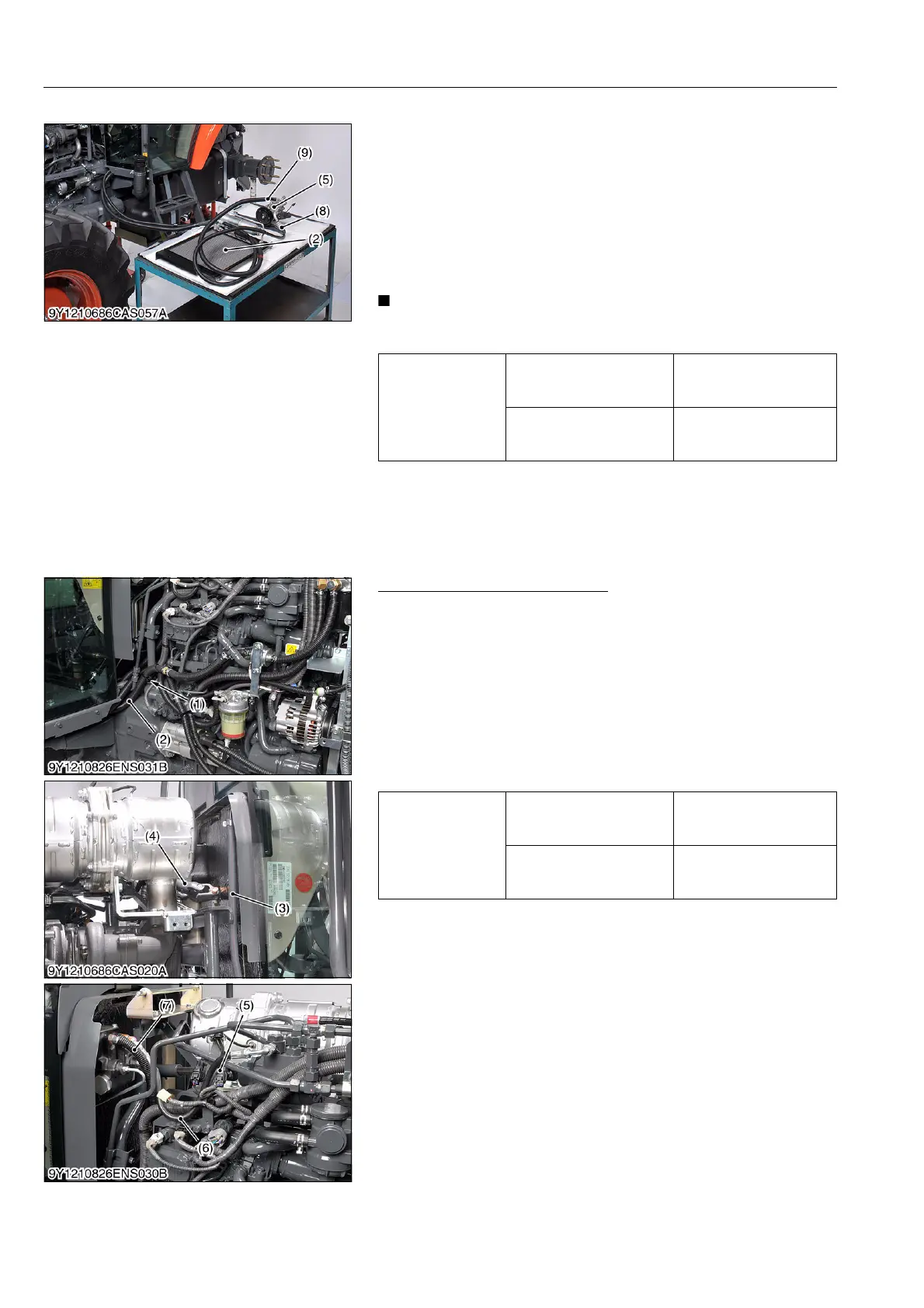

With discharge the refrigerant from system
1. See page 9-S18.
2. Disconnect the low pressure hose (8) and high pressure hose
(9) from compressor (5).
(When reassembling)
• Charge the refrigerator to the air conditioner system. (See page
9-S20.)
• Apply compressor oil (DENSO CO. ND-OIL8) to the O-rings and
be careful not to damage them.
• After removing the condenser, return the front wheel to
straight.
9Y1210828CAS0062US0
Hoses and Steering Joint Shaft
1. Remove the hose clamps (1).
2. Disconnect the heater hoses (2).
3. Disconnect the breather hose (3).
4. Remove the steering joint shaft mounting screw (5) then
disconnect the steering joint shaft (4) from steering joint.
5. Disconnect the master cylinder hose (6) and master cylinder
return hose (7).
(When reassembling)
• Be sure to fix the heater hose to the original position. Note the
inlet hose and outlet hoses.
9Y1210828CAS0063US0
Tightening torque
High pressure hose
mounting screw
7.9 to 11 N·m
0.80 to 1.2 kgf·m
5.8 to 8.6 lbf·ft
Low pressure hose
mounting screw
7.9 to 11 N·m
0.80 to 1.2 kgf·m
5.8 to 8.6 lbf·ft
(1) Screw 1
(2) Condenser
(3) Hose Clamp
(4) 1P Connector (Magnetic Clutch)
(5) Compressor
(6) Compressor Stay
(7) Compressor Support Mounting
Screw 2
(8) Low Pressure Hose
(9) High Pressure Hose
Tightening torque
Master cylinder hose
retaining nut
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
Power steering joint shaft
mounting screw
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Hose Clamp
(2) Heater Hose
(3) Breather Hose
(4) Steering Joint Shaft
(5) Screw
(6) Master Cylinder Hose
(7) Master Cylinder Return Hose
