Condenser and Compressor
Without discharging the refrigerant from system

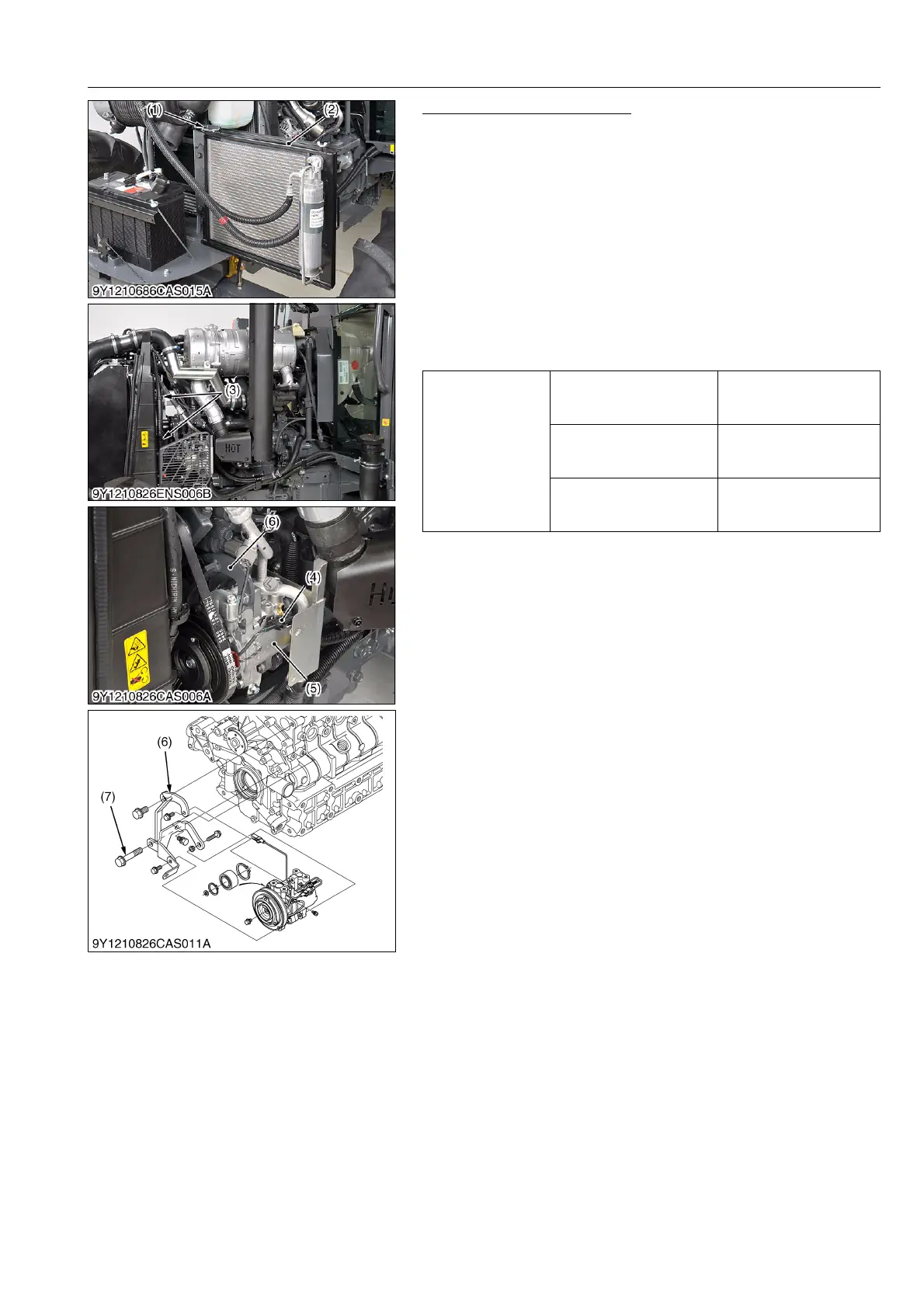

1. Remove the screw 1 (1) from the condenser (2) and slide out the
condenser (2).
2. Remove the hose clamps (3).
3. Disconnect 1P connector (4) of magnetic clutch.
4. Remove the compressor stay (6) mounting screw 2 (7) from
engine.
5. Remove the compressor (5) with hoses and compressor stay
(6).
(When reassembling)
• Be careful not to damage the air condenser fin.
• After reassembling the compressor, be sure to adjust the air
conditioner belt tension. (See page G-28.)
(To be continued)
Tightening torque
Compressor bracket
mounting screw (M8) to
aluminum parts
18 to 20 N·m
1.8 to 2.1 kgf·m
13 to 15 lbf·ft
Compressor bracket
mounting screw (M8) to
ordinariness parts
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
Compressor bracket
mounting screw (M10) to
ordinariness parts
48 to 55 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
(1) Screw 1
(2) Condenser
(3) Hose Clamp
(4) 1P Connector (Magnetic Clutch)
(5) Compressor
(6) Compressor Stay
(7) Compressor Support Mounting
Screw 2
(8) Low Pressure Hose
(9) High Pressure Hose
