CABIN
M6060, M7060, WSM
9-S40

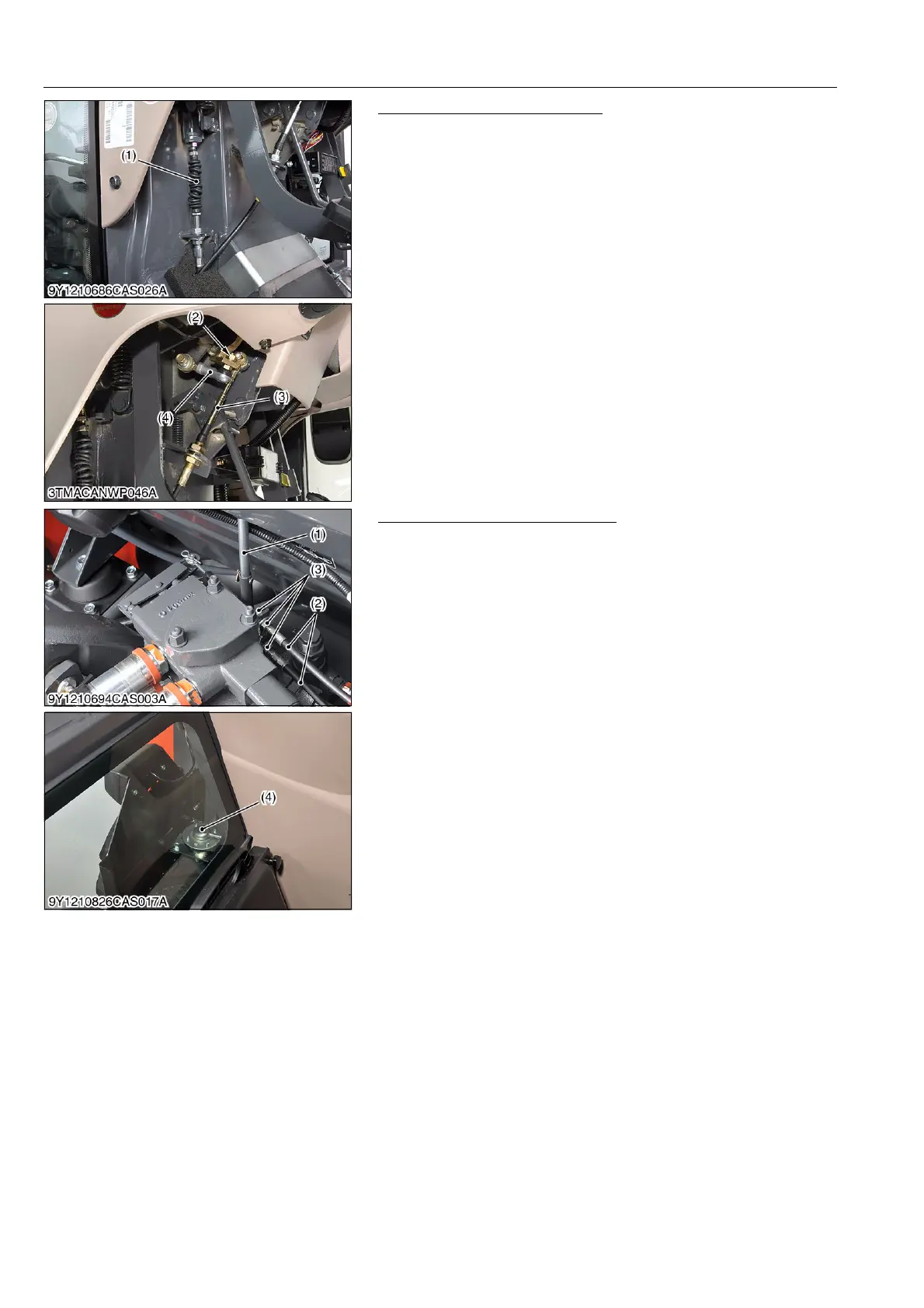

Shuttle Select Rod and Cables
1. Disconnect the clutch cable (1).
2. Remove the shuttle select rod mounting nut (2) from shuttle
select rod (4) then disconnect the shuttle select rod (4).
3. Disconnect the shuttle cable (3).
(When reassembling)
• Be sure to adjust the clutch cable for the clutch pedal free travel.
(See page 2-S10.)
• Be sure to adjust the shuttle cable for the shuttle lever neutral
position. (See page 2-S7.)
9Y1210828CAS0065US0
Auxiliary Control Wire and Rods
1. Disconnect the lowering speed adjusting rod (1).
2. Loose the retaining nuts (3) and disconnect the auxiliary control
wires (2).
3. Disconnect the breather hose (4).
(When reassembling)
• Be sure to adjust the auxiliary control lever movement by
auxiliary control wire (2). (See page 7-S16.)
9Y1210828CAS0066US0
(1) Clutch Cable
(2) Nut
(3) Shuttle Cable
(4) Shuttle Select Rod
(1) Lowering Speed Adjusting Rod
(2) Auxiliary Control Wire
(3) Retaining Nut
(4) Breather Hose
KiSC issued 08, 2013 A
