CABIN
M6060, M7060, WSM
9-S41

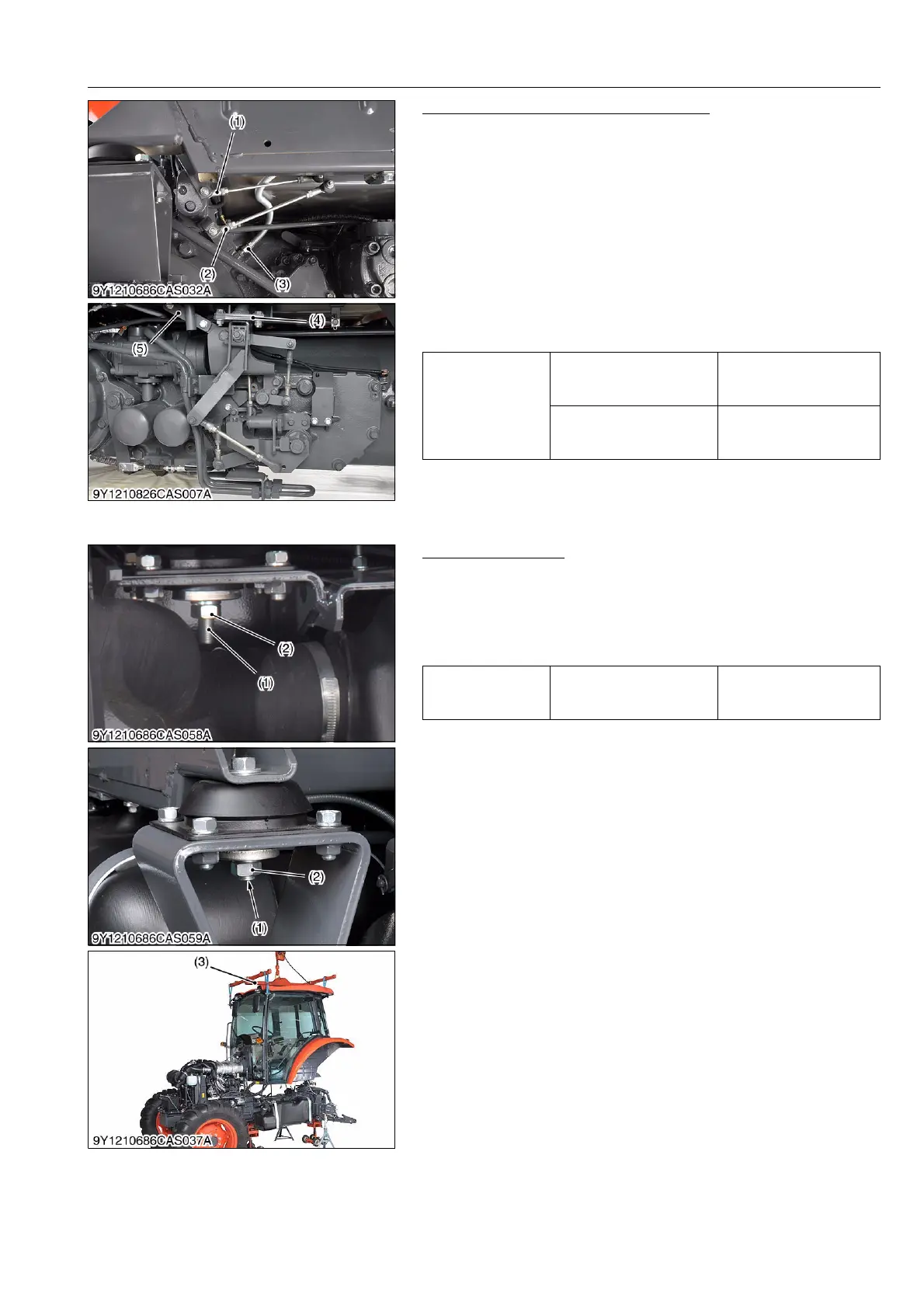

Control Rods, Brake Hoses and Levers
1. Disconnect the position control rod (2) and draft control rod (1).
2. Disconnect the brake hose (3) in both sides.
3. Disconnect the main gear shift lever (4).
4. Disconnect the range gear shift lever (5).
(When reassembling)
• Be sure to adjust the length of position control rod (2) and draft
control rod (1). (See page 7-S9.)
• Be sure to adjust the main gear lever (4). (See page 2-S11.)
• Be sure to adjust the range gear shift lever (5). (See page
2-S13.)
• Be sure to bleed the air from hydraulic brake line. (See page
4-S6.)
9Y1210828CAS0067US0
Dismounting Cabin
1. Set the cabin dismounting tool (3) to the cabin. (See page
G-84.)
2. Remove the cabin mounting all screws (1) and nuts (2).
3. Dismounting the cabin from tractor body.
(When reassembling)
9Y1210828CAS0068US0
Tightening torque
Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
Brake hose retaining nut
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Draft Control Rod
(2) Position Control Rod
(3) Brake Hose
(4) Main Gear Shift Lever
(5) Range Gear Shift Lever
Tightening torque
Cabin mounting screw and
nut
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
(1) Cabin Mounting Screw
(2) Cabin Mounting Nut
(3) Cabin Dismounting Tool
To Next Page
