GENERAL
M6060, M7060, WSM
G-84

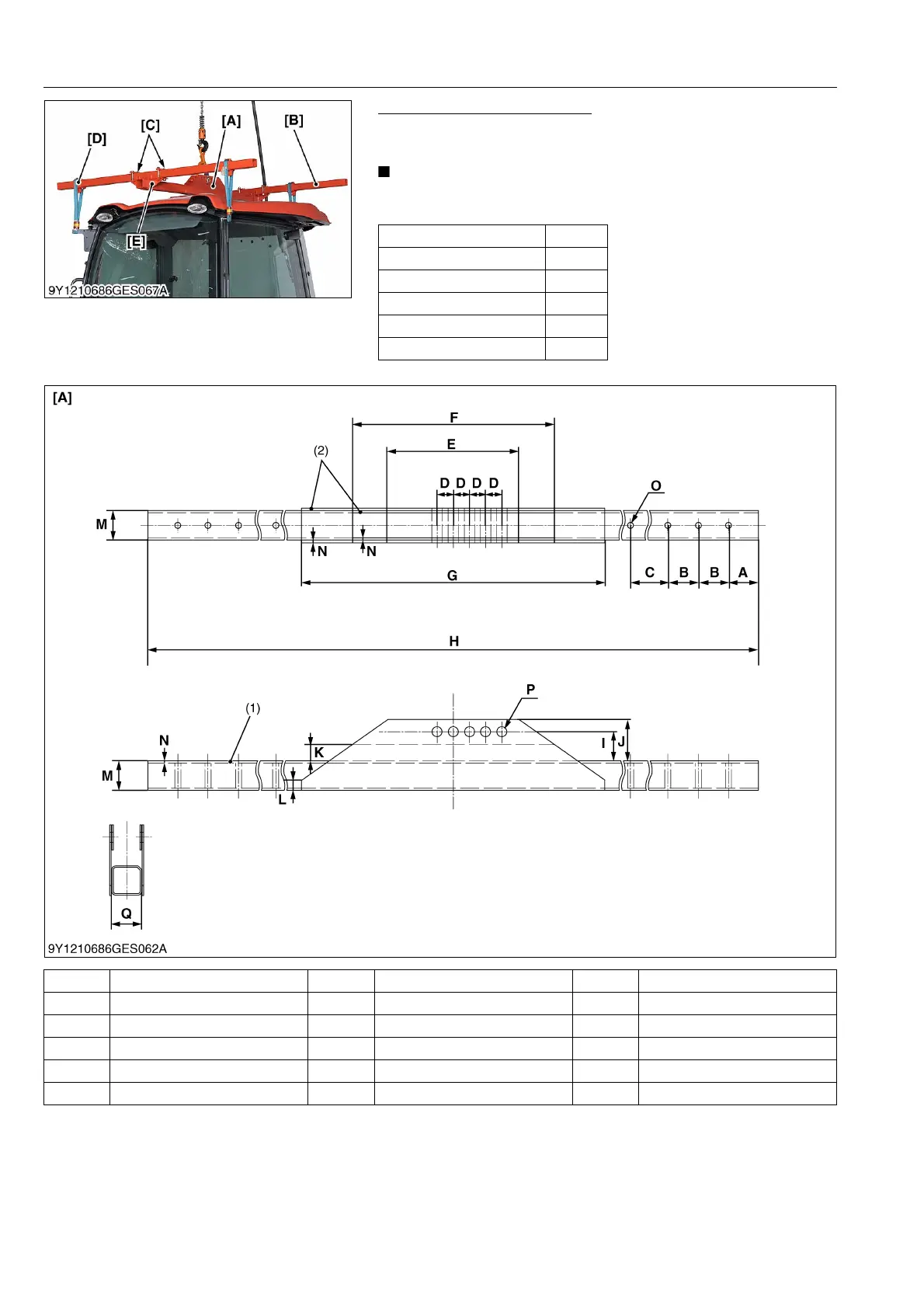

Tools for Dismounting Cabin
Application
• Use to dismounting the cabin from tractor body.
NOTE
• This special tools are not provided, so make them referring
to the figure.
9Y1210828GEG0119US0
9Y1210828GEG0120US0
Q'ty
Piece [A] 1
Piece [B] 2
Piece [C] 4
Piece [D] 4
Piece [E] 2
A 77.0 mm (3.03 in.) G 600 mm (23.6 in.) M 60.0 mm (2.36 in.)
B 50.0 mm (2.17 in.) H 1562 mm (61.50 in.) N 4.5 mm (0.18 in.)
C 200 mm (7.87 in.) I 65.0 mm (2.56 in.) O 8-11.0 mm dia. (0.433 in. dia.)
D 32.0 mm (1.26 in.) J 15.0 mm (0.984 in.) P 5-20.0 mm dia. (0.787 in. dia.)
E 260 mm (10.2 in.) K 40.0 mm (2.17 in.) Q 60.0 mm (2.36 in.)
F 400 mm (15.7 in.) L 20.0 mm (0.787 in.)
(1) Material : STKR400
(60 × 60 × t45)
(2) Material : SPHC-P
KiSC issued 08, 2013 A
