GENERAL
M6060, M7060, WSM
G-85
9Y1210828GEG0121US0
9Y1210828GEG0122US0

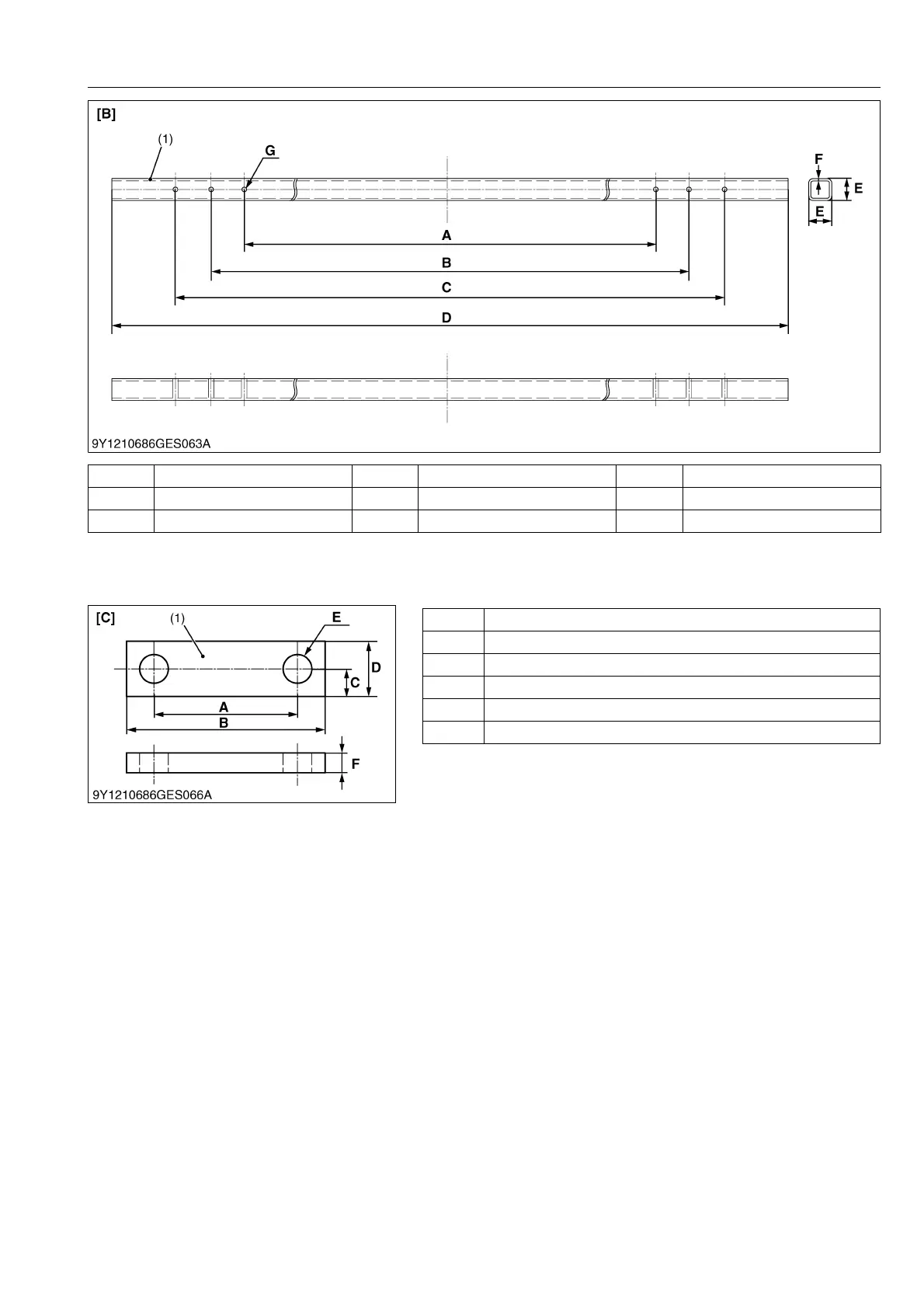

A 1050 mm (41.34 in.) D 1650 mm (64.96 in.) F 4.5 mm (0.18 in.)
B 1200 mm (47.24 in.) E 50.0 mm (1.97 in.) G 6-11.0 mm dia. (0.433 in. dia.)
C 1362 mm (53.62 in.)
(1) Material : STKR400
(50 × 50 × t45)
A 62.0 mm (2.44 in.)
B 90.0 mm (3.54 in.)
C 12.5 mm (0.492 in.)
D 25.0 mm (0.984 in.)
E 2-13 mm dia. (2-0.512 in. dia.)
F 9.0 mm (0.35 in.)
(1) Material : SS400
KiSC issued 08, 2013 A
