CABIN
M6060, M7060, WSM
9-S49
High Pressure Hose 1, 2 and Low Pressure Hose
1. Disconnect the low pressure hose (3) and high pressure hose 1
(1) from the compressor (2), then cap the open fittings
immediately to keep moisture out of the system.
2. Slide the condenser (4).
3. Disconnect the high pressure hose 1 (1) from the condenser (4)
and cap the place immediately which disconnected pressure
hose to keep moisture out of the system.
4. Disconnect the high pressure hose 2 (6) from the receiver (5)
and cap the place immediately which disconnected pressure
hose to keep moisture out of the system.
(When reassembling)
• Apply compressor oil (DENSO CO. ND-OIL8) to the O-rings and
be careful not to damage them.
9Y1210828CAS0086US0
Seat and Floor Mats
1. Disconnect the battery negative cable from battery.
2. Remove the seat (1).
3. Remove the floor mat 1 (2) and mat 2 (3).
9Y1210828CAS0087US0
Inner Cover (R.H.)
• See page 9-S46.
9Y1210828CAS0088US0
Tightening torque
Low pressure hose
mounting screw
(compressor side)
7.9 to 11 N·m
0.80 to 1.2 kgf·m
5.8 to 8.6 lbf·ft
High pressure hose 1
mounting screw
(compressor side)
7.9 to 11 N·m
0.80 to 1.2 kgf·m
5.8 to 8.6 lbf·ft
High pressure hose 1
mounting screw
(condenser side)
7.9 to 11 N·m
0.80 to 1.2 kgf·m
5.8 to 8.6 lbf·ft
High pressure hose 2
retaining nut
(receiver side)
12 to 14 N·m
1.2 to 1.5 kgf·m
8.7 to 10 lbf·ft

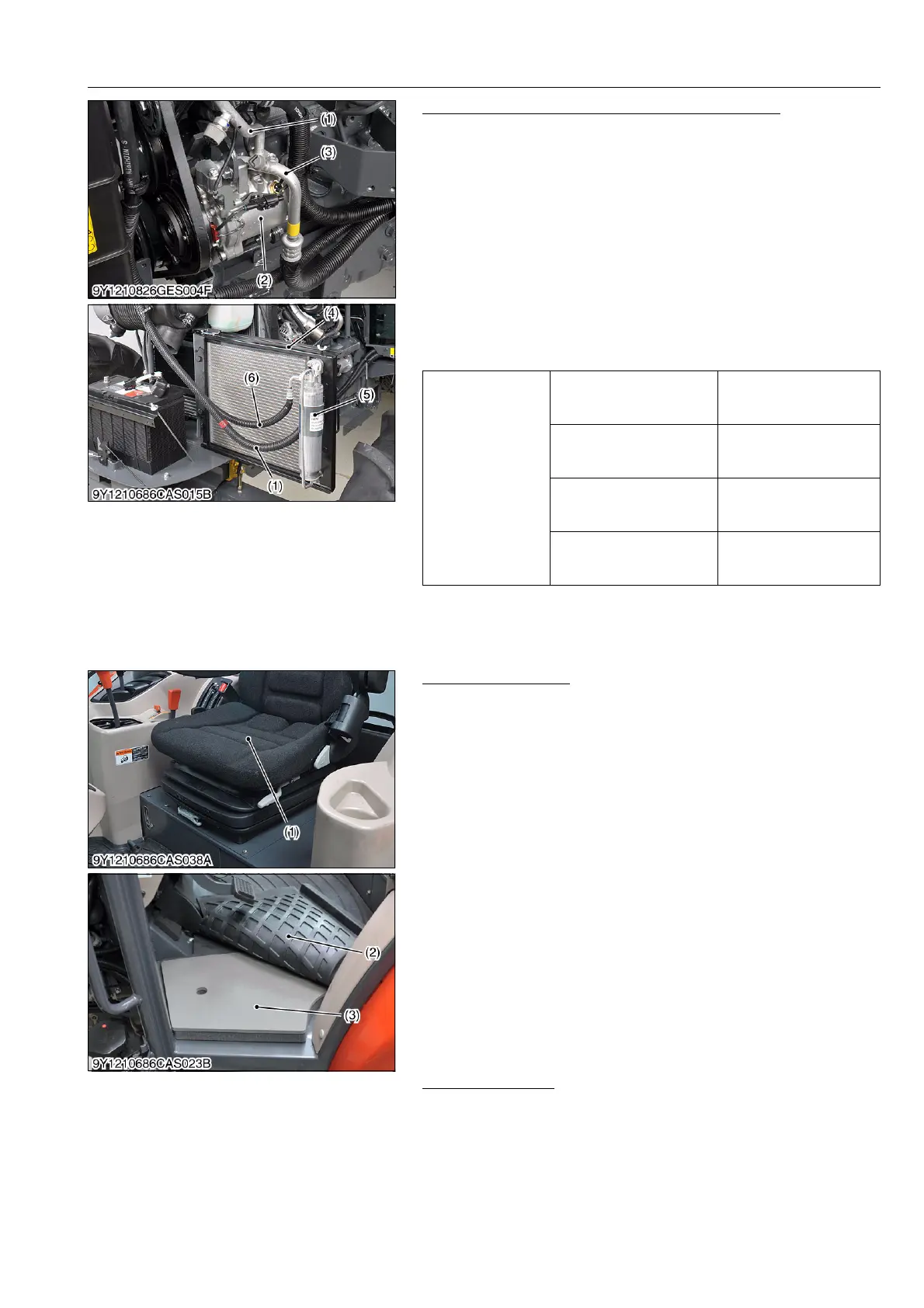

(1) High Pressure Hose 1
(2) Compressor
(3) Low Pressure Hose
(4) Condenser
(5) Receiver
(6) High Pressure Hose 2
(1) Seat
(2) Floor Mat 1
(3) Floor Mat 2
