CABIN
M6060, M7060, WSM
9-S50

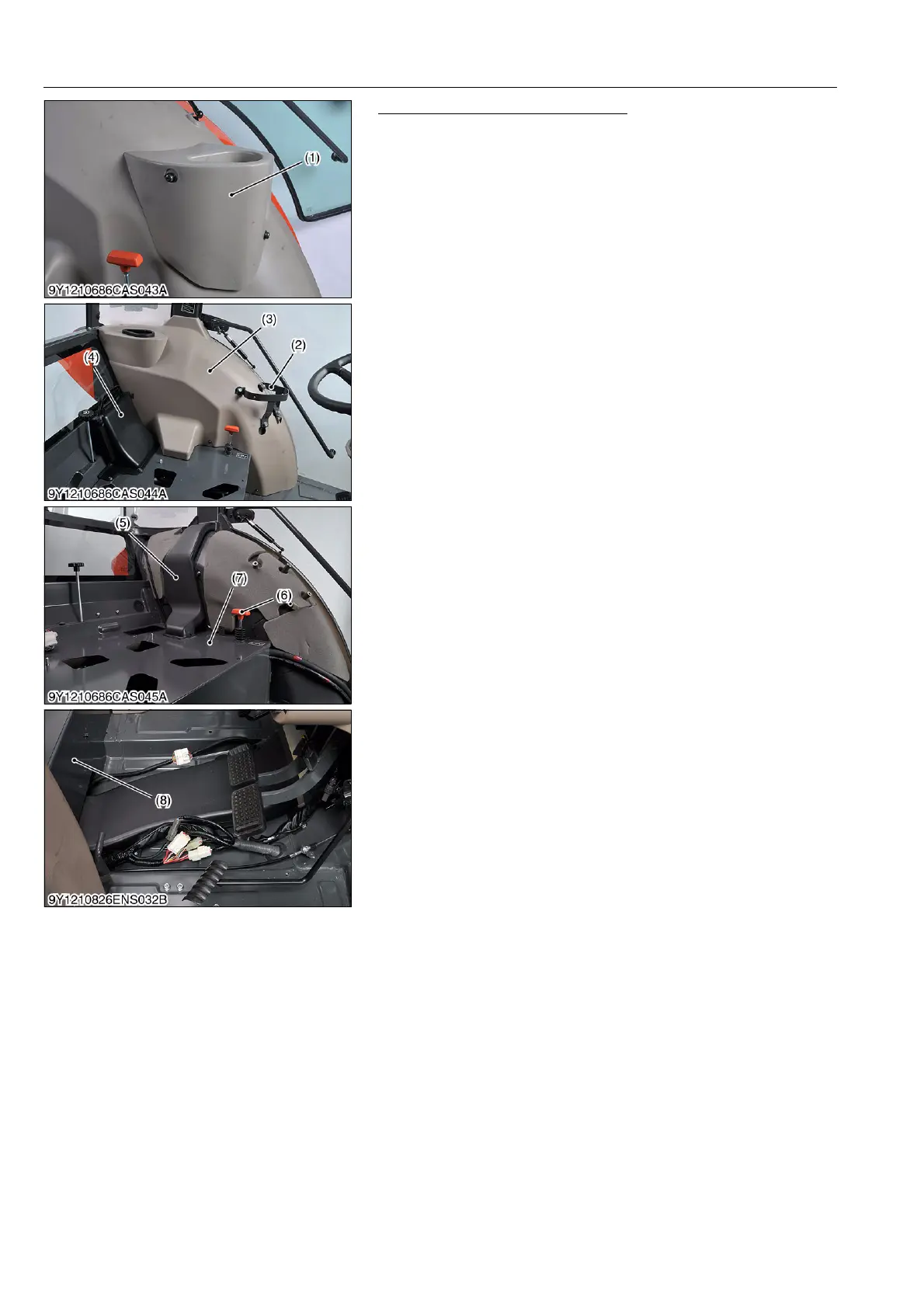

Air Conditioner Ducts and Covers
1. Remove the holder cover (1).
2. Remove the holder cover stay (2).
3. Remove the inner cover (L.H.) (3).
4. Remove the duct 1 (4).
5. Remove the duct 2 (5).
6. Remove the 4WD lever grip (6). (F8/R8 and F12/R12 speed
transmission model.)
7. Remove the seat under cover 1 (7).
8. Remove the seat under cover 2 (8).
9Y1210828CAS0089US0
(1) Holder Cover
(2) Holder Cover Stay
(3) Inner Cover (L.H.)
(4) Duct 1
(5) Duct 2
(6) 4WD Lever Grip
(7) Seat Under Cover 1
(8) Seat Under Cover 2
KiSC issued 08, 2013 A
