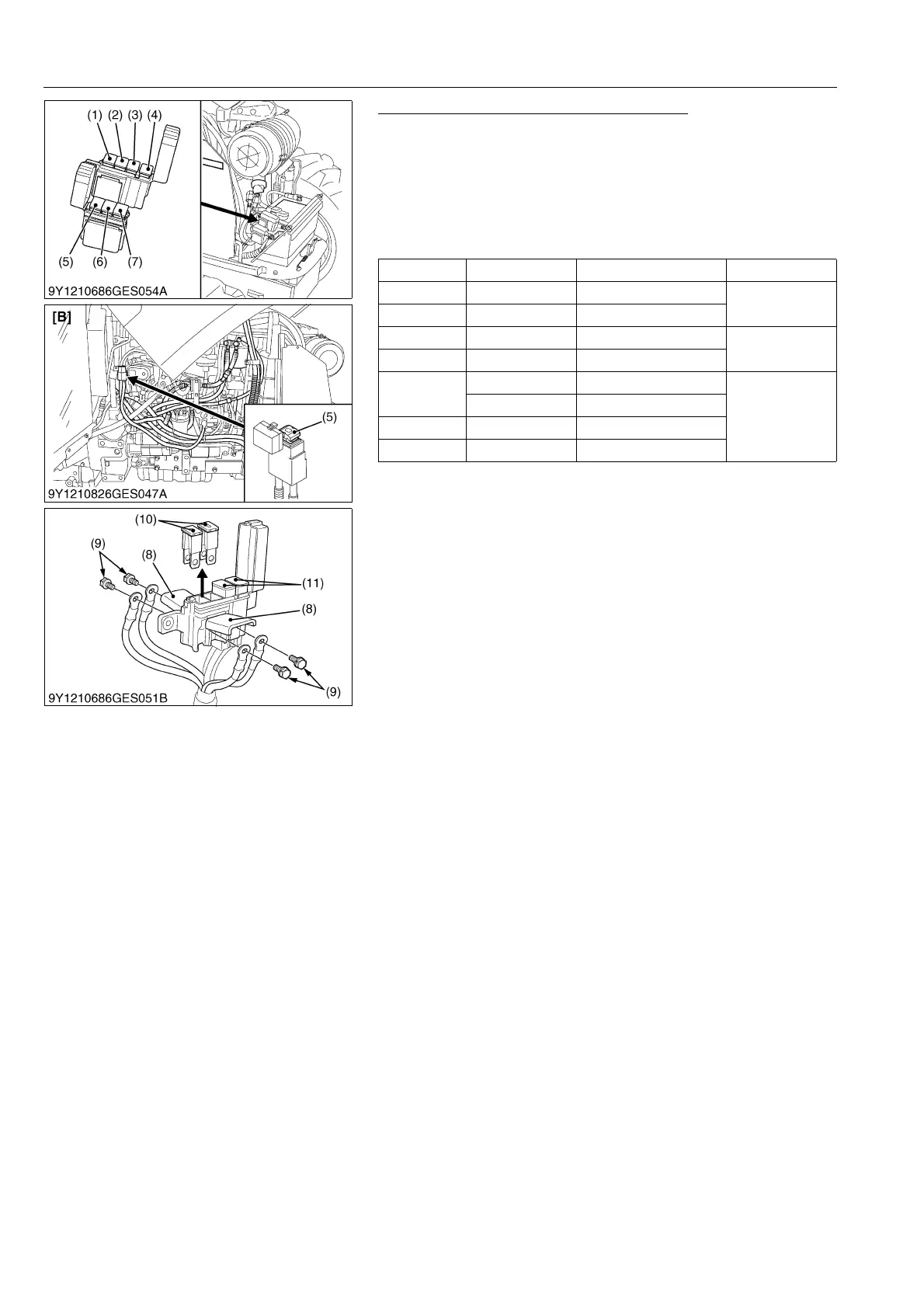

Replacing Slow Blow Fuse (CABIN Model)
1. The slow blow fuse are intended to protect the electrical cabling.
If any of them has blown out, be sure to pinpoint the cause.
Never use any substitute, use only a KUBOTA genuine part.
2. Remove the bolt from fuse box. (Bolt fixed slow blow fuse)
Pull out the fuse from the fuse box.(Non bolt fixed slow-blow
fuse)
3. Replace with a new one of the same capacity.
9Y1210828GEG0076US0
No. Capacity Protected circuit Type
(1) 30 A Electrical outlet
Bolt fixed
(2) 30 A Work light
(3) 50 A Engine glow
Non Bolt fixed
(4) 50 A Starter, Air conditioner
(5)
100 A Charge
Bolt fixed
140 A Charge [B type only]
(6) 50 A Head lamp, Hazard
(7) 30 A Main key switch
(8) Fuse Box
(9) Bolt
(10) Bolt Fixed Slow Blow Fuse
(11) Non Bolt Fixed Slow Blow Fuse
[B] B Type
