GENERAL
M6060, M7060, WSM
G-52

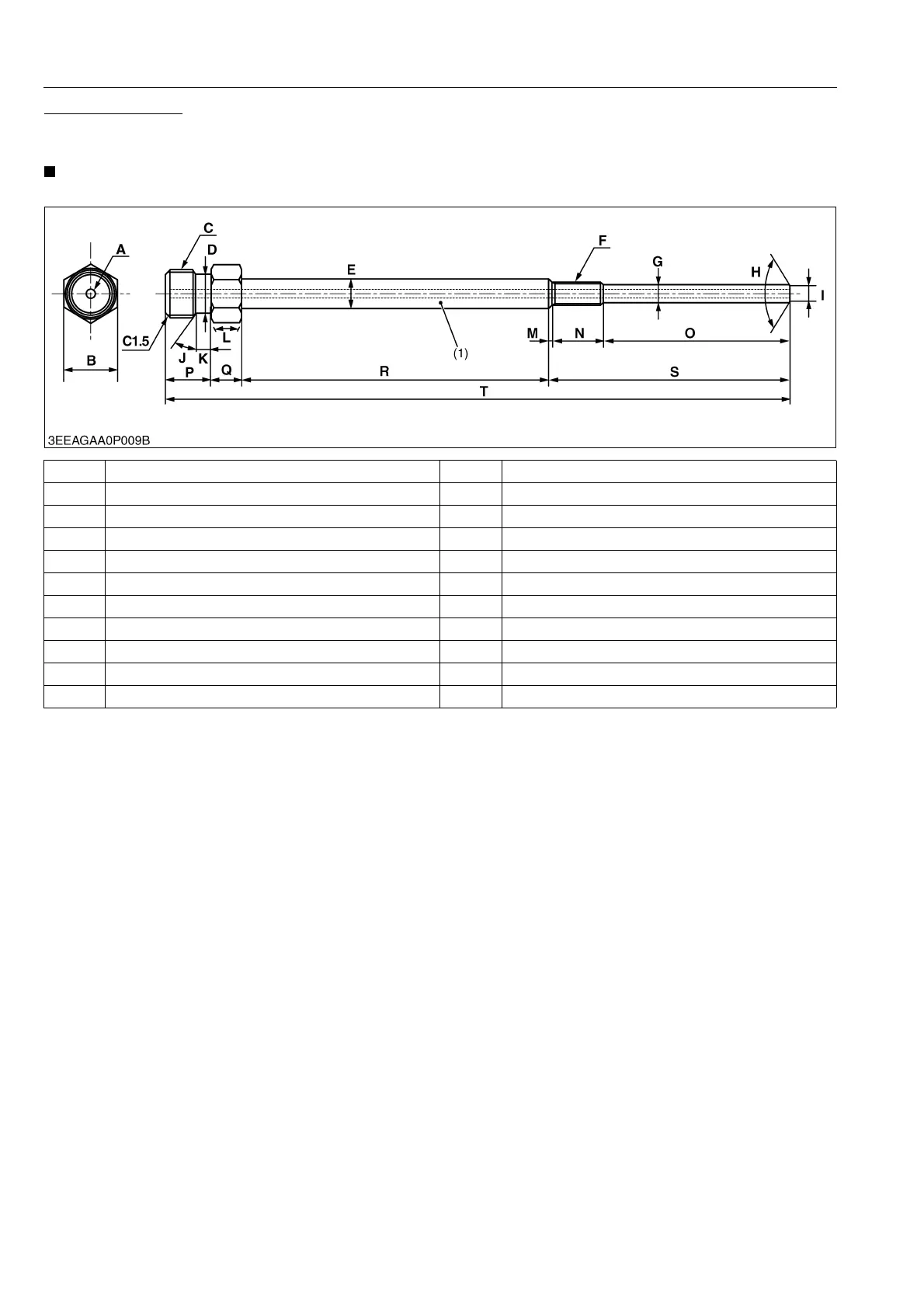

Glow Plug Adapter
Application
• Use to check compression pressure through glow plug hole.
NOTE
• This special tool is not provided, so make it referring to the figure.
9Y1210828GEG0081US0
A 3.0 mm dia. (0.12 in. dia.) through hole L 1.0 rad (60 °)
B 17.0 mm (0.669 in.) M 1.0 mm (0.039 in.)
C 16.0 mm dia. (0.630 in. dia.) P0.5 N 17.0 mm (0.669 in.)
D 13.0 mm dia. (0.512 in. dia.) O 61.5 mm (2.42 in.)
E 9.5 mm dia. (0.37 in. dia.) P 15.0 mm (0.591 in.)
F M8 x 1.0 Q 10.0 mm (0.394 in.)
G 6.50 to 6.70 mm dia. (0.256 to 0.263 in. dia.) R 100 mm (3.94 in.)
H 2.145 to 2.148 rad (122.9 to 123.1 °) S 79.5 mm (3.13 in.)
I 4.90 to 5.50 mm dia. (0.193 to 0.216 in. dia.) T 204.5 mm (8.051 in.)
J 0.52 rad (30 °) C1.5 Chamfer 1.5 mm (0.059 in.)
K 5.0 mm (0.20 in.)
(1) Material : SS400
KiSC issued 08, 2013 A
