GENERAL
M6060, M7060, WSM
G-53

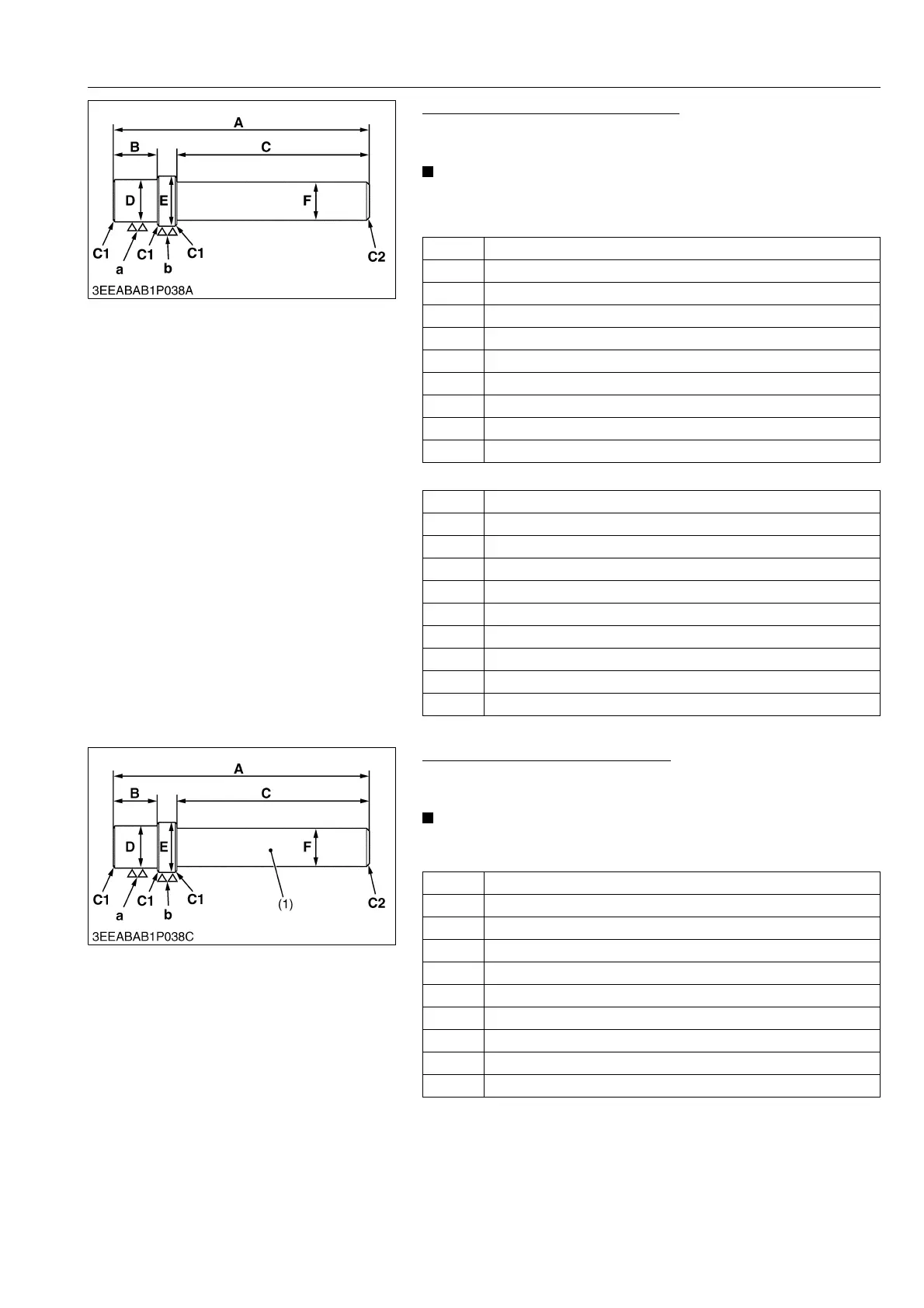

Small End Bushing Replacing Tool
Application
• Use to press out and to press fit the small end bushing.
NOTE
• These special tools are not provided, so make it referring to
the figure.
[Press out]
[Press fit]
9Y1210828GEG0082US0
Idle Gear Bushing Replacing Tool
Application
• Use to press out and to press fit the bushing.
NOTE
• This special tool is not provided, so make it referring to the
figure.
9Y1210828GEG0083US0
A 157 mm (6.181 in.)
B 14.0 mm (0.5512 in.)
C 120 mm (4.7244 in.)
D 27.4 mm dia. (1.0787 in. dia.)
E 30.95 mm dia. (1.2185 in. dia.)
F 20 mm dia. (0.7874 in. dia.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
A 157 mm (6.181 in.)
B 14.0 mm (0.5512 in.)
C 120 mm (4.7244 in.)
D 27.4 mm dia. (1.0787 in. dia.)
E 42.000 mm dia. (1.6535 in. dia.)
F 20 mm dia. (0.7874 in. dia.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
A 196 mm (7.72 in.)
B 25.0 mm (0.984 in.)
C 150 mm (5.91 in.)
D 34.5 mm dia. (1.36 in. dia.)
E 38.075 to 38.100 mm dia. (1.4991 to 1.5000 in. dia.)
F 20 mm dia. (0.79 in. dia.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
(1) Material : SS400
