GENERAL
M6060, M7060, WSM
G-54

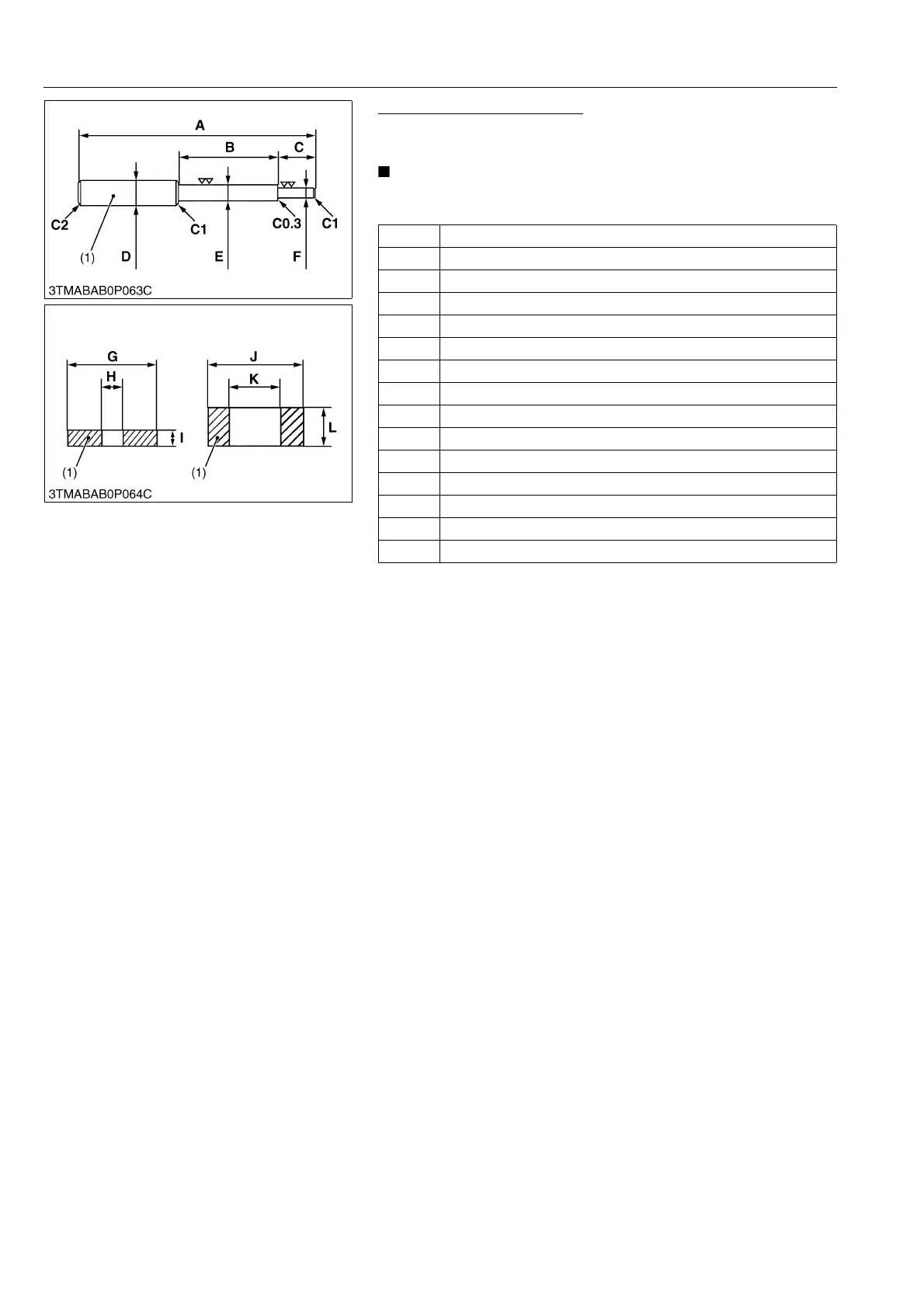

Valve Guide Replacing Tool
Application
• Use to press out and press fit the valve guide.
NOTE
• These special tools are not provided, so make it referring to
the figure.
9Y1210828GEG0084US0
A 225 mm (8.86 in.)
B 70 mm (2.8 in.)
C 45 mm (1.8 in.)
D 20 mm dia. (0.79 in dia.)
E 11.7 to 11.9 mm dia. (0.461 to 0.468 in. dia.)
F 6.50 to 6.60 mm dia. (0.256 to 0.259 in. dia.)
G 25 mm dia. (0.98 in. dia.)
H 6.70 to 7.00 mm dia. (0.264 to 0.275 in. dia.)
I 5.0 mm (0.20 in.)
J 20 mm dia. (0.79 in. dia.)
K 12.5 to 12.8 mm dia. (0.493 to 0.503 in. dia.)
L 8.50 to 8.90 mm (0.335 to 0.350 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.30 mm (0.012 in.)
(1) Material : SS400
KiSC issued 08, 2013 A
