Engine Stand
Application
• Use to support engine.
9Y1210828GEG0095US0

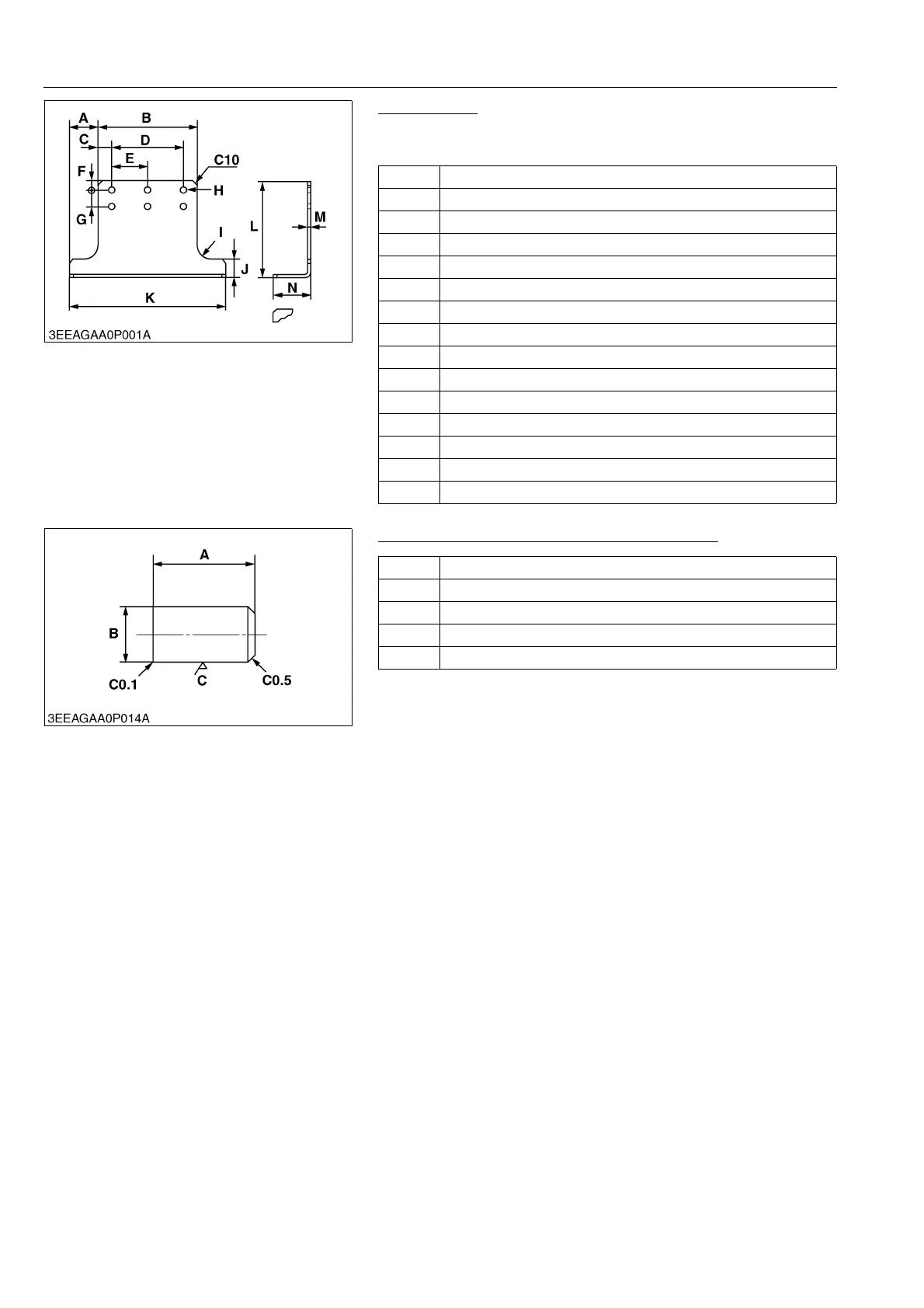

Pin for Balancer Shaft Bearing Replacing Tool
9Y1210828GEG0096US0
A 107 mm (4.213 in.)
B 246 mm (9.685 in.)
C 21 mm (0.827 in.)
D 204 mm (8.032 in.)
E 102 mm (4.016 in.)
F 15 mm (0.591 in.)
G 59 mm (2.323 in.)
H 14 mm dia. (0.551 in. dia.)
I 80 mm radius (3.150 in. radius)
J 70 mm (2.756 in.)
K 460 mm (18.110 in.)
L 270 mm (10.630 in.)
M 6 mm (0.236 in.)
N 70 mm (2.756 in.)
C10 Chamfer 10 mm (0.394 in.)
A 7.2 to 7.4 mm (0.283 to 0.291 in.)
B 4.0 mm dia. (0.158 in. dia.)
C Ra = 0.8 a
C0.1 Chamfer 0.1 mm (0.0039 in.)
C0.5 Chamfer 0.5 mm (0.0197 in.)
