Page 96 160337-000 Rev D, 30 September, 2013 Xiotech—Proprietary
ISE User Guide ISE Management
Storage
The Storage view presents storage information on all the ISE Systems identified for monitoring. This storage
information is presented in the form of a collapsible table and pie charts that are useful for viewing networked
ISE field as a single entity (Figure 69). This view is dynamically refreshed every two minutes. Hovering the
pointer over the horizontal bar chart entries initiates an information pop-up showing the used and free capacity
in Gigabytes for each ISE.
Initially this view is presented in descending order by capacity and can be sorted on any column in ascending
order by clicking the column title. Most of the column cells contain links to the associated ISE storage pool.

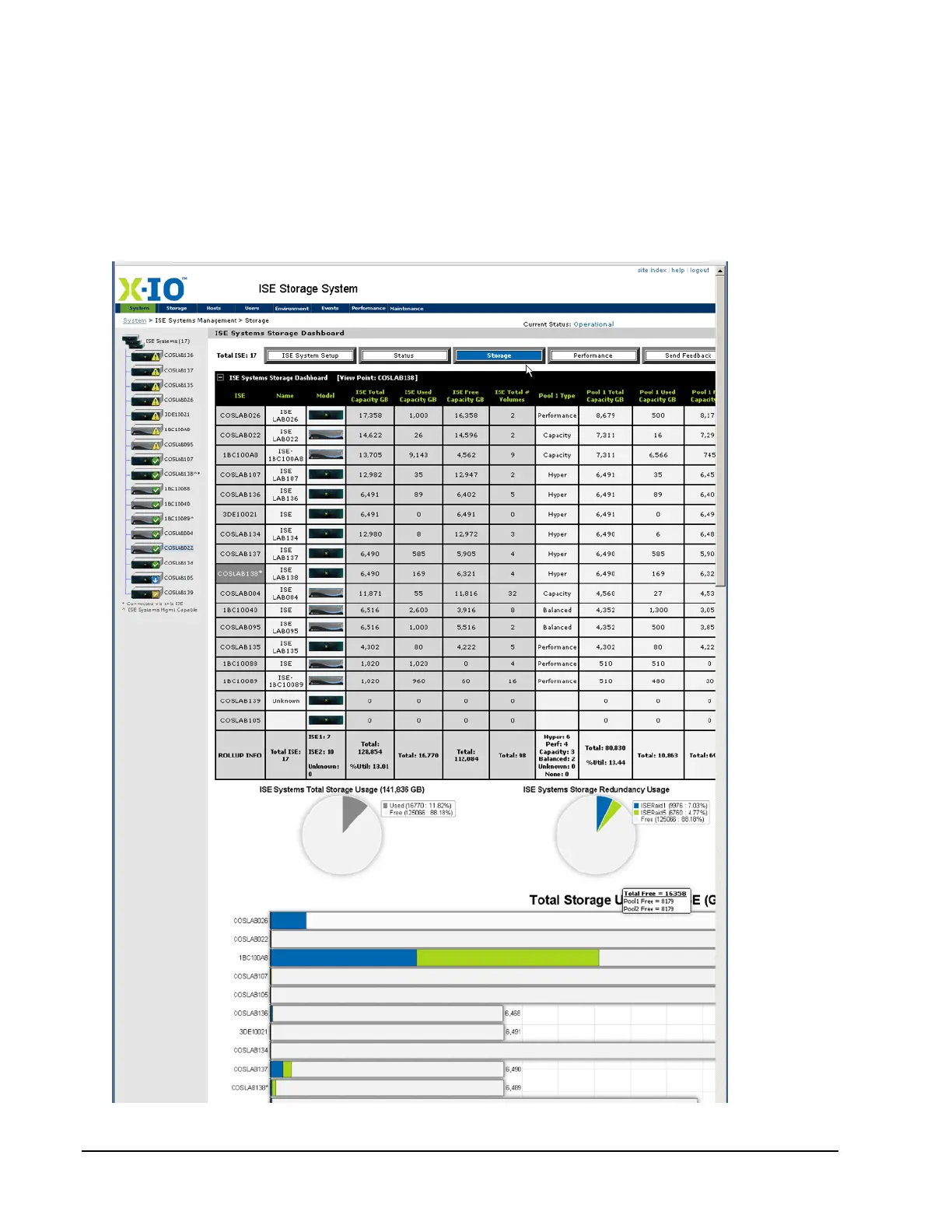

Figure 69. Web ISE Storage—Systems Management Dashboard
