Xiotech—Proprietary 160337-000 Rev D, 30 September, 2013 Page 11
Installation ISE User Guide
Installation
The ISE Storage Blade is a 3U, rack-optimized unit for installation into a server rack using the supplied custom
rails and conforming to the specifications defined in this section. Before installation, it is a good practice to
review the support matrix at
www.X-IO.com
for the latest information on supported configurations.
The
ISE consists of five different Field Replaceable Units (FRUs) plus a bezel. The unit is shipped with the
MRC, power supply, and supercapacitor FRUs pre-installed. The DataPacs are packaged individually.
Overview
The ISE Storage Blade comprises five different major components, shown below, plus a bezel (not shown).

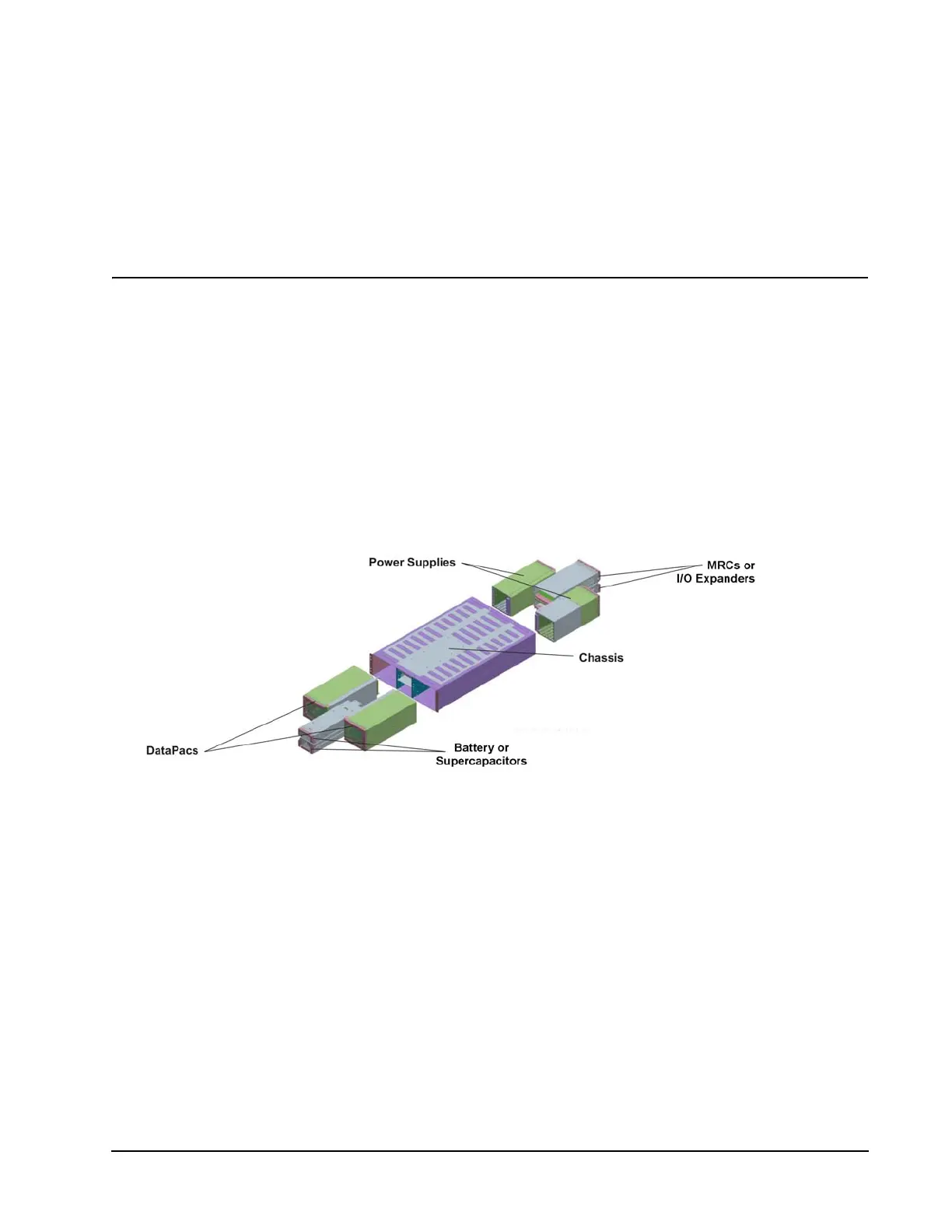

Figure 5. Assembly Overview
In addition to the five different major components (eleven in all), there is one minor component, the bezel. This
bezel is an integral component of the ISE. All ISE Storage Blade components must be installed during normal
operation and removed only during maintenance operations.
