Page 14 160337-000 Rev D, 30 September, 2013 Xiotech—Proprietary
ISE User Guide Installation

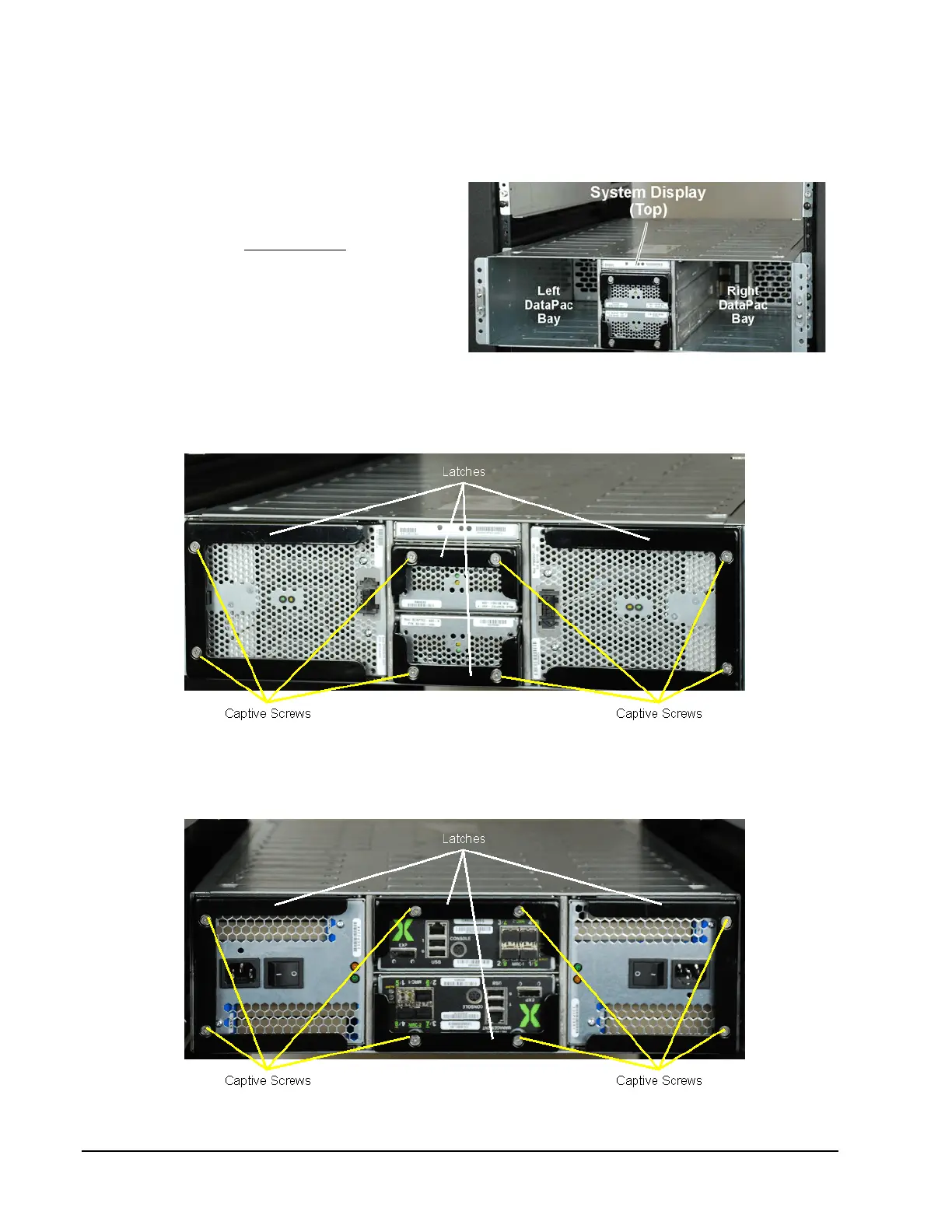

Install ISE Chassis
The ISE chassis can be installed into a rack as it is in the shipping box before inserting the DataPacs as
shown. The chassis as it is shipped weighs about seventy-three pounds and it is recommended that two peo-
ple co-lift the chassis from the collapsed shipping carton and slide it into the rack.
Front View
The ISE is shown from the front with the latches and captive screws pointed out.
Figure 9. ISE Front View
Rear View
The ISE is shown from the rear with the latches and captive screws pointed out.
Figure 10. ISE-2 Rear View
1. Remove the static shield bag from the chassis
and slide the chassis (as shipped) into the
server rack on the custom rails from the front,
oriented with the system display
on the top.
2. Secure the chassis to the rack with the four
mounting screws included in the hardware
packet.
Note. The ISE can weigh up to 120 pounds
with all components installed.
Figure 8. Inserting ISE Chassis
