Xiotech—Proprietary 160337-000 Rev D, 30 September, 2013 Page 13
Installation ISE User Guide

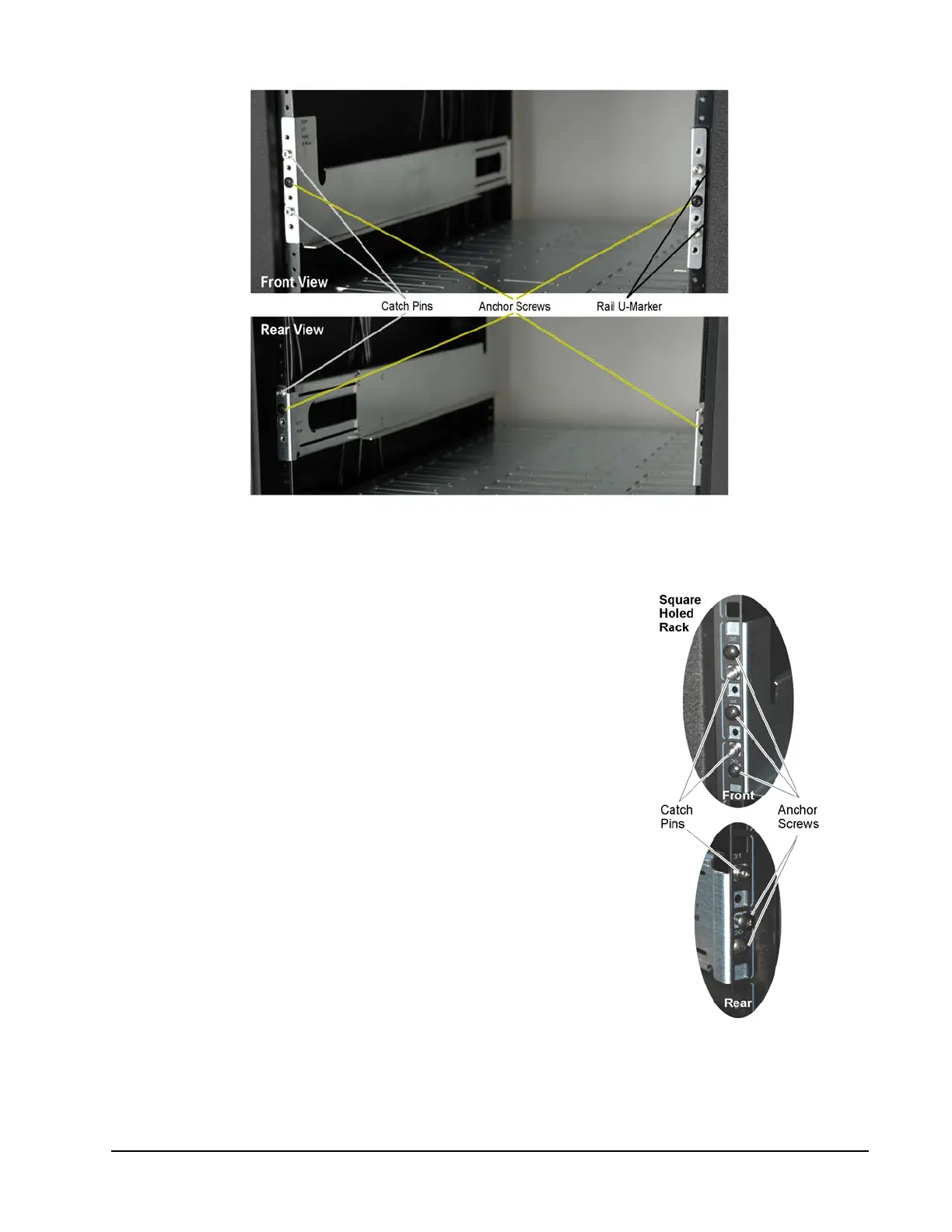

Figure 7. Installed Rail Kits
Square–Holed Rack Mounting
To install the adjustable rail kit into a square–holed rack, do the follow-
ing:
1. Remove the rail kit with anchoring screws from its packaging (Figure
6 on page 12).
2. Install both rails, as labeled, into the server rack by inserting the rail
mounting catch pins into the front square-holed rack mountings from
behind—see figure to right.
3. Extend the rear slider until the rear catch pin engages with the rear
rack mount—see figure to right.
4. Secure the rail, at the rear, with two of the rack screws supplied in
the rail kit.
5. Secure the rail, at the front, with three of the rack screws supplied in
the rail kit.
