Maintenance ISE User Guide
FRU Identification
The ISE FRU physical location is shown below.

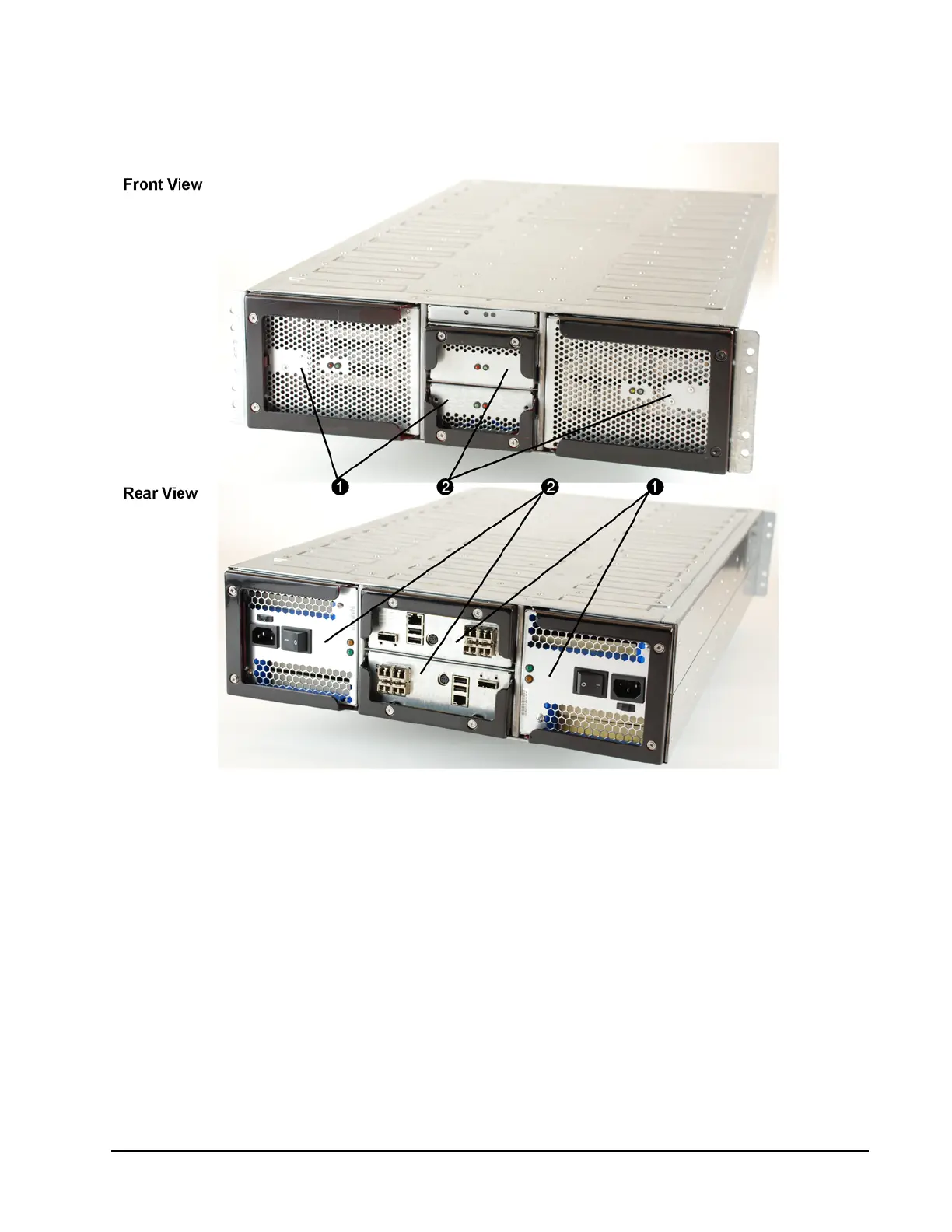

Figure 102. ISE Component Identification
Front View
1. The numeral
1 points to the number one DataPac and number one supercapacitor.
2. The numeral
2 points to the number two DataPac and number two supercapacitor.
Rear View
1. The numeral
1 points to the number one power supply and number one MRC.
2. The numeral
2 points to the number two power supply and number two MRC.
