Xiotech—Proprietary 160337-000 Rev D, 30 September, 2013 Page 9
Introduction ISE User Guide
Environmental Specifications
Environmental specifications for the ISE Storage Blade are presented in this section.
Dimensions
The
ISE Storage Blade dimensions are shown in the figure below.

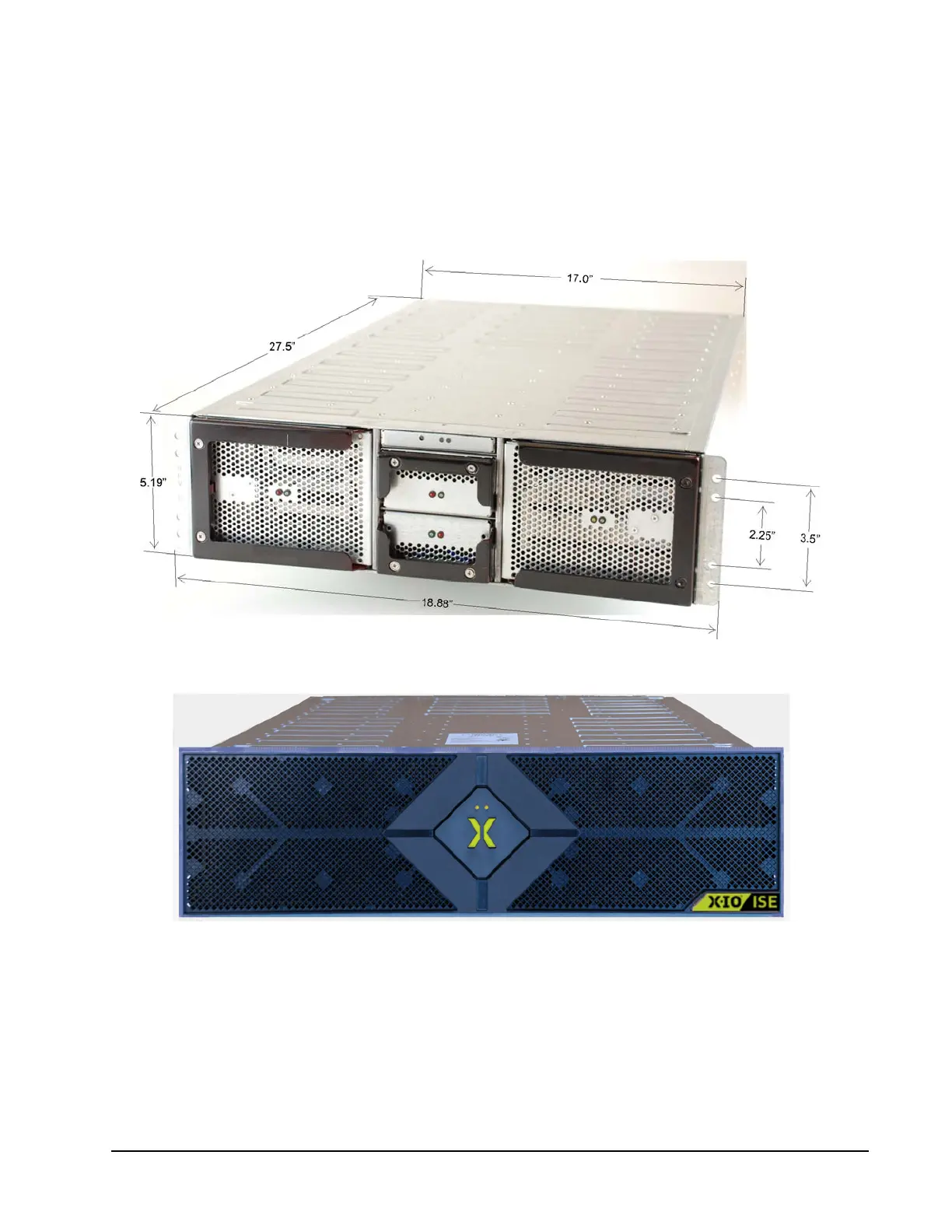

Figure 3. Front View with Dimensions (without Bezel)
For reference, the ISE, with bezel installed, is shown in the figure below.
Figure 4. Bezel
Note. The bezel is an integral component and should remain installed. The two LEDs and the “X” provide
status indications.
