Xiotech—Proprietary 160337-000 Rev D, 30 September, 2013 Page 87
ISE Management ISE User Guide
The
Detailed Host Information
page (shown in Figure 59 below) appears. In this example, host CC1R1_P1 is
mapped to ISE1_V1 as LUN1 and to ISE1_V2 as LUN2.

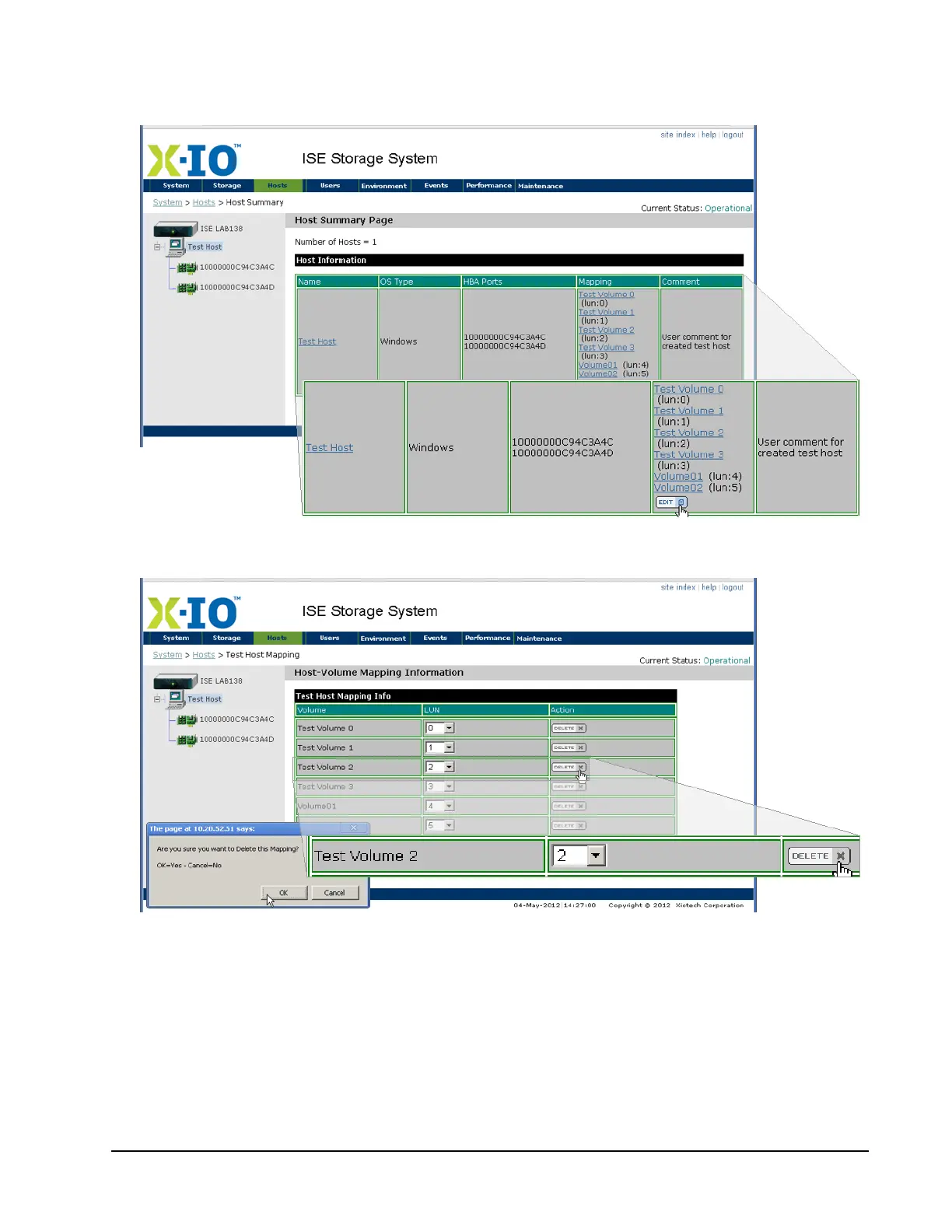

Figure 59. Host Summary–Edit
Figure 60. Host–Volume Mapping Details
2. Click the drop-down in the LUN column of the mapping details page (see Figure 58 on page 86 and Figure
60 above) for the LUN assignment that is to be changed.
3. Select the desired LUN number.
4. Click
Save Changes
and the new LUN number becomes effective immediately.
CLI View, Modify LUNs
To view the LUN assignments from the CLI, enter the show host or show volume commands.
