Xiotech—Proprietary 160337-000 Rev D, 30 September, 2013 Page 19
Installation ISE User Guide
Recommended Cabling
Cabling an ISE involves attaching the power cords, Ethernet cables, service console cable (one), and Fibre
Channel cables to the associated connectors on the ISE in a manner similar to that shown, figures 18 and 19.
The important issue with cabling is to run the cables with enough slack to permit the hot-replacement of any
component without interruption in ISE data services.
FRU Locations
The following figure identifies the ISE components (FRUs) by their location number. That is, when referring to
DataPac one (1), the specified DataPac is located to the left when viewing the ISE from the front. In Figure 17
(following page), this DataPac is identified with the number
1
on the front view.
When viewing the ISE from the back, the location numbering is in reverse order. That is, when referring to
power supply one (1), the specified power supply is located to the right. In Figure 17 (following page), this
power supply is identified with the number
1
on the back view.

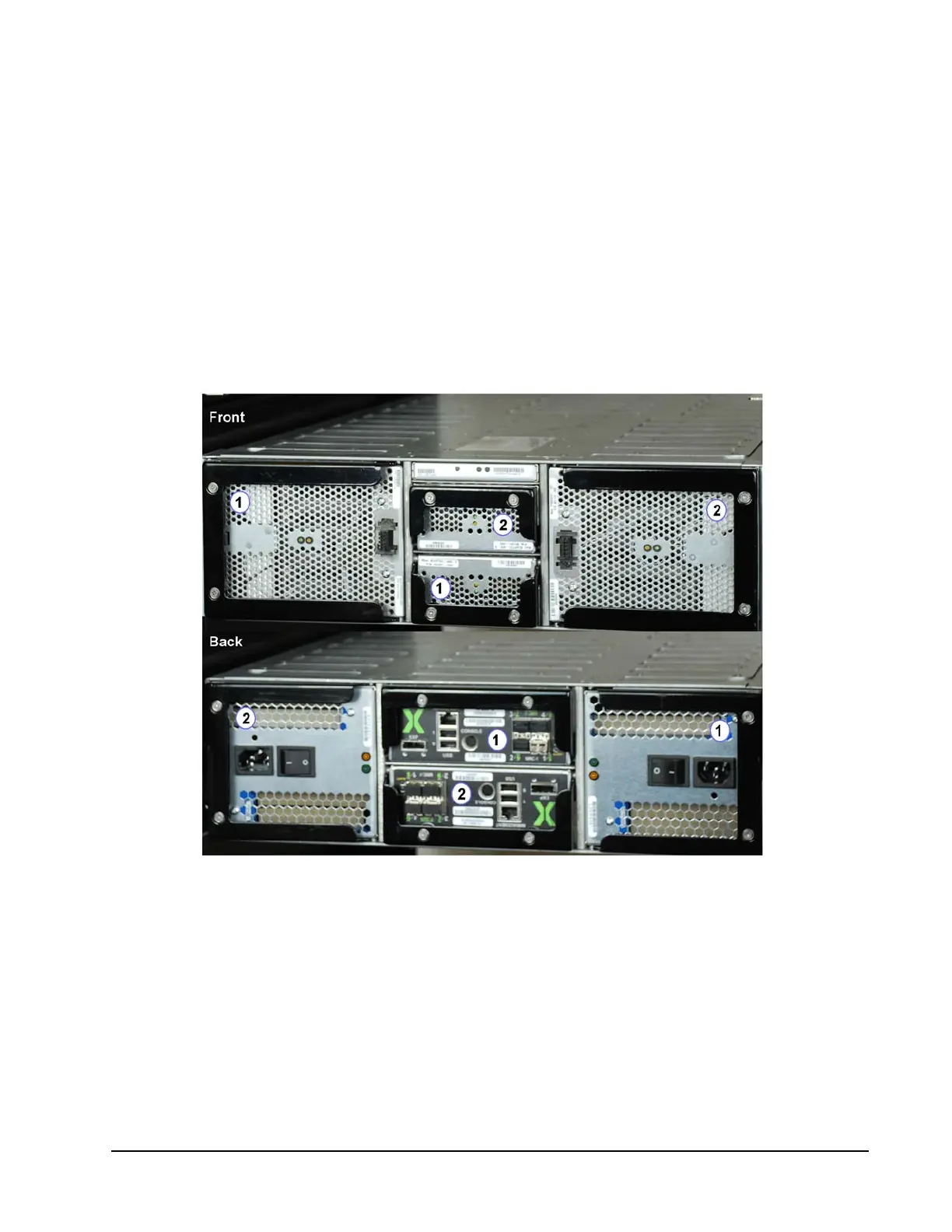

Figure 17. FRU Locations Numbered
To Next Page
