Orchestrator System Summary
Connect to Orchestrator to view a status summary for any ISE system within the site network. To display the
system summary,
Expand All Devices
and
Click on an ISE
in the left navigation pane on any Orchestrator. The
summary appears (shown below). This system summary is also accessible through the Groups link in the left
navigation pane. Refer to the Orchestrator User Guide for use details.

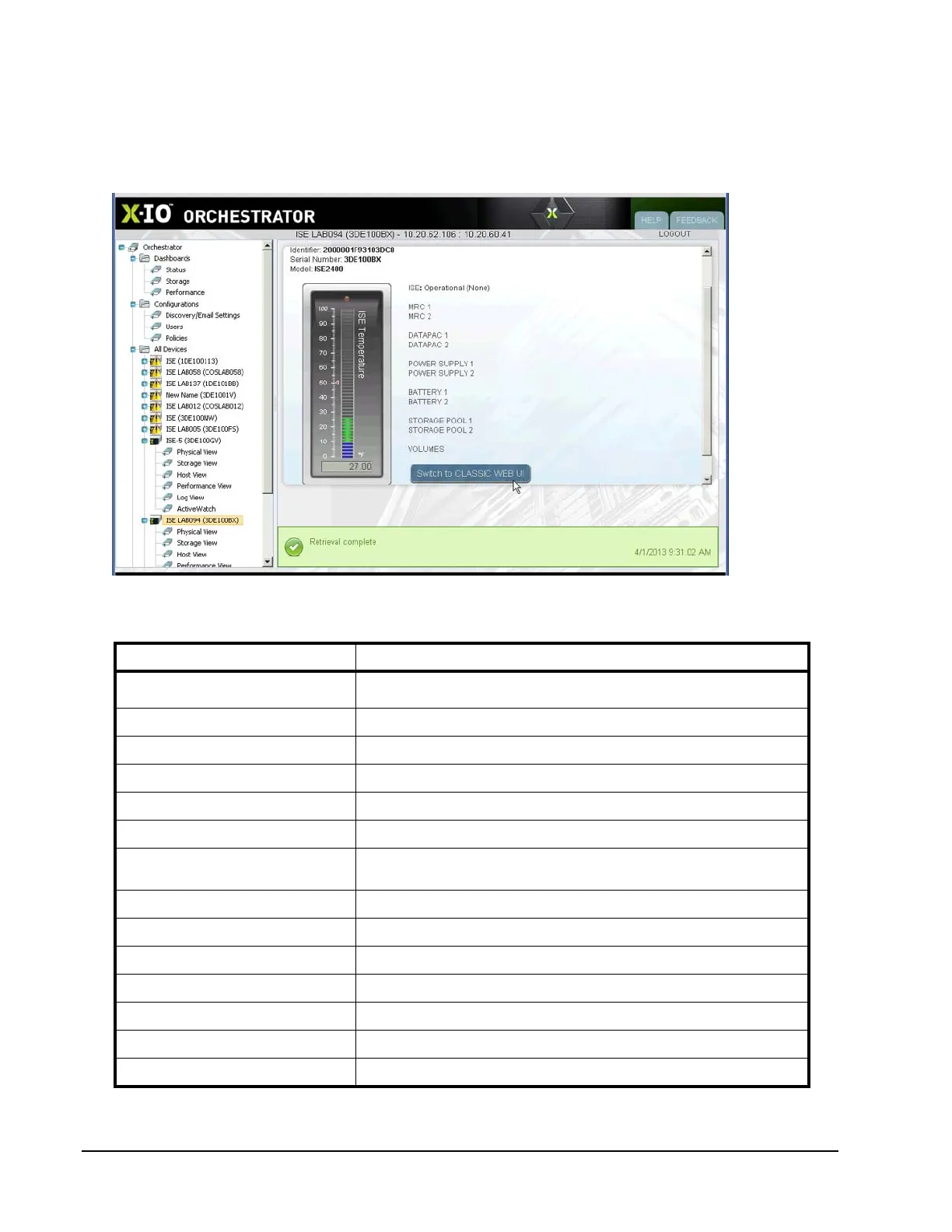

Figure 75. Orchestrator System Summary
The Orchestrator System Summary display includes the items listed in the following table.
Table 27: Status Summary Description
Status Summary Items Description
ISE Identification
ISE DNS name and IP addresses assigned to the Ethernet ports on the MRCs,
where address one is that of MRC one and address two is that of MRC two.
Up Time Time since the last start or re-start of the ISE
Identifier WWID of the ISE
Serial Number Unique number identifying this ISE, stored in the System Status Module
Model Model number for this ISE
Temperature Gauge Ambient temperature of the ISE
ISE: Operational (None)
ISE status (details): 1) Operational (None), 2) Warning (Component Degraded),
3) Warning (None)
MRC 1, MRC 2 Hot link to Physical View >> MRC tab
DATAPAC 1, DATAPAC 2 Hot link to Physical View >> DataPac tab
POWER SUPPLY 1, POWER SUPPLY 2 Hot link to Physical View >> Power Supply tab
BATTERY 1, BATTERY 2 Physical View >> Battery tab
STORAGE POOL 1, STORAGE POOL 2 Physical View >> Storage Pool tab
VOLUMES Hot link to Physical View >> Volumes tab
Switch to Classic Web UI Switch to using the classic Web-Mgt interface button
