The Ethernet ports on each MRC have the standard green and amber network activity LEDs.

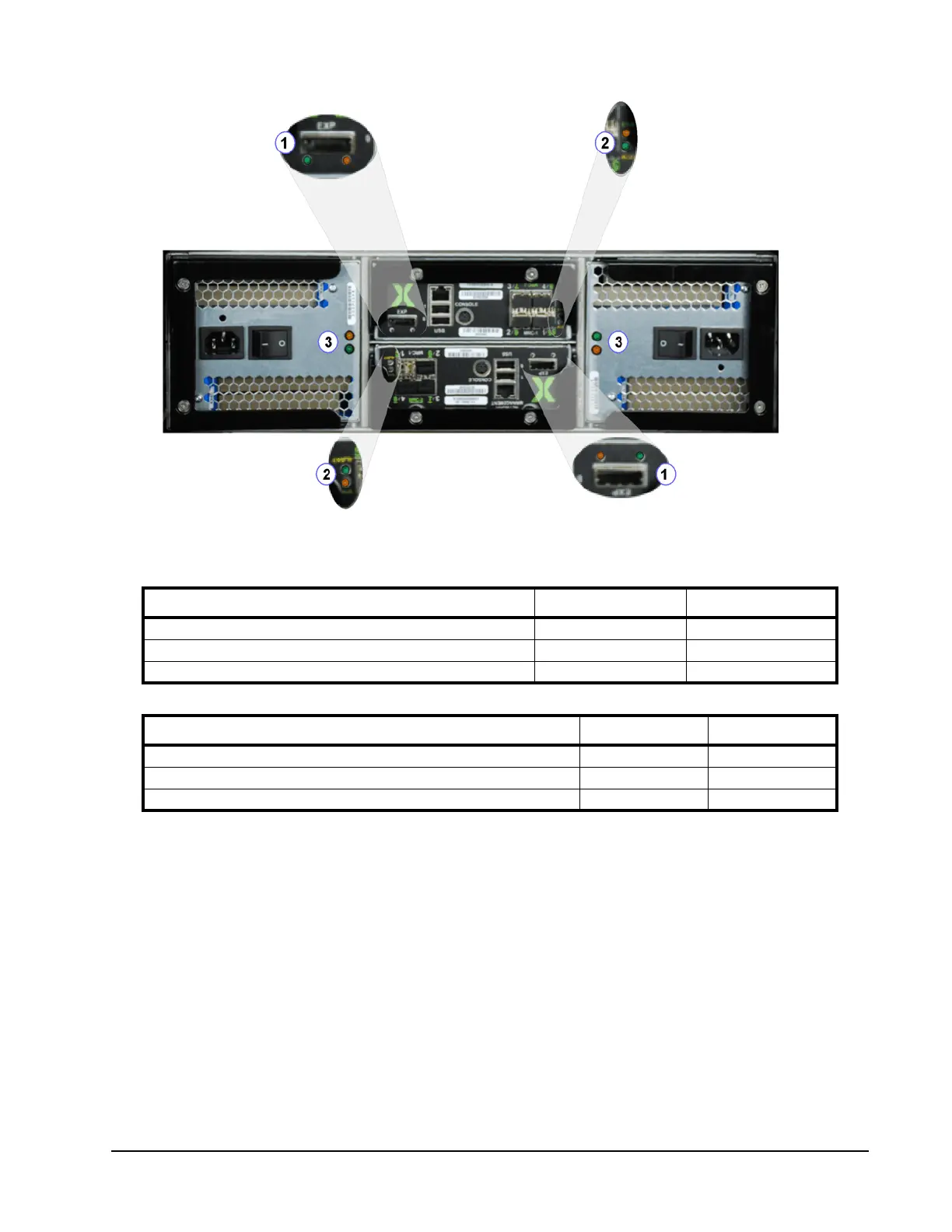

Figure 74. ISE Back View—LEDs
The various LED states for the MRCs, the supercapacitor units, and the power supplies are described in Table
25. The LEDs on the DataPacs convey additional information on DataPac activity as shown in Table 26.
Table 25: MRC, supercapacitor, Power Supply LEDs
Table 26: DataPac LEDs
ISE System Monitoring
The following section describes monitoring ISE systems from the Web interfaces.
Condition Green Amber
No power applied OFF OFF
Normal operation with no failure conditions ON OFF
Component failed and/or can be removed OFF ON
Condition Green Amber
No power applied and normal state with no DataPac activity occurring OFF OFF
Normal state with drive activity occurring Flashing OFF
Component failed and/or can be removed OFF or flashing ON
