12. (Figure 6): Continue to pull the Video Cable
through the hole after releasing it from the cable
guides.
13. (Figure 7): Disconnect A5P2 from the Low
Voltage Power Supply and release the harness
from the cable clamps.
14. (Figure 8): Disconnect the Ground Wire and
release the harness from the cable clamps.
Full the cable up to the level
of the Image Module
Release the
cable

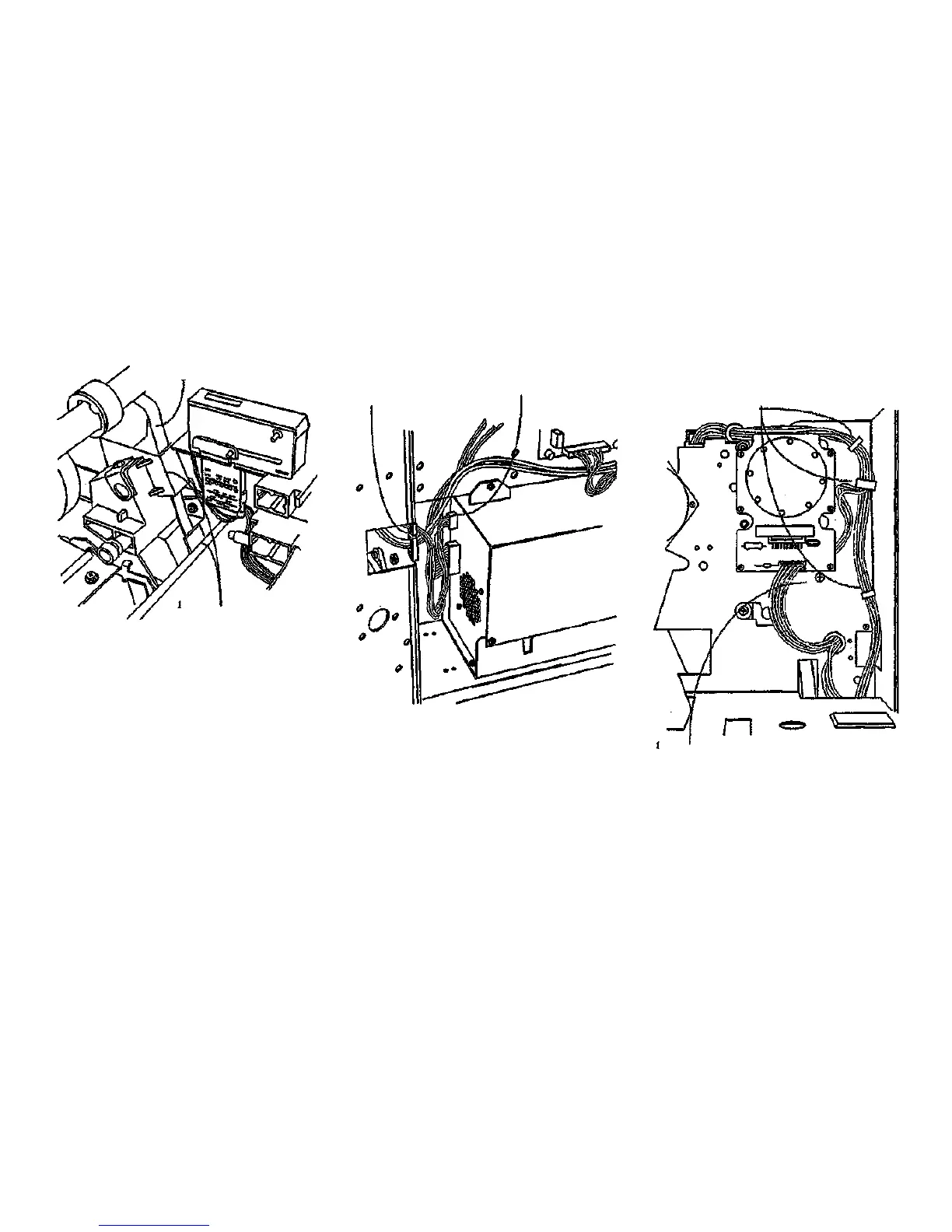

Figure 6. Preparing the Video Cable
Release the harness
from the cable
clamps
1
Disconnect A5P2
R007K
Figure 7. Preparing the Harness for Removal
Release the harness
from the cable
clamps
Remove the screw to
disconnect the Ground Wire
Figure 8. Preparing the Harness for Removal
REP 9.20
1/98
4-80
8830
2
2
2
R003
To Next Page
