NOTE: Observe the way that the spring rests on the
frame, underneath the cable clamp. This is how the
reassembled parts must fit.
15. (Figure 9): Complete the removal preparation
on the front area of the Image Module Assembly.
Remove the screw and
the cable clamp
Spring
1
Remove the bolt
from the end of the
shaft
Pull the harness up to the
level of the Image Module
Top Cover Support
Bracket
Remove the two E-
rings

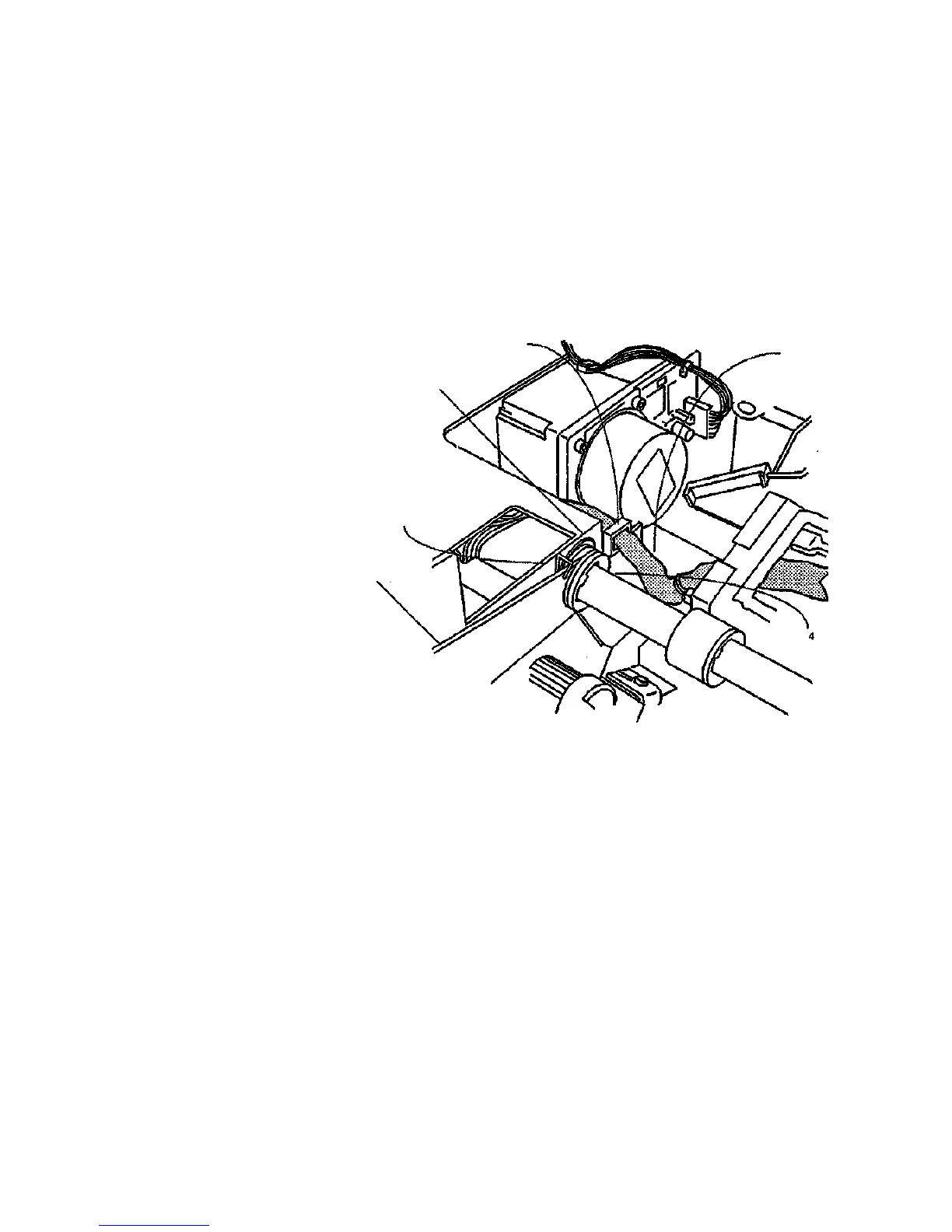

Figure 9. Preparing to Remove the Image Module Assembly (View looking at the
Front from the Right Side)
1/98
4.81
REP 9.20
2
3
R004K
To Next Page
