Xerox 8830 Service Manual

16. Remove the bottle of Developer Material
from the Supply Kit.

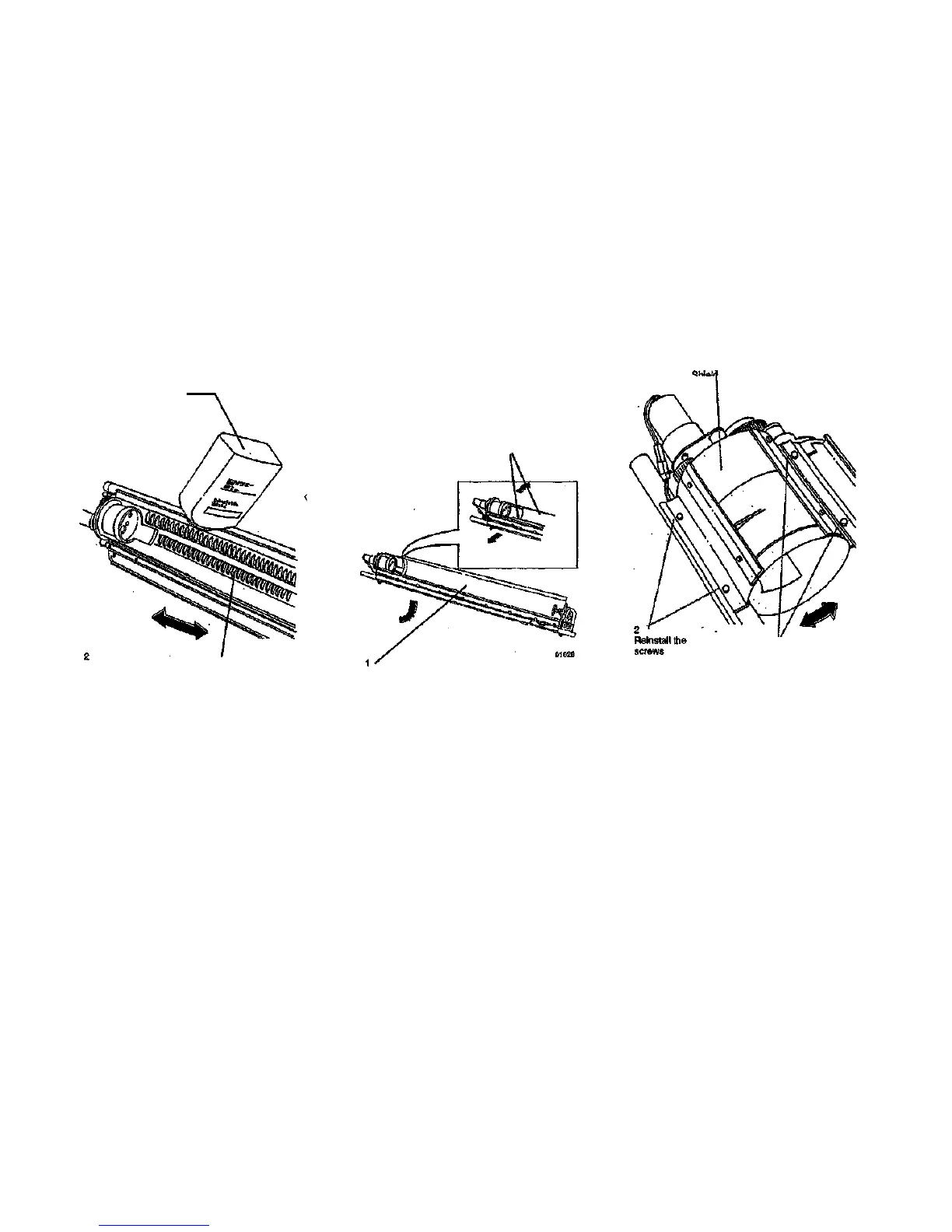

17. (Figure 10): install the Developer Material
evenly along the entire length of the augers.
Install the Developer
Material
Record the batch number
of the Developer Material
on the Printer Log
Augers
01627B
18. (Figure 11): Reinstall the Sump Shield, rear
edge first.
Reinstall the edges of the
shield under the edge on
the housing
Position the Sump Shield
Figure 11. Reinstalling the Sump Shield
19. (Figure 12): Reinstall the Top Shield, rear
edge first.
Reinstall
the Top
3 R1731
Tighten the
screws
Figure 12. Reinstalling the Top Shield
Figure 10. Installing the Developer Material
8830
1/98
6-19
Installation
