23. (Figure 16): Complete the Toner Cartridge
installation.
Remove the tape
27. (Figure 17): Prepare to level the Printer.
Rotate the leveling bolts (located inside the
front and rear doors) fully counterclockwise.
2
Close the
Cover
28. (Figure 18): Check the level of the Printer.
NOTE: To ensure that the Printer frame is not
twisted, use a level to perform the side-to-side
level check on both end frames.
NOTE: Adjust the end that is farthest out of level
first.
Repeat the side-to-side
level check at the other
end of the Printer
Uppercov
Rock the Toner Cartridge
back and forth to ensure
correct engagement of
cartridge to motor

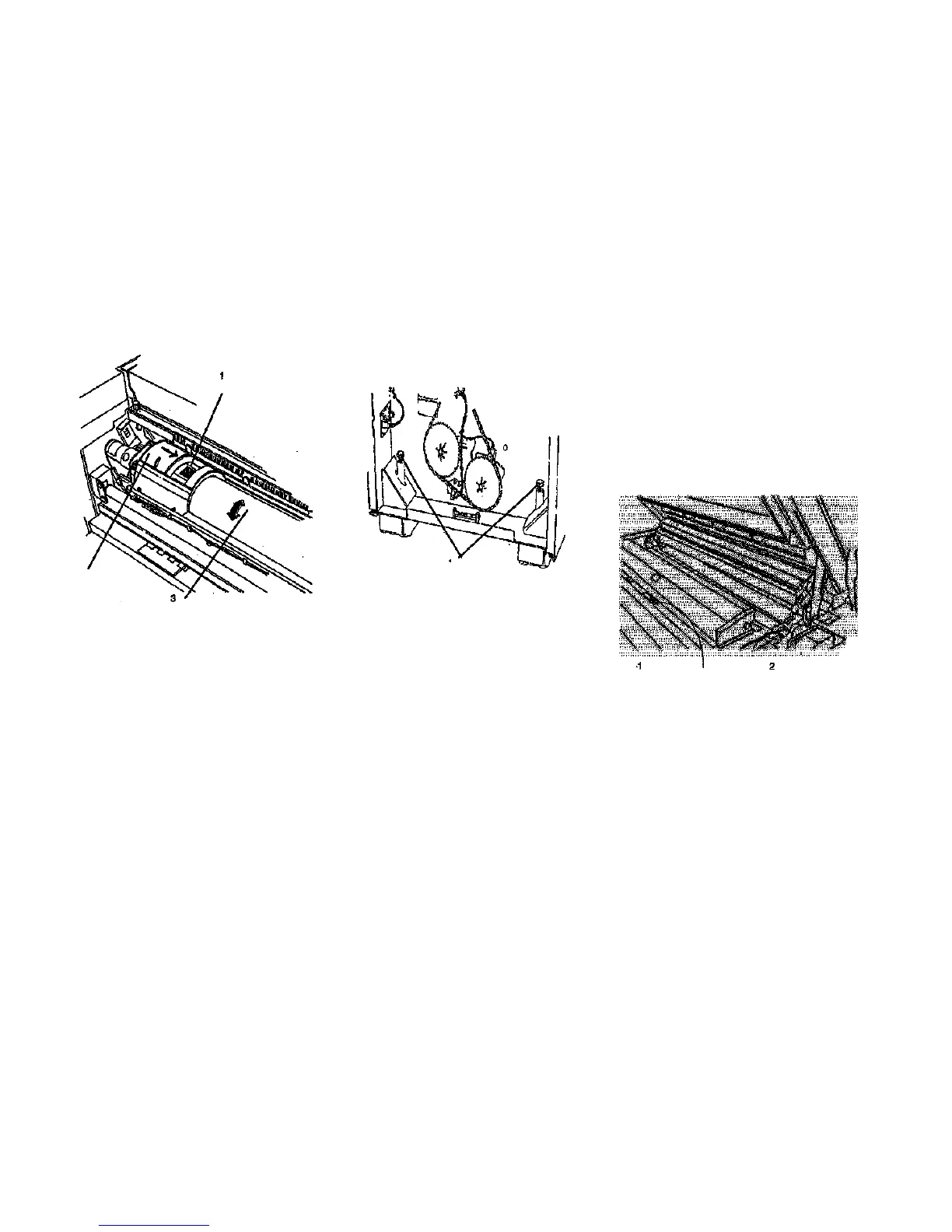

Figure 16. Completing the Toner
Cartridge Installation
24. Close the Developer Module Cover.
25. Raise the Printer Top Cover.
26. Raise and hold the Developer Module Cover
while reinstalling the Developer Module Side
Cover.
Rotate bolts fully
counterclockwise
01731
Figure 17. Preparing to Level the Printer
Place the Level as
shown and check the
front-to-rear level of the
Printer
R3019
Check the side-to-side
level at base of Printer
Figure 18. Checking the Level of Printer
8830
1/98
6-21
Installation
