Xerox 8830 Service Manual

REP 4.1.4 Static Eliminator
Parts List on 1.2
Removal
1. (Figure 1): Remove the Static Eliminator.
B
Remove the Static
Eliminator
Mounting Bracket
A
Remove the top
three mount
screws, and loosen
the bottom three
mount screws

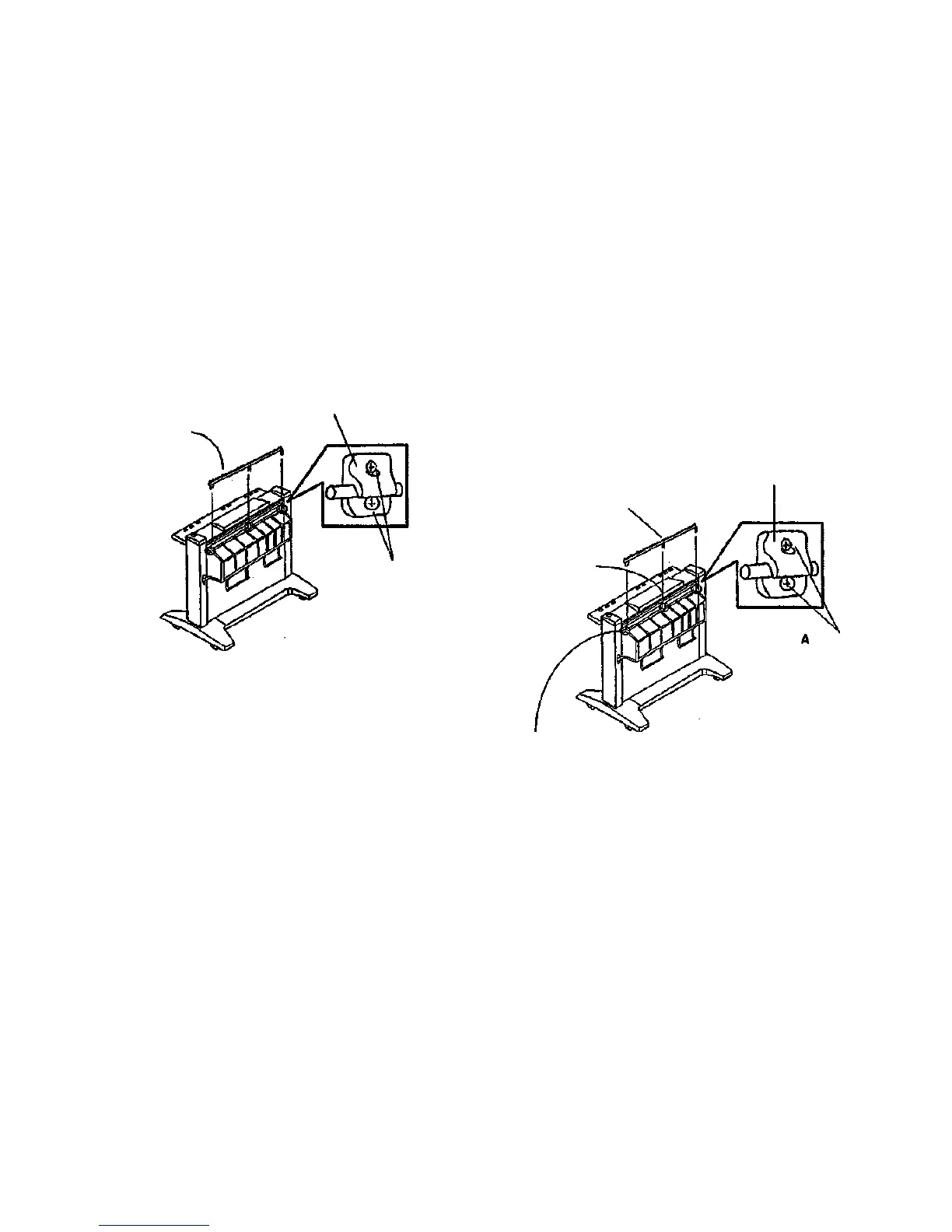

Figure 1 Removing the Static Eliminator
Replacement
CAUTION
Ensure that the Static Eliminator is positioned Hush against the top mounting bracket prior to
tightening the mounting screws down, In order to eliminate bending the Static Eliminator.
NOTE: You should notice Increased resistance while Installing the center bracket screw over
the Static Eliminator. This resistance establishes the ground (or the Static Eliminator.
1. (Figure 2): Replace the Static Eliminator.
C
Insert the Static
Eliminator flush up
to the top of the
center mount
bracket. Install only
the top mounting
screw at this time.
B
Position Static Eliminator
directly over the screw
holes opened in step A.
Mount bracket
D E
Install the left and right top Re-tighten the lower
mount screws. screws on the mount
brackets.
Remove the top mount
screw from each of the
three top mount brack-
ets. Loosen the lower
screws on these
brackets.
Figure 2 Replacing the Static Eliminator
8830 DDS
3/98
4-6
repairs/adjustments
REP 4.1.4
