REP 4.1.5 Control Panel Cable
Parts List on 1.2
Removal
WARNING
Switch off the scanner power and disconnect the power cord.
CAUTION
Certain components in the scanner are
susceptible to damage from electrostatic
discharge. Observe all ESD procedures to
avoid component damage.

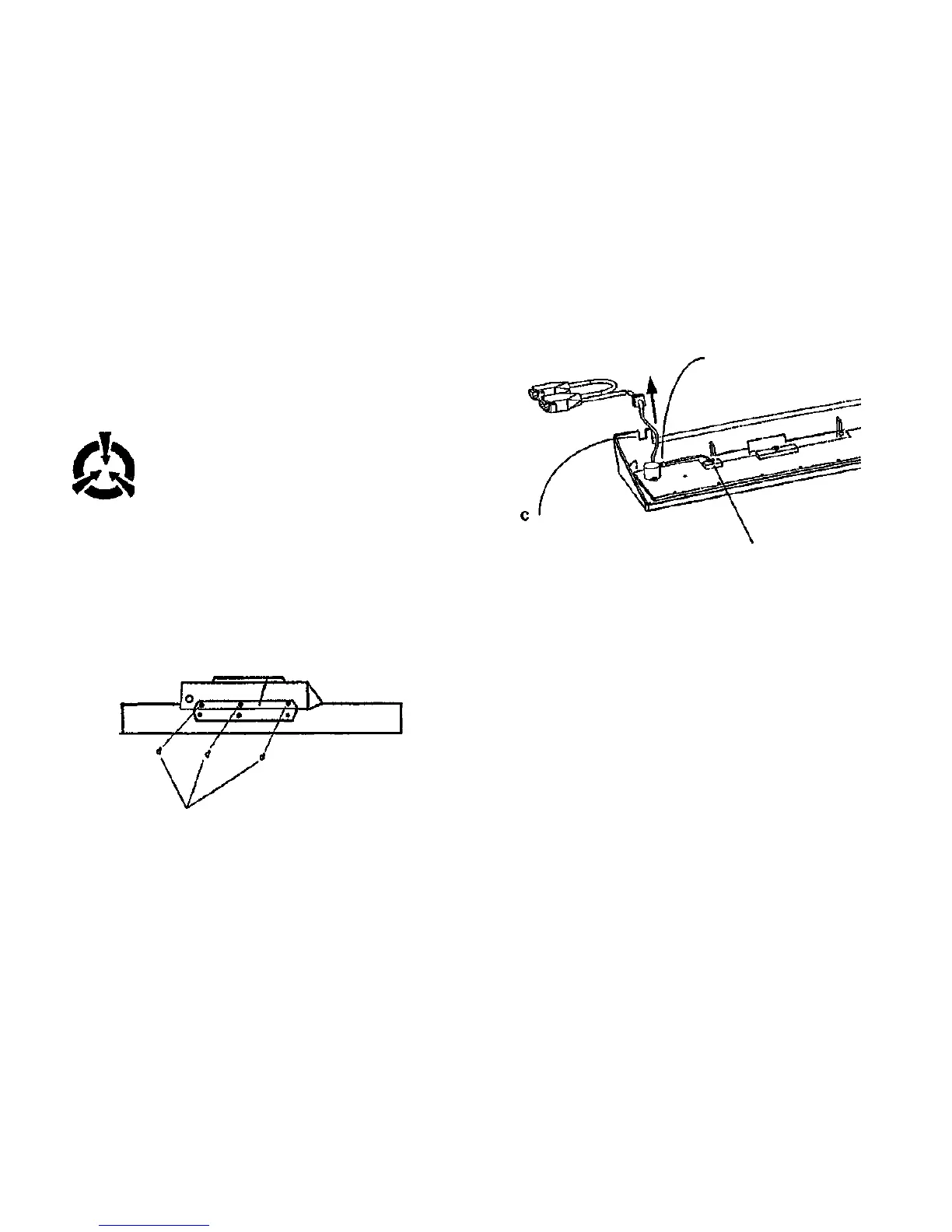

1. (Figura 1}: Remove the three upper screws on the back of the scanner Control Panel
Mounting plata.
3. Placa the Control Panel upside down on an ESD mat.
4. (Figura 2): Remove the Control Panel Interface Cable from the Control Panel.
B
Cut cable tie located on
inner wall of Control
Panel housing.
Slide cable off of
grooved mount on
rear of Control Panel
housing.
A
Disconnect J1
Figura 2 Removal of the Control Panel Cable
Mounting plate
Remove three mounting plata
screws
Figura 1 Location of Control Panel mounting plate screws
2. Remove the Control Panel from the 7356 scanner
wart1 .tif
repairs/adjustments
REP 4.1.5
3/98
4-6
8030 DDS
