April 2010
4-33
Phaser 3635MFP/WorkCentre 3550
REP 10.6
Repairs and Adjustments

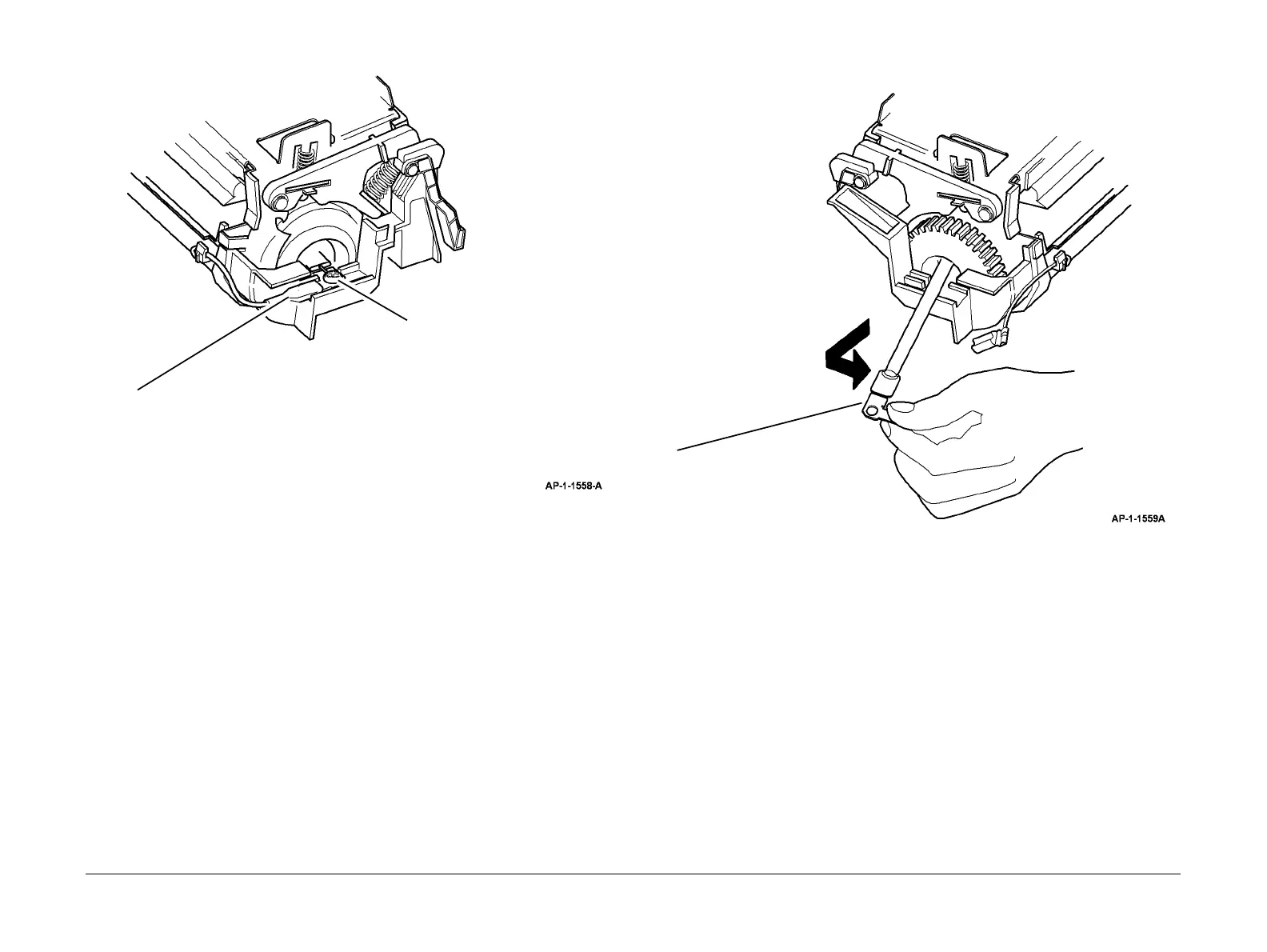

Figure 2 Left harness disconnection
4. Carefully remove the heat lamp from the fuser assembly by withdrawing it through the
right end of the fuser,
Figure 3.
Figure 3 Heat lamp removal
Replacement
1. Replacement is the reverse of the removal procedure.
1
Disconnect the harness at the left end.
2
Remove the fixing screw.
Heat lamp
To Next Page
