April 2010
4-50
Phaser 3635MFP/WorkCentre 3550
ADJ 8.1
Repairs and Adjustments
6. Select Read/Write. Enter a new value as follows:
• To increase the lead edge registration (move the ABC line away from the paper
edg)e, enter a value larger than the current value.
• To decrease the lead edge registration (move the ABC line toward the paper edg)e,
enter a value smaller than the current value.
NOTE: A change of 13 will change the registration by approximately 6mm (0.24
inch)
7. Save the adjustment.
a. Select Save.
b. Select OK.
8. Prepare to check the adjustment.
a. Select Close.
b. Select Diagnostic Routines.
c. Select Other Routines.
9. Perform again the 3635 Checkout.
3550 Checkout
NOTE: Both the Check and the Adjustment use an internal test pattern. Both are performed in
diagnostics.
Check the lead edge registration (top edge of portrait A4 or 8.5x11 inch). Perform the following:
1. Enter diagnostics GP 1 Diagnostics Entry.
2. Select machine diagnostics.
3. Select dC606 Internal Print Test Patterns (3635 Only).
4. Select Test Pattern 7 for simplex lead edge check or select Test Pattern 15 for duplex
lead edge check.
5. Press the O.K button to print the chosen test pattern.
NOTE: Simplex copies exit face down. Duplex copies exit side 1 face down (side 2 face
up).
6. Measure the distance between the lead edge of the paper and the ABC line on the printed
test pattern,
Figure 2.

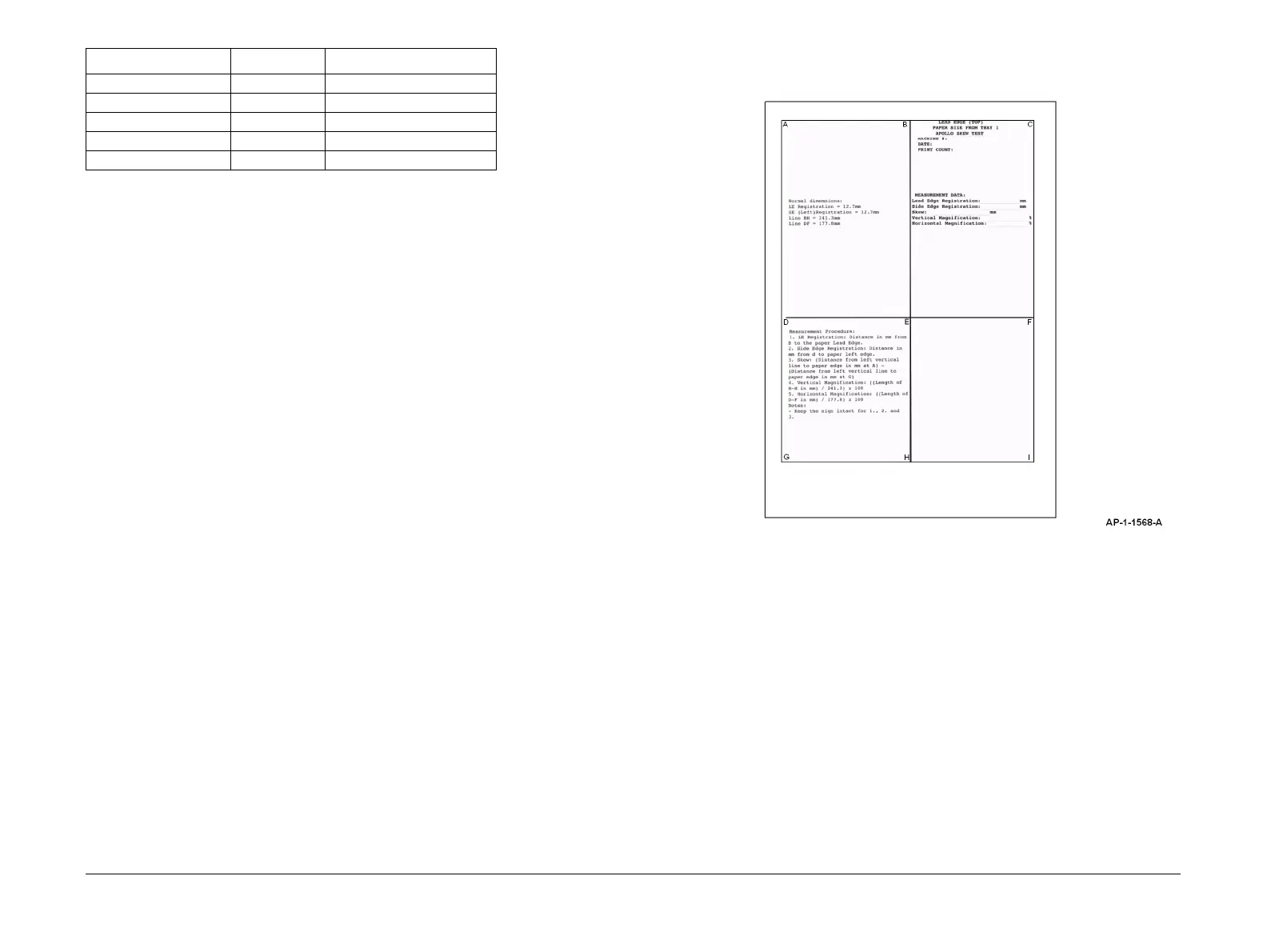

Figure 2 Test pattern 7
7. If the distance measured is not 12.7mm (0.5 inch) +/-3mm (1/8 inch), perform the Adjust-
ment.
Adjustment
1. Press the menu button.
2. Select Diagnostic Mode.
3. Select Machine Diagnostics.
4. Select EDC Mode.
5. Select dC131 NVM Read/Write.
Duplex Side 1 2 07-240
Duplex Side 1 Bypass 07-540
Duplex Side 2 1 07-120
Duplex Side 2 2 07-220
Duplex Side 2 Bypass 07-520
Table 1 NVM location
Mode Tray Location
