April 2010
7-22
Phaser 3635MFP/WorkCentre 3550
PWB Connectors
Wiring Data
Main PWB
Location: PL 3.10 Item 6

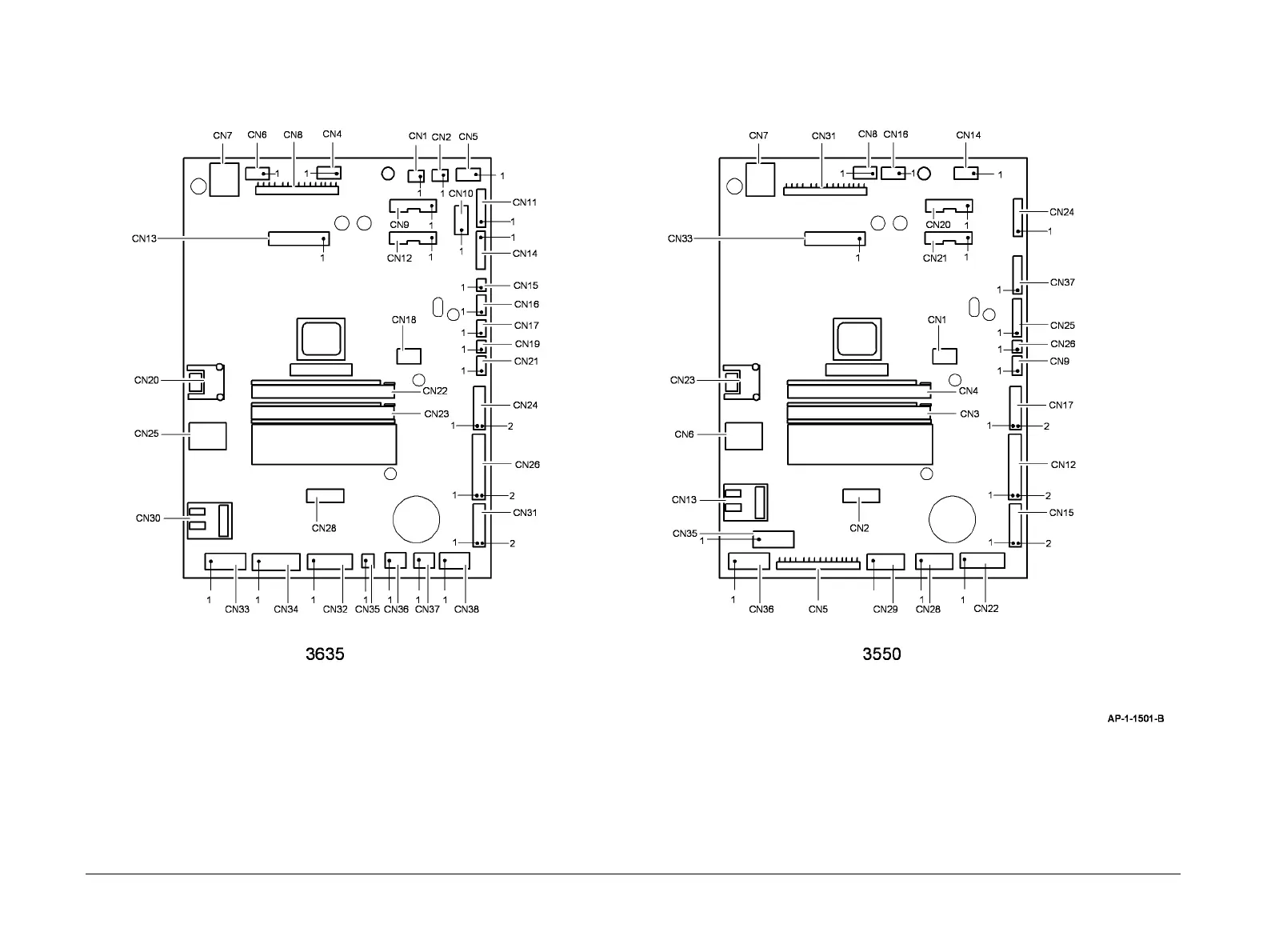

Figure 3 Main PWB
