Xerox WorkCentre 3550 - Page 228

April 2010
7-21
Phaser 3635MFP/WorkCentre 3550
PWB Connectors
Wiring Data
PWB Connectors
Connector Locations
NOTE: Part list references are given with each figure.
1. SMPS, Figure 1.
2. HVPS, Figure 2.
3. Main PWB, Figure 3.
4. Connection PWB, Figure 4.
5. UI PWB, Figure 5.
6. DADF PWB, Figure 6.
7. Tray 2 PWB, Figure 7.

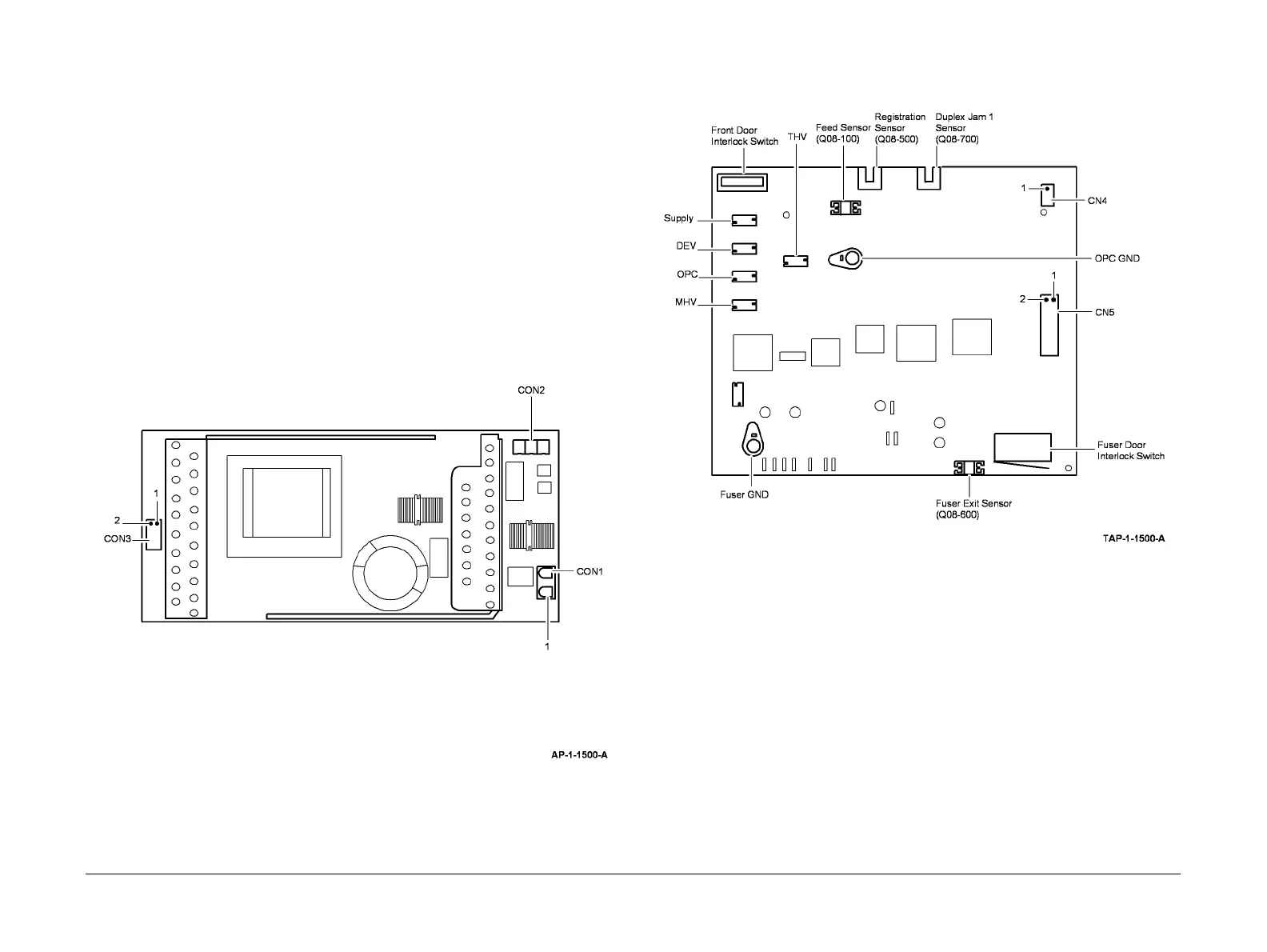

SMPS
Location: PL 1.12 Item 3
Figure 1 SMPS
HVPS
Location: PL 1.10 Item 3
Figure 2 HVPS
