Phaser 3635MFP/WorkCentre 3550
REP 2.3
Repairs and Adjustments
2. Remove the UI assembly, Figure 2.

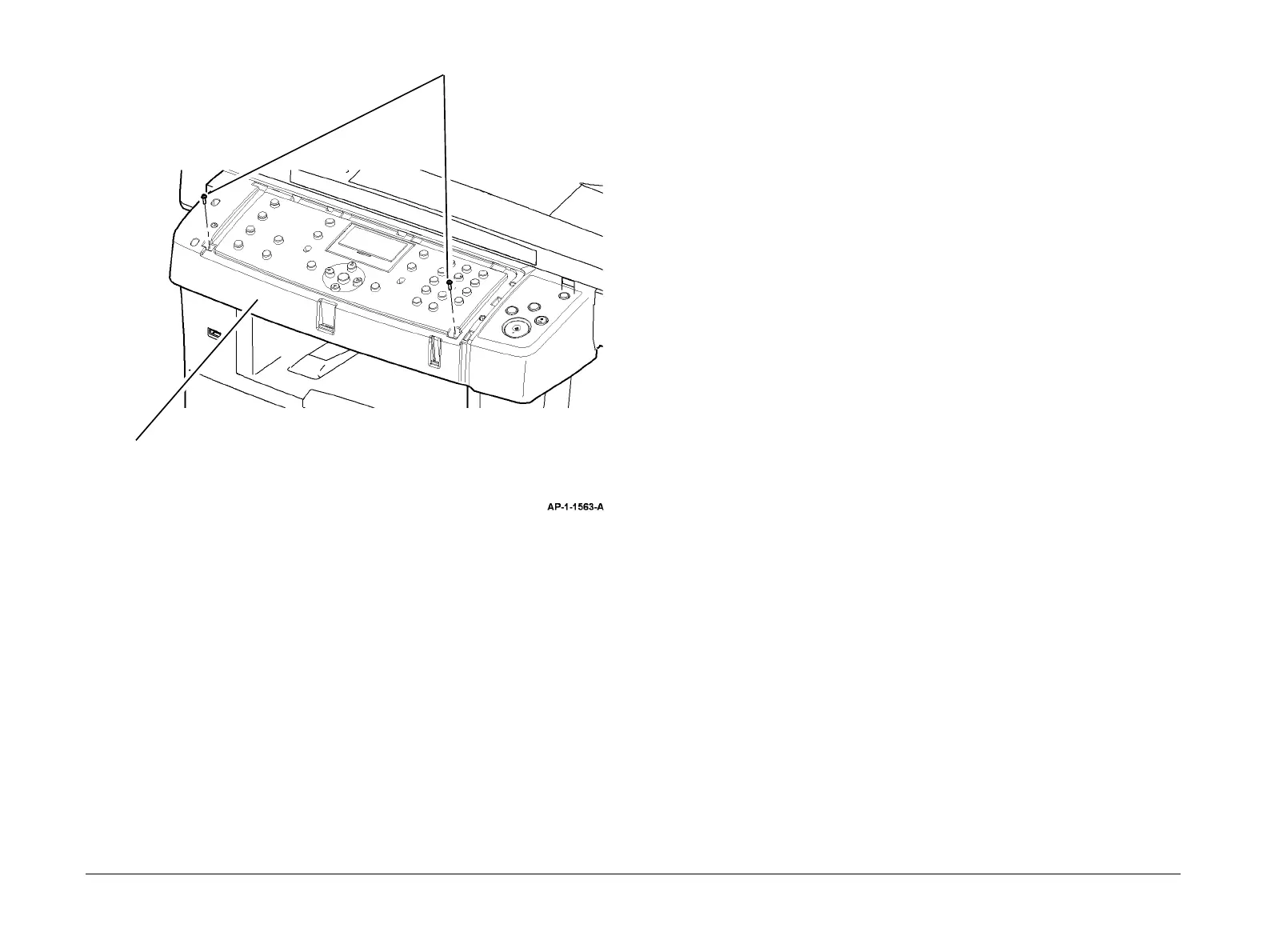

Figure 2 UI assembly removal
Replacement
1. Replacement is the reverse of the removal procedure.
Remove 2 screws.
2
Lift off the UI assembly.
3
Disconnect CN1 from the UI PWB.
To Next Page
