Xinje XD Series User Manual

101
OR＝
K100 C0
Y0
DOR＞
K68899D10
M50
M4
X0
X2
S1·
S2·
 When the source data’s highest bit (16 bits: b15,32 bits: b31) is 1, it is seemed to negative
number.
 The comparison of32 bits counter should use32 bits instruction. If using16 bits instruction,
the program or operation will be error.

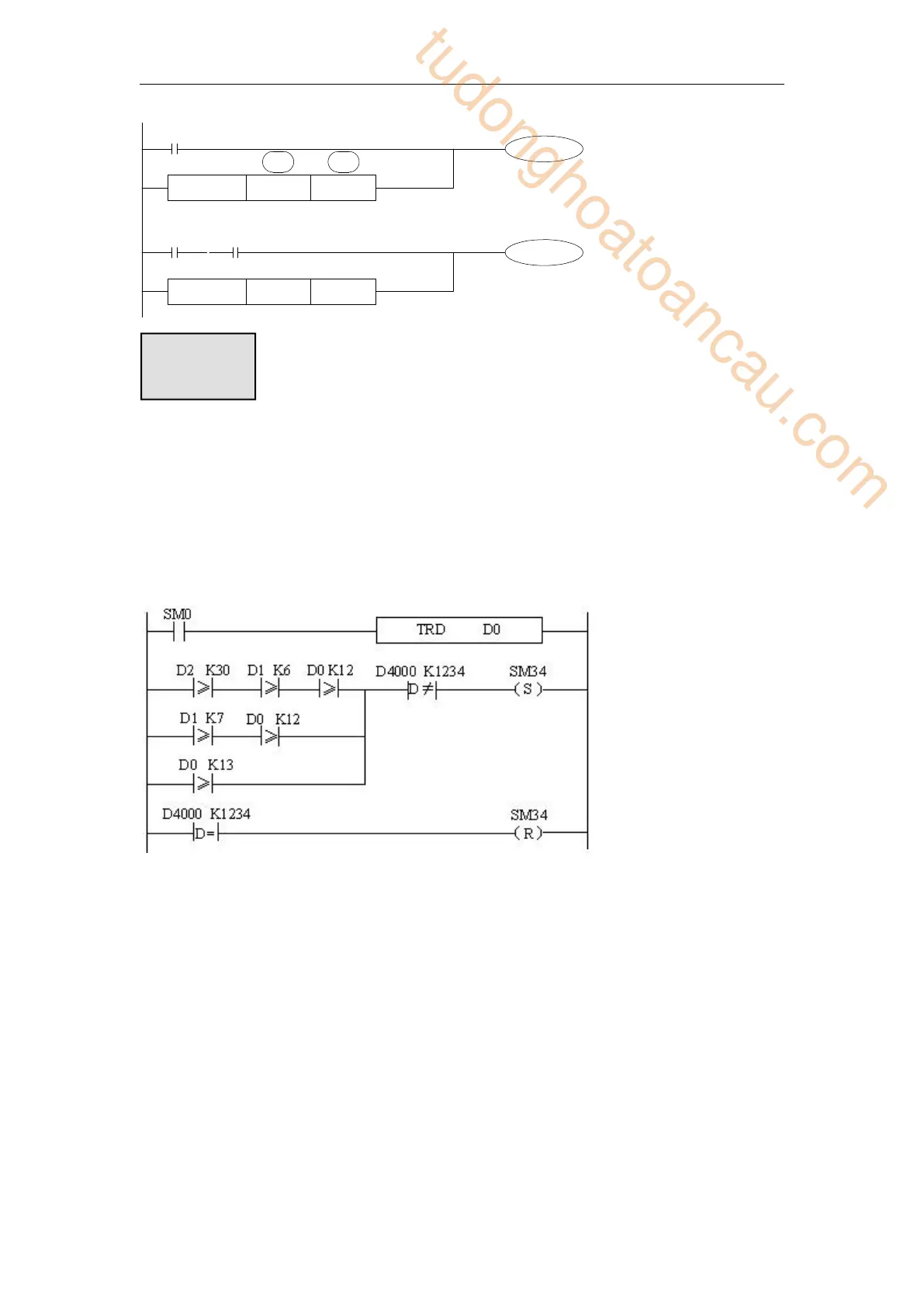

Example: forbid the outputs when it reaches the certain time. In the below program, when the
date is June 30
th
, 2012, all the outputs will be disabled. The password 1234 is stored in
(D4000, D4001). When the password is correct, all the outputs are enabled.
LD SM0 //SM0 is always ON coil
TRD D0 //read the RTC (real time clock) value and store in D0~D6
LD>= D2 K30 //RTC date ≥30
AND>= D1 K6 //RTC month ≥6
AND>= D0 K12 //RTC year ≥12
LD>= D1 K7 //or RTC month ≥ 7
AND>= D0 K12 //RTC year ≥ 12
ORB //or
OR>= D0 K13 //RTC year ≥ 13
DAND<> D4000 K1234 //and password ≠1234
SET SM34 //set ON M34, all the outputs are disabled
DLD= D4000 K1234 //password=1234, correct password
RST SM34 //reset M34, all the outputs are enabled
Note Items
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
