Xinje XD Series User Manual

71
X0
PLS M0
M0
SET Y0
X1
PLF M1
M1
RST Y0

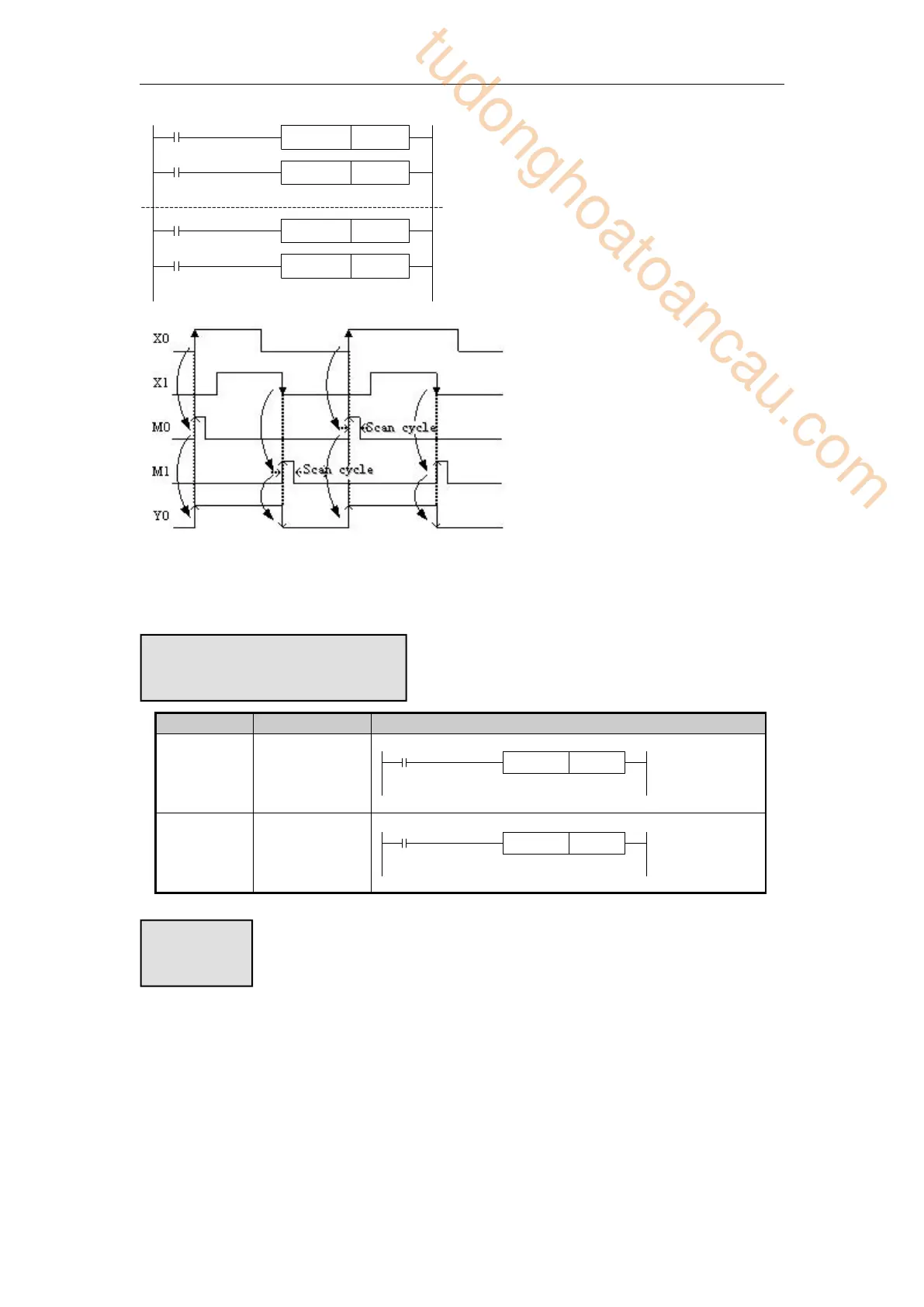

3-12 [SET], [RST]
In the following program, Y0 will keep ON even X10 turns OFF after turning ON. Y0 will
not ON even X11 turns OFF after turning ON. This is the same to S and M.
SET and RST can be used for many times for the same soft component. Any order is allowed,
but the last one is effective.
RST can be used to reset the counter, timer and contactor.
When using SET or RST, it cannot use the same soft component with OUT.
Mnemonic
Function
Format and Devices
SET
(Set)
Set a bit
device
permanently
ON
Operand: X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
RST
(Reset)
Reset a bit
device
permanently
OFF
Operand: X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
LD
X0
PLS
M0
LD
M0
SET
Y0
----------------------
LD
X1
PLF
M1
LD
M1
RST
Y0
Statements
Mnemonic and Function
SET Y0
RST Y0
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
