Xinje XD Series User Manual

74

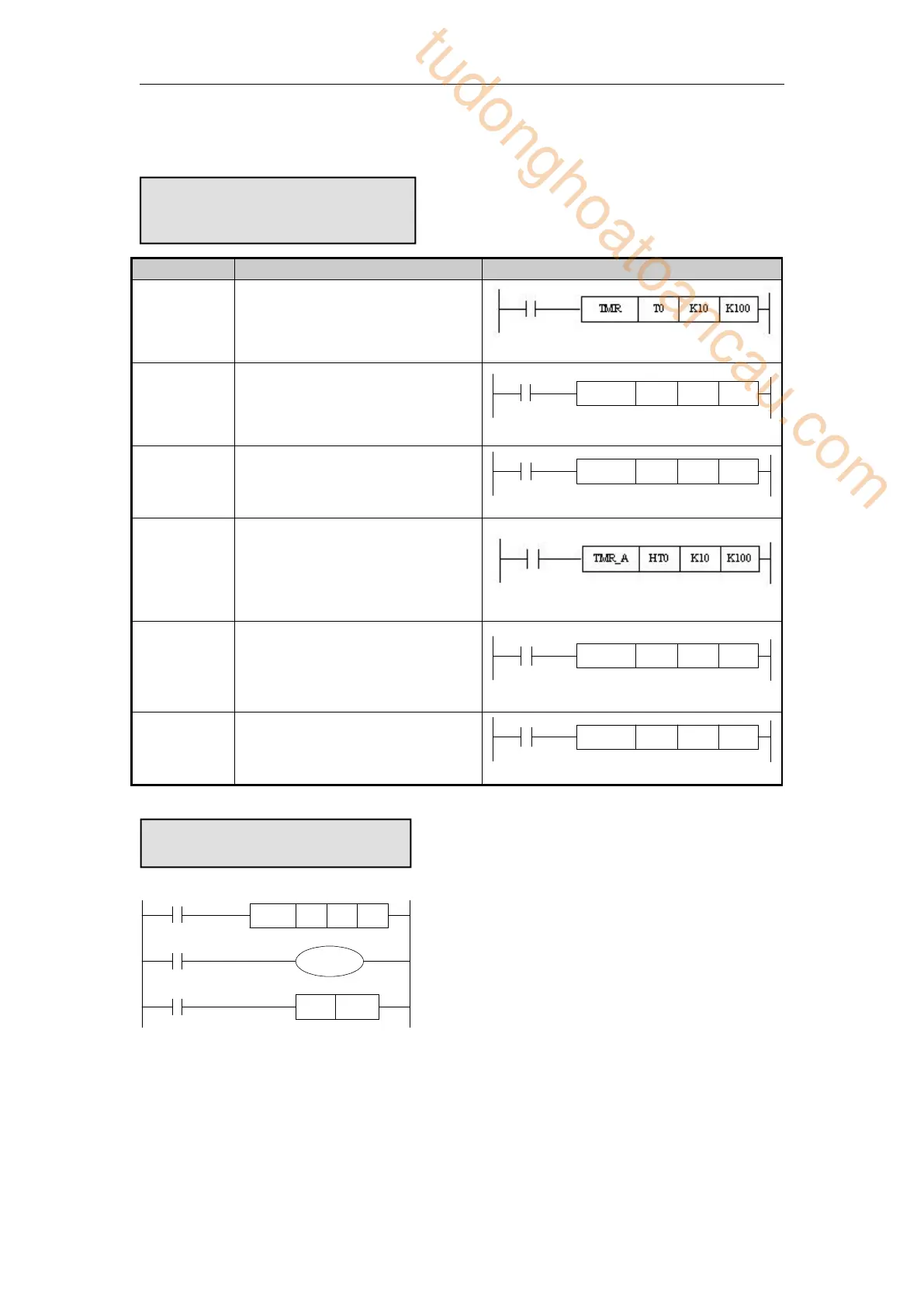

3-14 [TMR], [TMR_A] for timers
Mnemonic
Function
Format and devices
TMR
output
Non power-off retentive 100ms
timer, the drive of coil
operand: K, D
TMR
output
Non power-off retentive 10ms
timer, the drive of coil
TMR T0 K10 K10
operand: K, D
TMR
output
Non power-off retentive 1ms
timer, the drive of coil
TMR T0 K10 K1
operand: K, D
TMR_A
output
Power-off retentive 100ms timer,
the drive of coil
operand: K, D
TMR_A
output
Power-off retentive 10ms timer,
the drive of coil
TMR_A HT0 K10 K10
operand: K, D
TMR_A
output
Power-off retentive 1ms timer,
the drive of coil
TMR_A HT0 K10 K1
operand: C, HC, HSC
TMR T0 K10 K10
Y0
RST T0
M0
T0
M1
Power-off retentive timer will keep the current value and counter coil status when the power
is off.
When M0 is ON, T0 starts to
timing. When T0 reaches K10,
T0 coil is ON. Then T0
continues timing. When M1 is
ON, reset the T0.
Mnemonic and Function
Internal timer programming
