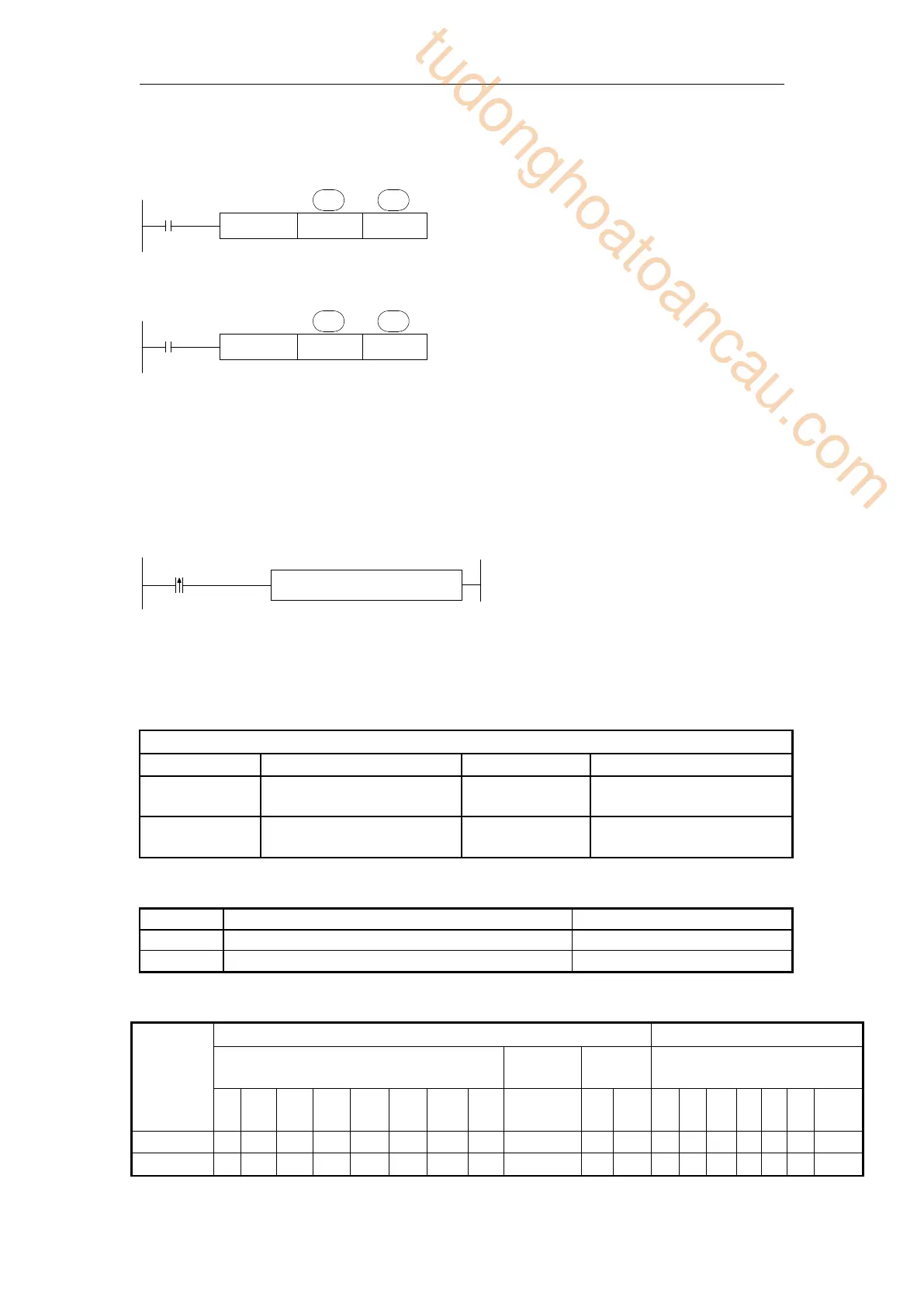

Xinje XD Series User Manual

149
<16 bits instruction>
INT D10 D20
S· D·
X0
<32 bits instruction>
DINT D10 D20
S· D·
X0
 The binary source number is converted into a BIN integer and stored at the destination device.
Abandon the value behind the decimal point.
 The inverse instruction is FLT.
 When the result is 0, the flag bit is ON.
 The result is over below data, the carry flag is ON.
16 bits operation: -32,768~32,767
32 bits operation: -2,147,483,648~2,147,483,647
INT D0 D10
X0
For example, if D0 is floating value 130.2, after executing INT, D10 value is integer 130.
4-8-6 Double - precision floating point to integer[DINTD,QINTD]
1) Summary
floating point to integer [DINTD,QINTD]
32 bits
DINTD
64 bits
QINTD
Execution
condition
Normal ON/OFF/falling
or rising pulse edge
Suitable Models
XDH
、
XLH
Hardware
requirement
Version V3.7.1 or later
Software
requirement
Version V3.7.4a or later
2) Operands
Operands
Function
Data Type
S
Source soft element address
64 bits, BIN
D
Target soft element address
32 bits/64 bits,BIN
3) Suitable soft components
Operands
Word soft elements
Bit soft elements
System
Constant
Module
System
D
FD
TD
CD
DX
DY
DM
DS
K/H
ID
QD
X
Y
M
S
T
C
Dn.m
S
●
●
D
●
(D11,D10) → (D20)
Binary Float BIN integer
Give up the data after the decimal dot
(D11,D10) → (D20,D21)
Binary Float BIN integer
Give up the data after the decimal dot
