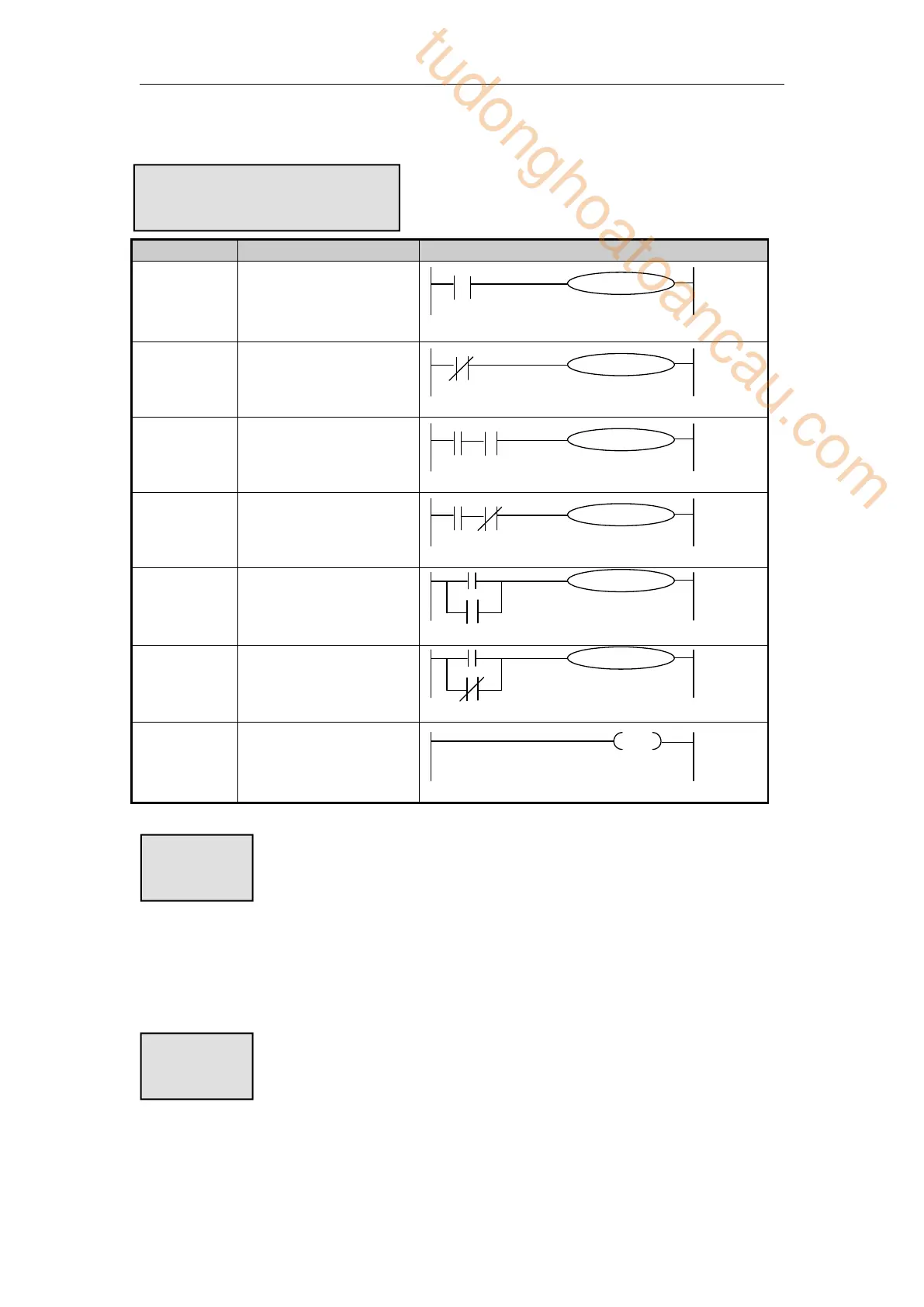

3-6 [LDD] , [LDDI] , [ANDD] , [ANDDI] , [ORD] , [ORDI] , [OUTD]
The function of LDD, ANDD, ORD instructions are similar to LD, AND, OR; LDDI, ANDDI,
ORDI instructions are similar to LDI, ANDI, ORI; but if the operand is X, the LDD, ANDD,
ORD commands read the signal from the terminals directly.
OUTD and OUT are output instructions. OUTD will output immediately when the condition
is satisfied, needn't wait for the next scan cycle.
Mnemonic
Function
Format and Operands
LDD
Read the status from
the contact directly
X0
D
Devices: X
LDDI
Read the normally
closed contact directly
X0
D
Devices: X
ANDD
Read the status from
the contact directly
X0
D
Devices: X
ANDDI
Read the normally
closed contact directly
X0
D
Devices: X
ORD
Read the status from
the contact directly
X0
D
Devices: X
ORDI
Read the normally
closed contact directly
X0
D
Devices: X
OUTD
Output to the contact
directly
Y0
D
Devices: Y
Program
Mnemonic and Function
Statement
