Xinje XD Series User Manual

191

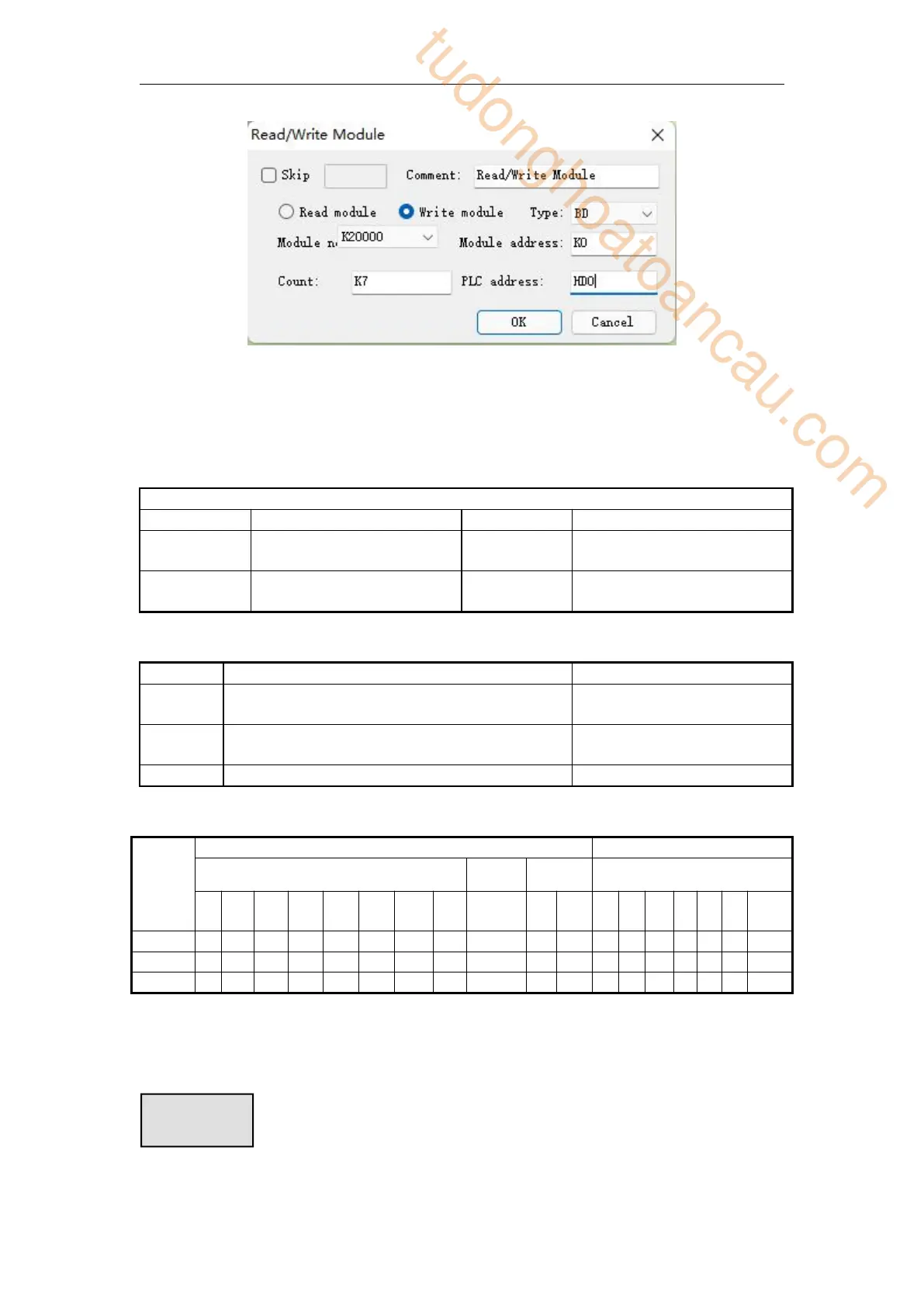

Note: Module number K20000 stands for #1 BD, K20001 stands for #2 BD; Module
addresses are numbered from K0, corresponding to ID20000, ID20001...... ID20006.
4-10-5 Clock data add [TADD]
1) Summary
Clock data add [TADD]
16 bits
TADD
32 bits
-
Execution
condition
Normally ON/OFF,
rising/falling edge
Suitable
Models
XD, XL
Hardware
requirement
Version V3.4.6 (or V3.5.3a)
or later
Software
requirement
Version V3.5.3 or later
2) Operands
Operands
Function
Data Type
S1
Soft element header address of the clock data
(hour, minute, second)
16 bits, BIN
S2
Soft element header address of the clock data
(hour, minute, second)
16 bits, BIN
D
The result address
16 bits, BIN
3) Suitable soft components
Operan
ds
Word soft elements
Bit soft elements
System
Consta
nt
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S1
●
S2
●
D
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.
Description
