Xinje XD Series User Manual

62
Y100
M1203
X0
Y 1
X1
T0
( )
TMR T0 K10 K100

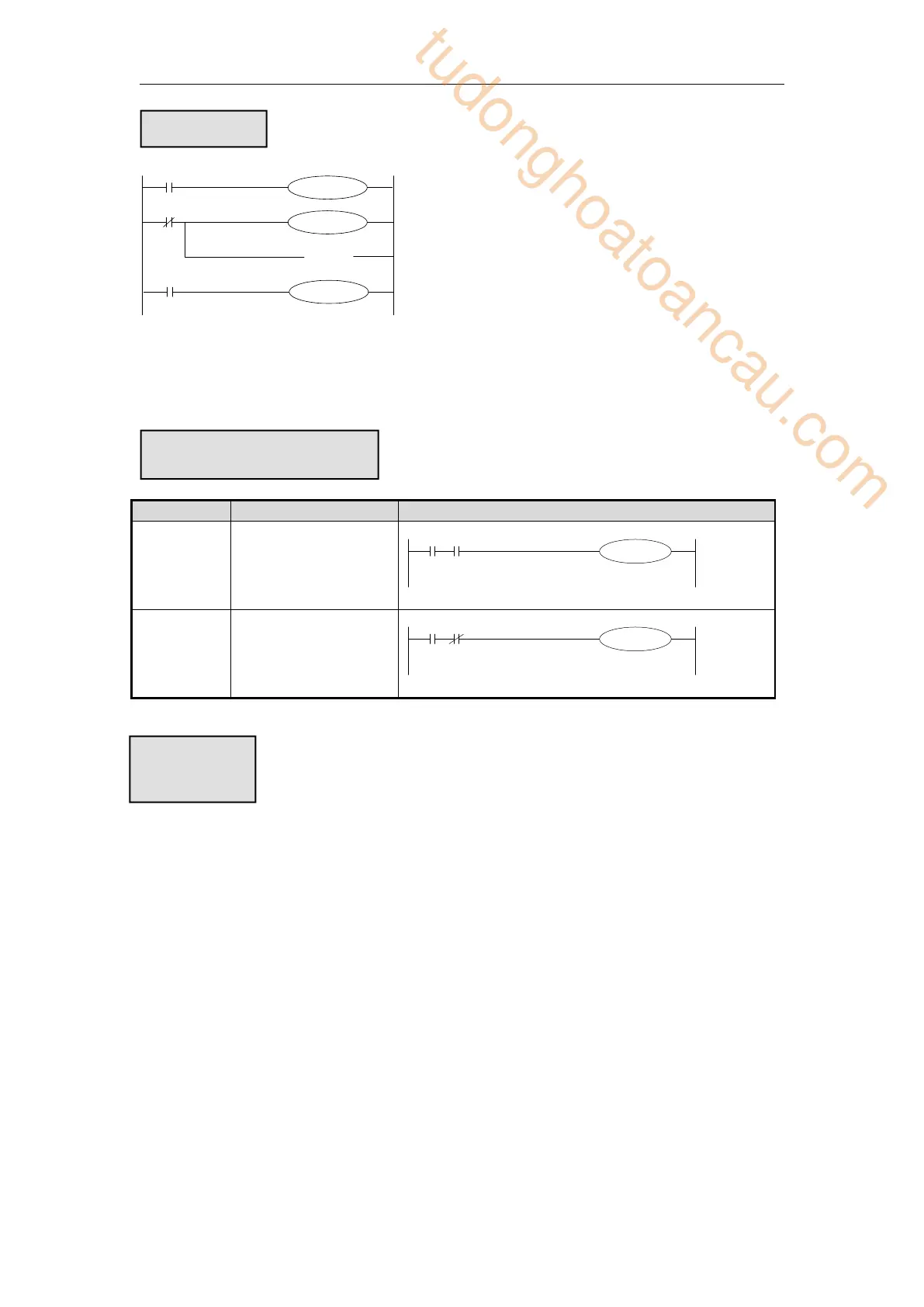

3-3 [AND] , [ANI]
Mnemonic
Function
Format and Operands
AND
(and)
Normal open
contactor in series
M0
Operand: X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
ANI
(and
reverse)
Normal close
contactor in series
M0
Operand: X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
 Use AND and ANI to connect the contactors in series. There is no limit for contactors in
series. They can be used for many times.
 Use OUT instruction through other coil is called “follow-on” output (For an example see
the program below: OUT M2 and OUT Y3). Follow-on outputcanrepeat as long as the
output order is correct. There’s no limit for the serial connected contactors and follow-on
output times.
Program
Statements
Mnemonic and Function
LD
X0
OUT
Y100
LDI
X1
OUT
M1203
TMR
T0
K10 K100
LD
T0
OUT
Y1
