Xinje XD Series User Manual

61
operation of the
instruction
TMR
Non-power-off holding
timer
TMR T0 K10 K100
3-14
TMR_A
Power-off holding timer
TMR_A HT0 K10 K100
3-14
END
Force the current
program scan to end
3-15
GROUP
Group
3-15
GROUPE
Group End
3-16

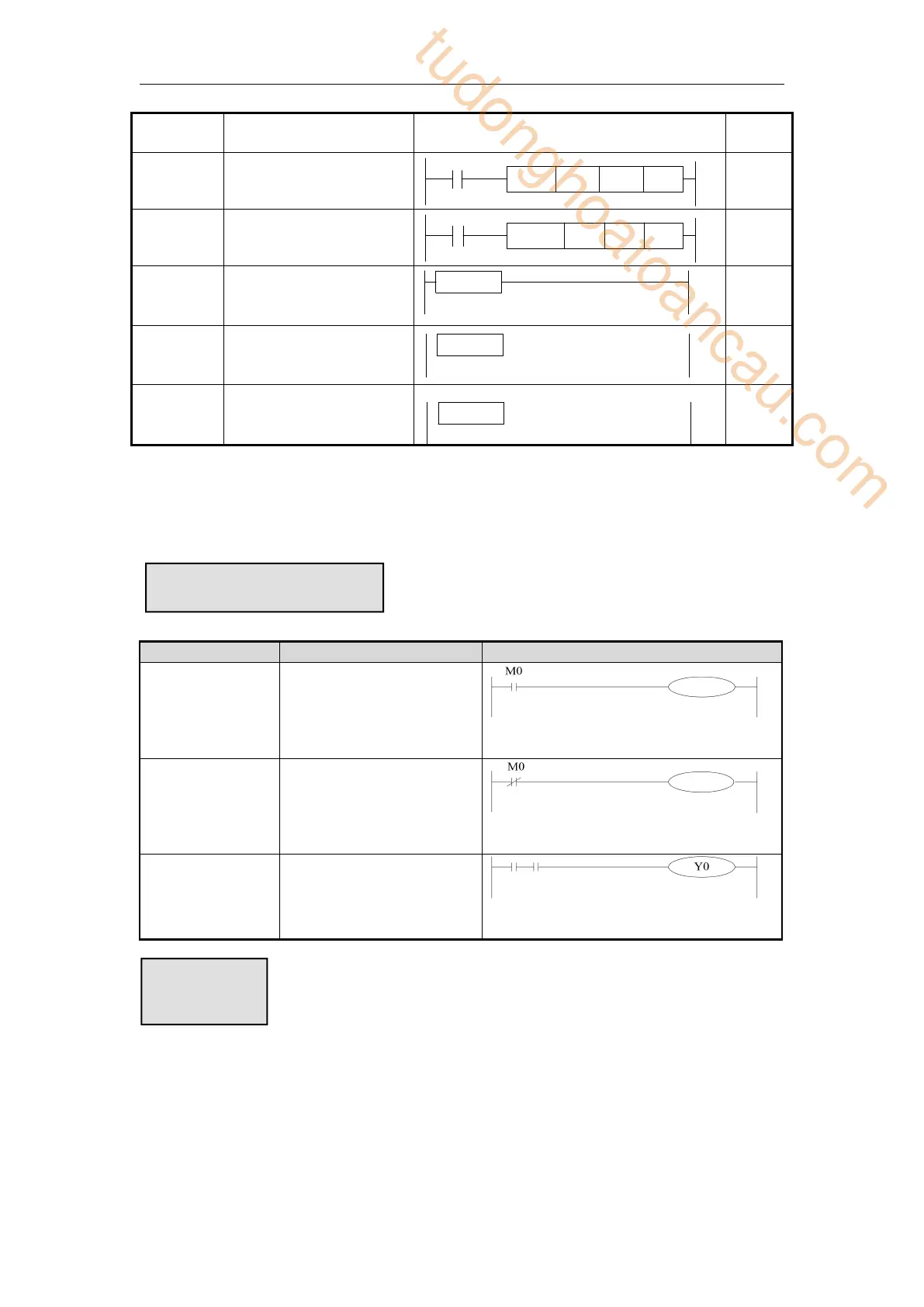

3-2 [LD] , [LDI] , [OUT]
Mnemonic
Function
Format and Operands
LD
(positive)
Initial logic operation
contact type NO
(Normally Open)
Operands:
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
LDI
(negative)
Initial logic operation
contact type NC
(Normally Closed)
Devices:
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
OUT
(OUT)
Final logic operation type
drive coil
Operands:
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
 Connect the LD and LDI instructions directly to the left bus bar. It can work with ANB
and be used at the branch start.
 OUT instruction can drive the output relays, auxiliary relays, status, timers, and counters.
But this instruction can’t be used for the input relays.
Mnemonic and Function
Statement
END
GROUP
GROUPE
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
